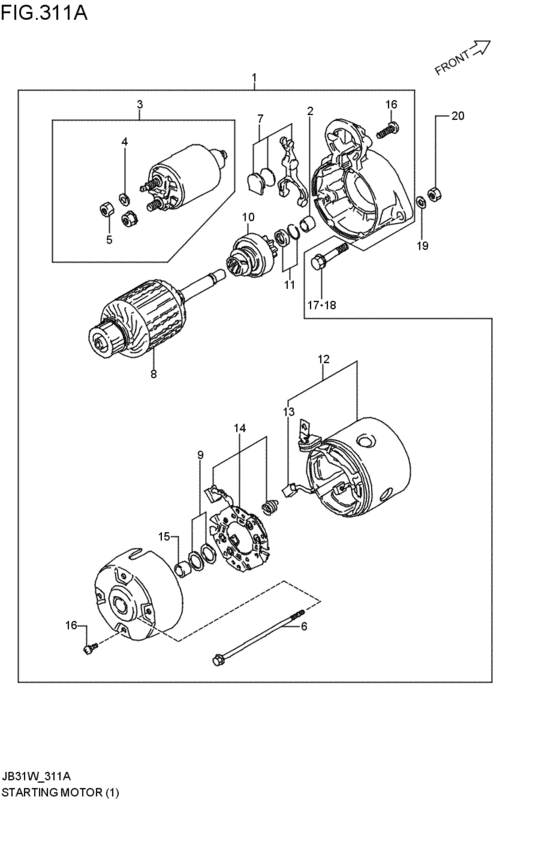

starting motor (5MT; 5MT; 1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-83031-000
Motor assy,starting
5MT; 1993-05-01~1995-09-01 |
31100-83031-000 |
— | ||
| replacements | |||||
|
1
|
1
31100-83031-REM
Starting motor
5MT; 1993-05-01~1995-09-01 |
31100-83031-REM |
— | ||
|
1
|
1
31100-83032-000 MOTOR ASSY,STARTING5MT; 1993-05-01~1995-09-01 |
31100-83032-000 |
US $524.48 |
||
|
2
|
2
31152-79030-000 BEARING,FRONT5MT; 1993-05-01~1995-09-01 |
31152-79030-000 |
from US $5.11 |
||
|
3
|
3
31220-84030-000 SWITCH ASSY5MT; 1993-05-01~1995-09-01 |
31220-84030-000 |
from US $165.11 |
||
|
4
|
4
08321-01083-000
Lock washer
5MT; 1993-05-01~1995-09-01 |
08321-01083-000 |
— | ||
| replacements | |||||
|
4
|
4
08321-0108B-000 WASHER,LOCK5MT; 1993-05-01~1995-09-01 |
08321-0108B-000 |
from US $0.76 |
||
|
4
|
4
08321-0108A-000 WASHER,LOCK5MT; 1993-05-01~1995-09-01 |
08321-0108A-000 |
from US $0.96 |
||
|
5
|
5
08310-00083-000
Nut
5MT; 1993-05-01~1995-09-01 |
08310-00083-000 |
— | ||
| replacements | |||||
|
5
|
5
08310-0008B-000 NUT5MT; 1993-05-01~1995-09-01 |
08310-0008B-000 |
from US $0.96 |
||
|
5
|
5
08310-0008A-000 NUTNut, bead stopper 5MT; 1993-05-01~1995-09-01 |
08310-0008A-000 |
from US $0.76 |
||
|
6
|
6
31261-82130-000 Bolt5MT; 1993-05-01~1995-09-01 |
31261-82130-000 |
from US $1.89 |
||
|
7
|
7
31191-82030-000 LEVER ASSY5MT; 1993-05-01~1995-09-01 |
31191-82030-000 |
from US $6.19 |
||
|
8
|
8
31311-82632-000 ARMATURE5MT; 1993-05-01~1995-09-01 |
31311-82632-000 |
from US $179.37 |
||
|
9
|
9
31361-79030-000 WASHER5MT; 1993-05-01~1995-09-01 |
31361-79030-000 |
from US $5.20 |
||
|
10
|
10
31320-82130-000 CLUTCH ASSY5MT; 1993-05-01~1995-09-01 |
31320-82130-000 |
from US $75.20 |
||
|
11
|
11
31313-80090-000 RING SET5MT; 1993-05-01~1995-09-01 |
31313-80090-000 |
from US $4.25 |
||
|
12
|
12
31110-83030-000
YOKE ASSY
5MT; 1993-05-01~1995-09-01 |
31110-83030-000 |
— | ||
|
13
|
13
31131-80090-000 BRUSH(+)5MT; 1993-05-01~1995-09-01 |
31131-80090-000 |
from US $8.84 |
||
|
14
|
14
31173-79030-000
HOLDER BRUSH
5MT; 1993-05-01~1995-09-01 |
31173-79030-000 |
— | ||
| replacement | |||||
|
14
|
14
31173-82130-000 HOLDER ASSY,BRUSH5MT; 1993-05-01~1995-09-01 |
31173-82130-000 |
from US $43.20 |
||
|
15
|
15
31172-79030-000 BUSH5MT; 1993-05-01~1995-09-01 |
31172-79030-000 |
from US $3.38 |
||
|
16
|
16
31136-79030-000 SCREW ASSY5MT; 1993-05-01~1995-09-01 |
31136-79030-000 |
US $3.38 |
||
| replacement | |||||
|
16
|
16
31175-79030-000 Screw Set5MT; 1993-05-01~1995-09-01 |
31175-79030-000 |
US $8.16 |
||
|
17
|
17
01550-08303-000
Bolt
5MT; 1993-05-01~1995-09-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0830B-000 Bolt5MT; 1993-05-01~1995-09-01 |
01550-0830B-000 |
from US $1.06 |
||
|
17
|
17
01550-0830A-000 BoltBolt, mount oil seal cover 5MT; 1993-05-01~1995-09-01 |
01550-0830A-000 |
from US $1.06 |
||
|
18
|
18
01550-08403-000
Bolt
5MT; 1993-05-01~1995-09-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0840B-000 Bolt5MT; 1993-05-01~1995-09-01 |
01550-0840B-000 |
from US $1.12 |
||
|
18
|
18
01550-0840A-000 Bolt5MT; 1993-05-01~1995-09-01 |
01550-0840A-000 |
from US $1.12 |
||
|
19
|
19
08321-01083-000
Lock washer
5MT; 1993-05-01~1995-09-01 |
08321-01083-000 |
— | ||
| replacements | |||||
|
19
|
19
08321-0108B-000 WASHER,LOCK5MT; 1993-05-01~1995-09-01 |
08321-0108B-000 |
from US $0.76 |
||
|
19
|
19
08321-0108A-000 WASHER,LOCK5MT; 1993-05-01~1995-09-01 |
08321-0108A-000 |
from US $0.96 |
||
|
20
|
20
08310-00083-000
Nut
5MT; 1993-05-01~1995-09-01 |
08310-00083-000 |
— | ||
| replacements | |||||
|
20
|
20
08310-0008B-000 NUT5MT; 1993-05-01~1995-09-01 |
08310-0008B-000 |
from US $0.96 |
||
|
20
|
20
08310-0008A-000 NUTNut, bead stopper 5MT; 1993-05-01~1995-09-01 |
08310-0008A-000 |
from US $0.76 |
||
