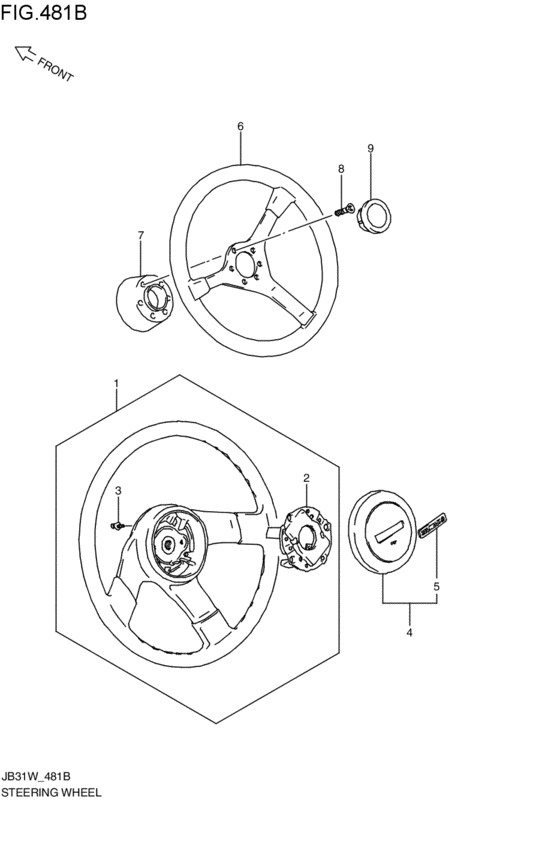

steering wheel (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48110-82C00-5ES
WHEEL ASSY,STEERING(BLACK)
ブラック; STD; 1993-05-01~1995-09-01 |
48110-82C00-5ES |
— | ||
|
2
|
2
48130-70A10-000 PLATE,HORN CONTACTSTD; 1993-05-01~1995-09-01 |
48130-70A10-000 |
from US $54.59 |
||
|
3
|
3
02112-74123-000
Screw
STD; 1993-05-01~1995-09-01 |
02112-74123-000 |
— | ||
| replacement | |||||
|
3
|
3
02112-7412A-000 SCREWSTD; 1993-05-01~1995-09-01 |
02112-7412A-000 |
from US $0.96 |
||
|
4
|
4
48120-82C10-5ES BUTTON,HORNブラック; STD; 1993-05-01~1995-09-01 |
48120-82C10-5ES |
from US $24.62 |
||
|
5
|
5
48131-80030-000 EMBLEM,STEERING WHLSTD; 1993-05-01~1995-09-01 |
48131-80030-000 |
from US $3.69 |
||
| replacement | |||||
|
5
|
5
48131-60A10-000
Emblem
STD; 1993-05-01~1995-09-01 |
48131-60A10-000 |
— | ||
