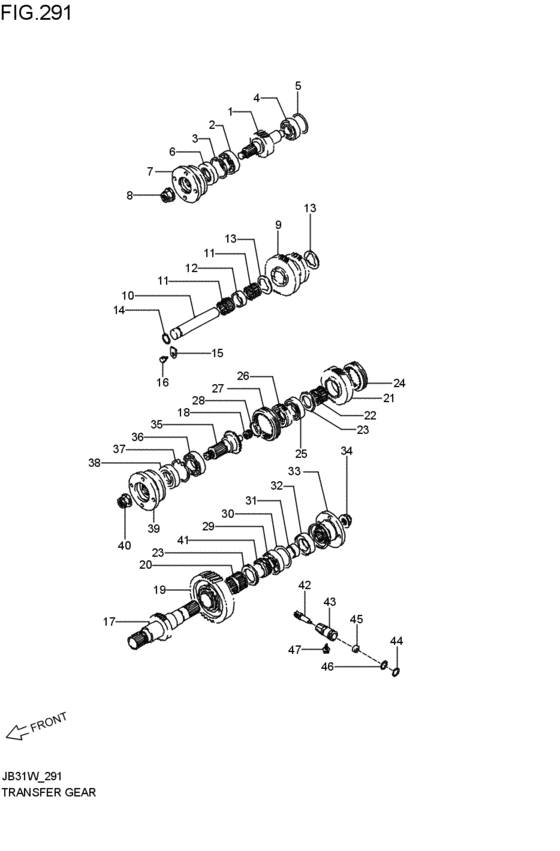

transfer gear (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29111-83050-000 SHAFT,T/F INPUT1993-05-01~1995-09-01 |
29111-83050-000 |
from US $117.90 |
||
|
2
|
2
29981-80051-000 BEARING,T/F OUT RR SHAFT RR1993-05-01~1995-09-01 |
29981-80051-000 |
US $35.20 |
||
|
3
|
3
29992-80050-000 CIRCLIP,T/F INPUT SHAFT BRG1993-05-01~1995-09-01 |
29992-80050-000 |
from US $2.88 |
||
|
4
|
4
29982-80051-000 BEARING,T/F INPUT SHAFT RR1993-05-01~1995-09-01 |
29982-80051-000 |
US $32.57 |
||
|
5
|
5
29117-80050-000 SHIM,T/F INPUT SHAFT T:0.11993-05-01~1995-09-01 |
29117-80050-000 |
from US $1.13 |
||
|
5
|
5
29118-80050-000 SHIM,T/F INPUT SHAFT T:0.31993-05-01~1995-09-01 |
29118-80050-000 |
from US $1.13 |
||
|
6
|
6
29971-83050-000 SEAL,T/F INPUT SHAFT OIL1993-05-01~1995-09-01 |
29971-83050-000 |
from US $7.45 |
||
|
7
|
7
27110-83651-000
Flange,univ joint
1993-05-01~1995-09-01 |
27110-83651-000 |
— | ||
| replacement | |||||
|
7
|
7
27110-83652-000 FLANGE,UNIVERSAL JOINT1993-05-01~1995-09-01 |
27110-83652-000 |
US $96 |
||
|
8
|
8
29951-83050-000 NUT1993-05-01~1995-09-01 |
29951-83050-000 |
from US $7.52 |
||
|
9
|
9
29121-83050-000 GEAR,T/F COUNTER1993-05-01~1995-09-01 |
29121-83050-000 |
from US $106.97 |
||
|
10
|
10
29131-80051-000 SHAFT,T/F COUNTER1993-05-01~1995-09-01 |
29131-80051-000 |
from US $35.20 |
||
|
11
|
11
29983-80050-000 BEARING,T/F CTSHFT1993-05-01~1995-09-01 |
29983-80050-000 |
from US $26.35 |
||
|
12
|
12
29962-80050-000 SPACER,T/F CTSHFT1993-05-01~1995-09-01 |
29962-80050-000 |
US $3.72 |
||
|
13
|
13
29956-80050-000 WASHER,T/F CTSHFT1993-05-01~1995-09-01 |
29956-80050-000 |
from US $4.41 |
||
|
14
|
14
29975-80050-000 O-RING,T/F CTSHFT1993-05-01~1995-09-01 |
29975-80050-000 |
from US $1.51 |
||
|
15
|
15
29136-80050-000 PLATE,T/F COUNTER SHAFT1993-05-01~1995-09-01 |
29136-80050-000 |
from US $0.61 |
||
|
16
|
16
01570-08163-000
Bolt
1993-05-01~1995-09-01 |
01570-08163-000 |
— | ||
| replacement | |||||
|
16
|
16
01570-0816A-000 Bolt1993-05-01~1995-09-01 |
01570-0816A-000 |
from US $1.12 |
||
|
17
|
17
29141-80050-000 SHAFT,T/F OUTPUT RR1993-05-01~1995-09-01 |
29141-80050-000 |
from US $169.60 |
||
|
18
|
18
29986-80050-000 BEARING,T/F OUT SHAFT PILOT1993-05-01~1995-09-01 |
29986-80050-000 |
from US $5.72 |
||
|
19
|
19
29211-83050-000 GEAR,T/F OUTPUT,LOW1993-05-01~1995-09-01 |
29211-83050-000 |
from US $185.89 |
||
|
20
|
20
29984-80050-000 BEARING,T/F OUT LOW GEAR1993-05-01~1995-09-01 |
29984-80050-000 |
from US $20.59 |
||
|
21
|
21
29221-83050-000 GEAR,T/F OUTPUT,HIGH1993-05-01~1995-09-01 |
29221-83050-000 |
from US $126.07 |
||
|
22
|
22
29985-80050-000 BEARING,T/F OUT HIGH GEAR1993-05-01~1995-09-01 |
29985-80050-000 |
from US $22.79 |
||
|
23
|
23
29959-80050-000 WASHER,T/F OUTPUT GEAR1993-05-01~1995-09-01 |
29959-80050-000 |
from US $5.18 |
||
|
24
|
24
29241-80050-000 SLEEVE,REDUCTION CLUTCH1993-05-01~1995-09-01 |
29241-80050-000 |
from US $62.32 |
||
|
25
|
25
29987-80050-000 BEARING,T/F OUT RR SHAFT FR1993-05-01~1995-09-01 |
29987-80050-000 |
from US $30.62 |
||
|
26
|
26
29231-80050-000 HUB,FR DRIVE CLUTCH1993-05-01~1995-09-01 |
29231-80050-000 |
from US $54.92 |
||
|
27
|
27
29241-80050-000 SLEEVE,REDUCTION CLUTCH1993-05-01~1995-09-01 |
29241-80050-000 |
from US $62.32 |
||
|
28
|
28
29911-80050-000 CIRCLIP,FR DR HUB1993-05-01~1995-09-01 |
29911-80050-000 |
from US $0.63 |
||
|
29
|
29
29981-80051-000 BEARING,T/F OUT RR SHAFT RR1993-05-01~1995-09-01 |
29981-80051-000 |
US $35.20 |
||
|
30
|
30
29147-80050-000 SHIM,T/F OUTPUT SHAFT T:0.11993-05-01~1995-09-01 |
29147-80050-000 |
from US $1.17 |
||
|
30
|
30
29148-80050-000 SHIM,T/F OUTPUT SHAFT T:0.31993-05-01~1995-09-01 |
29148-80050-000 |
from US $1.13 |
||
|
31
|
31
29143-80050-000 RETAINER,OUTPUT SHAFT1993-05-01~1995-09-01 |
29143-80050-000 |
from US $9.07 |
||
|
32
|
32
29972-80050-000 SEAL,OIL1993-05-01~1995-09-01 |
29972-80050-000 |
from US $6.62 |
||
|
33
|
33
27110-83660-000
Flange,univ joint
1993-05-01~1995-09-01 |
27110-83660-000 |
— | ||
| replacement | |||||
|
33
|
33
27110-83661-000 FLANGE,UNIVERSAL JOINT1993-05-01~1995-09-01 |
27110-83661-000 |
US $109.60 |
||
|
34
|
34
29951-83050-000 NUT1993-05-01~1995-09-01 |
29951-83050-000 |
from US $7.52 |
||
|
35
|
35
29151-80051-000 SHAFT,T/F OUTPUT FR1993-05-01~1995-09-01 |
29151-80051-000 |
from US $65.66 |
||
|
36
|
36
29981-80051-000 BEARING,T/F OUT RR SHAFT RR1993-05-01~1995-09-01 |
29981-80051-000 |
US $35.20 |
||
|
37
|
37
29992-80050-000 CIRCLIP,T/F INPUT SHAFT BRG1993-05-01~1995-09-01 |
29992-80050-000 |
from US $2.88 |
||
|
38
|
38
29971-83050-000 SEAL,T/F INPUT SHAFT OIL1993-05-01~1995-09-01 |
29971-83050-000 |
from US $7.45 |
||
|
39
|
39
27110-83651-000
Flange,univ joint
1993-05-01~1995-09-01 |
27110-83651-000 |
— | ||
| replacement | |||||
|
39
|
39
27110-83652-000 FLANGE,UNIVERSAL JOINT1993-05-01~1995-09-01 |
27110-83652-000 |
US $96 |
||
|
40
|
40
29951-83050-000 NUT1993-05-01~1995-09-01 |
29951-83050-000 |
from US $7.52 |
||
|
41
|
41
29411-83051-000 GEAR,SPDOM DRIVE1993-05-01~1995-09-01 |
29411-83051-000 |
from US $17.33 |
||
|
42
|
42
29421-80451-000 GEAR,SPDOM DRIVEN1993-05-01~1995-09-01 |
29421-80451-000 |
from US $15.80 |
||
|
43
|
43
29430-80810-000 CASE,SPEEDOMETER DRIVEN GEAR1993-05-01~1995-09-01 |
29430-80810-000 |
from US $5.13 |
||
|
44
|
44
29977-80050-000 O-RING,SPDOM GEAR CASE NO.21993-05-01~1995-09-01 |
29977-80050-000 |
from US $1.35 |
||
|
45
|
45
29973-80050-000 SEAL,SPDOM GEAR CASE OIL1993-05-01~1995-09-01 |
29973-80050-000 |
from US $1.85 |
||
|
46
|
46
09280-19001-000 O RING(D:1.9,ID:18.8)O ring 1993-05-01~1995-09-01 |
09280-19001-000 |
from US $0.59 |
||
|
47
|
47
09128-06032-000 SCREW(6X13.5)1993-05-01~1995-09-01 |
09128-06032-000 |
from US $0.72 |
||
