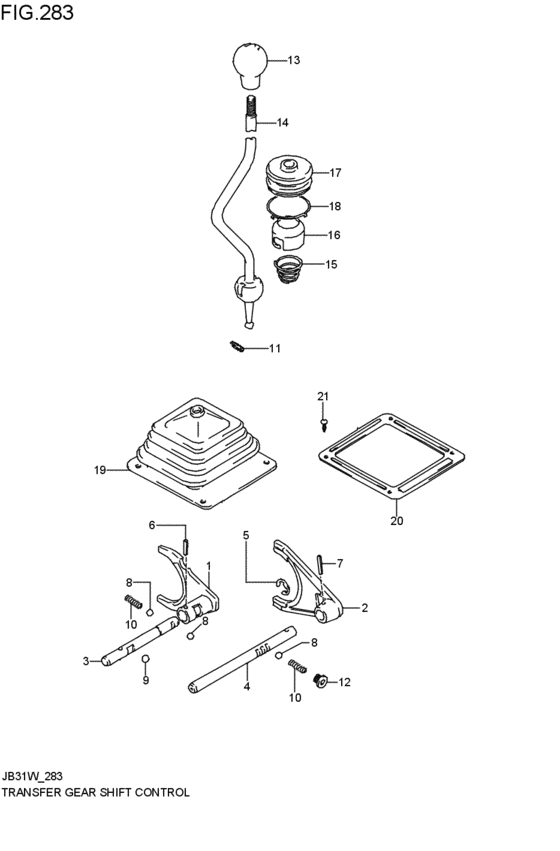

transfer gearlever control (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29310-80050-000 FORK,FRONT DRIVE SHIFT1993-05-01~1995-09-01 |
29310-80050-000 |
US $21.44 |
||
|
2
|
2
29321-80052-000 FORK,REDUCTION SHIFT1993-05-01~1995-09-01 |
29321-80052-000 |
from US $21.04 |
||
|
3
|
3
29331-83050-000 SHAFT,FRONT DRIVE SHIFT1993-05-01~1995-09-01 |
29331-83050-000 |
from US $18.79 |
||
|
4
|
4
29332-80052-000 SHAFT,REDUCTION SHIFT1993-05-01~1995-09-01 |
29332-80052-000 |
from US $20.72 |
||
|
5
|
5
08332-11106-000
E ring
1993-05-01~1995-09-01 |
08332-11106-000 |
— | ||
| replacement | |||||
|
5
|
5
08332-1110A-000 E RING1993-05-01~1995-09-01 |
08332-1110A-000 |
from US $1.12 |
||
|
6
|
6
09205-04003-000 PIN,SPRING(4.5X18)1993-05-01~1995-09-01 |
09205-04003-000 |
from US $0.45 |
||
|
7
|
7
09205-04001-000 PIN,SPRING(4.5X22)1993-05-01~1995-09-01 |
09205-04001-000 |
from US $0.18 |
||
|
8
|
8
06111-10003-000 BALL1993-05-01~1995-09-01 |
06111-10003-000 |
from US $0.96 |
||
|
9
|
9
06111-12004-000 BALL1993-05-01~1995-09-01 |
06111-12004-000 |
from US $1.06 |
||
|
10
|
10
29995-80050-000 SPRING,GEAR SHF LOCATING1993-05-01~1995-09-01 |
29995-80050-000 |
from US $1.17 |
||
|
11
|
11
29995-83050-000 SPRING,GEAR SHF LOCATING1993-05-01~1995-09-01 |
29995-83050-000 |
US $3.35 |
||
|
12
|
12
29941-80050-000 SCREW,GEAR SHIFT LOCATING1993-05-01~1995-09-01 |
29941-80050-000 |
from US $0.29 |
||
|
13
|
13
29344-82C01-000 KNOB,T/F GEAR SHIFT CONT1993-05-01~1995-09-01 |
29344-82C01-000 |
US $10.06 |
||
|
14
|
14
29340-82C02-000 LEVER,T/F GEAR SHF CONT1993-05-01~1995-09-01 |
29340-82C02-000 |
from US $102.80 |
||
|
15
|
15
29996-80050-000 SPRING,T/F GEAR SHIFT LEVER1993-05-01~1995-09-01 |
29996-80050-000 |
from US $0.97 |
||
|
16
|
16
29348-80050-000 SHEET,GEAR LEVER SPRING1993-05-01~1995-09-01 |
29348-80050-000 |
from US $4.68 |
||
|
17
|
17
29345-80052-000 BOOT,T/F GR SHF LEVER NO.11993-05-01~1995-09-01 |
29345-80052-000 |
from US $13.48 |
||
|
18
|
18
09401-50402-000 CLIP1993-05-01~1995-09-01 |
09401-50402-000 |
from US $2.18 |
||
|
19
|
19
29302-82C00-000 BOOT,T/F GR SHF LEVER1993-05-01~1995-09-01 |
29302-82C00-000 |
from US $25.52 |
||
|
20
|
20
29347-80001-000 COVER GEAR SFIT BOOT1993-05-01~1995-09-01 |
29347-80001-000 |
US $6.46 |
||
| replacement | |||||
|
20
|
20
29347-80010-000 COVER,T/F CONT LEVER BOOT1993-05-01~1995-09-01 |
29347-80010-000 |
from US $6.46 |
||
|
21
|
21
03141-06203-000
Screw
1993-05-01~1995-09-01 |
03141-06203-000 |
— | ||
| replacement | |||||
|
21
|
21
03141-0620A-000 SCREW1993-05-01~1995-09-01 |
03141-0620A-000 |
US $0.80 |
||
