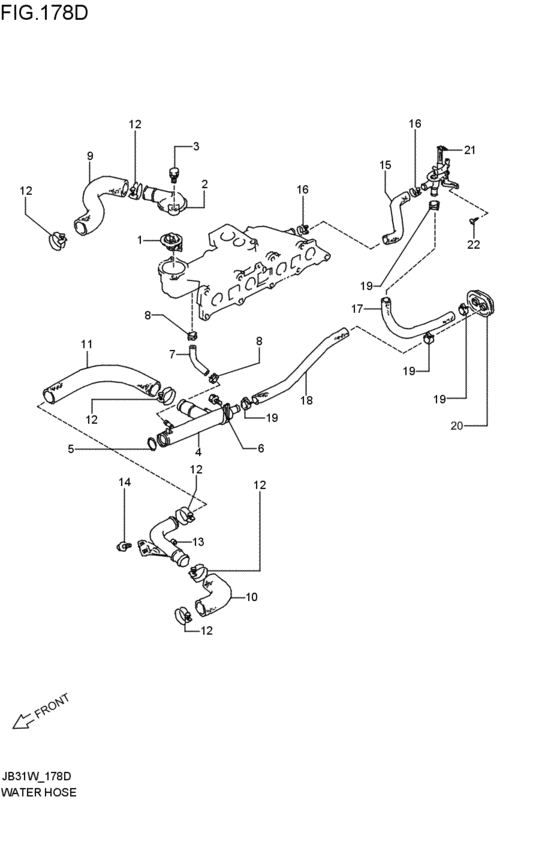

water hose (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17600-60813-000
サーモスタット,ウォータ,82゜C
1993-05-01~1995-09-01 |
17600-60813-000 |
— | ||
| replacement | |||||
|
1
|
1
17600-60814-000 THERMOSTAT,WATER 82 DEG1993-05-01~1995-09-01 |
17600-60814-000 |
from US $24.80 |
||
|
2
|
2
17561-73000-000 CAP,WATER THERMOSTAT1993-05-01~1995-09-01 |
17561-73000-000 |
from US $11.10 |
||
|
3
|
3
01550-08303-000
Bolt
1993-05-01~1995-09-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0830B-000 Bolt1993-05-01~1995-09-01 |
01550-0830B-000 |
from US $1.06 |
||
|
3
|
3
01550-0830A-000 BoltBolt, mount oil seal cover 1993-05-01~1995-09-01 |
01550-0830A-000 |
from US $1.06 |
||
|
4
|
4
17550-83X50-000 PIPE,WATER INLET1993-05-01~1995-09-01 |
17550-83X50-000 |
from US $91.85 |
||
|
5
|
5
09280-28008-000 O RING(D:3.5,ID:27.7)1993-05-01~1995-09-01 |
09280-28008-000 |
from US $1.44 |
||
|
6
|
6
01550-06103-000
Bolt, front
1993-05-01~1995-09-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0610B-000 BoltBolt 1993-05-01~1995-09-01 |
01550-0610B-000 |
from US $0.96 |
||
|
6
|
6
01550-0610A-000 Bolt1993-05-01~1995-09-01 |
01550-0610A-000 |
from US $0.96 |
||
|
7
|
7
13191-71C50-000 ホース,スロットルインレット,NO.11993-05-01~1995-09-01 |
13191-71C50-000 |
US $7.67 |
||
| replacements | |||||
|
7
|
7
09356-75141-600 HOSE(7.5X14.5X600)1993-05-01~1995-09-01 |
09356-75141-600 |
from US $7.67 |
||
|
7
|
7
09401-12410-000 CLIPClip, filter outlet 1993-05-01~1995-09-01 |
09401-12410-000 |
from US $1.49 |
||
|
7
|
7
09356-75141-200
HOSE 75 X14
1993-05-01~1995-09-01 |
09356-75141-200 |
— | ||
|
8
|
8
09401-12404-000 CLIPClip 1993-05-01~1995-09-01 |
09401-12404-000 |
from US $1.10 |
||
|
9
|
9
17841-60A00-000 HOSE,RADIATOR INLET1993-05-01~1995-09-01 |
17841-60A00-000 |
from US $23.78 |
||
|
10
|
10
17851-83101-000 HOSE,RADIATOR OUTLET NO.11993-05-01~1995-09-01 |
17851-83101-000 |
from US $13.07 |
||
|
11
|
11
17852-83000-000 HOSE,RADIATOR OUTLET NO.21993-05-01~1995-09-01 |
17852-83000-000 |
from US $22.55 |
||
|
12
|
12
09400-36312-000 CLAMP1993-05-01~1995-09-01 |
09400-36312-000 |
from US $1.67 |
||
|
13
|
13
17860-80C00-000 PIPE,RDTR OUTLET1993-05-01~1995-09-01 |
17860-80C00-000 |
US $34.29 |
||
|
14
|
14
01550-06123-000
Bolt
1993-05-01~1995-09-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0612B-000 BoltBolt, clamp 1993-05-01~1995-09-01 |
01550-0612B-000 |
from US $0.76 |
||
|
14
|
14
01550-0612A-000 Bolt1993-05-01~1995-09-01 |
01550-0612A-000 |
from US $0.76 |
||
|
15
|
15
17871-83011-000
ホース,ヒータ(インテークツーバルブ)
1993-05-01~1995-09-01 |
17871-83011-000 |
— | ||
| replacement | |||||
|
15
|
15
17871-80C00-000 HOSE,HEATER INTAKE TO VALVE1993-05-01~1995-09-01 |
17871-80C00-000 |
US $22.80 |
||
|
16
|
16
09400-22312-000 CLAMP1993-05-01~1995-09-01 |
09400-22312-000 |
from US $1.82 |
||
|
17
|
17
17872-83000-000
ホース,バルブツーヒータ
1993-05-01~1995-09-01 |
17872-83000-000 |
— | ||
| replacements | |||||
|
17
|
17
09401-18404-000 CLIP1993-05-01~1995-09-01 |
09401-18404-000 |
from US $1.37 |
||
|
17
|
17
17800-71810-000
HOSE SET,HEATER
1993-05-01~1995-09-01 |
17800-71810-000 |
— | ||
|
18
|
18
17873-83000-000
ホース,ヒータツーインレット
1993-05-01~1995-09-01 |
17873-83000-000 |
— | ||
| replacements | |||||
|
18
|
18
17873-83001-000 HOSE,HEATER HEATER TO INLET1993-05-01~1995-09-01 |
17873-83001-000 |
US $25.08 |
||
|
18
|
18
09401-18404-000 CLIP1993-05-01~1995-09-01 |
09401-18404-000 |
from US $1.37 |
||
|
19
|
19
09401-20402-000
Clip, air hose no.3
1993-05-01~1995-09-01 |
09401-20402-000 |
— | ||
| replacement | |||||
|
19
|
19
09401-20406-000 CLIP1993-05-01~1995-09-01 |
09401-20406-000 |
US $1.98 |
||
|
20
|
20
74812-83001-000 GROMMET,HEATER HOSE1993-05-01~1995-09-01 |
74812-83001-000 |
US $12.32 |
||
|
21
|
21
74710-83000-000 VALVE,WATER1993-05-01~1995-09-01 |
74710-83000-000 |
US $48 |
||
|
22
|
22
03141-06123-000
Screw 6x12
1993-05-01~1995-09-01 |
03141-06123-000 |
— | ||
| replacement | |||||
|
22
|
22
03141-0612A-000 SCREW1993-05-01~1995-09-01 |
03141-0612A-000 |
US $0.76 |
||
