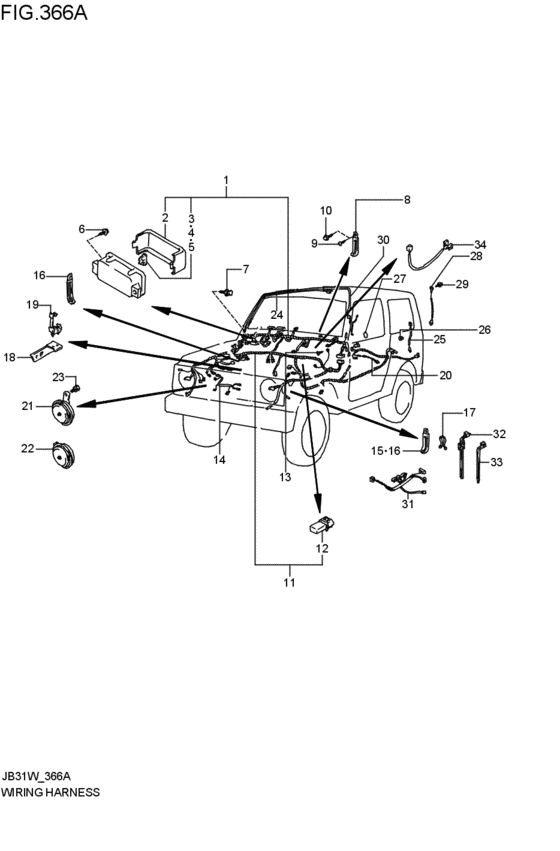

wire ring harness (1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-80C90-000
ハーネスアッシ,ワイヤリング,NO.1
5MT; 1993-05-01~1995-09-01 |
36610-80C90-000 |
— | ||
|
2
|
2
36717-80C02-000
COVER,FUSE BOX
1993-05-01~1995-09-01 |
36717-80C02-000 |
— | ||
|
3
|
3
09481-10101-000 FUSE(10A)1993-05-01~1995-09-01 |
09481-10101-000 |
from US $0.79 |
||
|
4
|
4
09481-15101-000 FUSE(15A)Fuse (15a) 1993-05-01~1995-09-01 |
09481-15101-000 |
from US $1.01 |
||
|
5
|
5
09481-20101-000 FUSE(20A)1993-05-01~1995-09-01 |
09481-20101-000 |
from US $0.52 |
||
|
6
|
6
03141-05123-000
Screw 5 x 12
1993-05-01~1995-09-01 |
03141-05123-000 |
— | ||
| replacement | |||||
|
6
|
6
03141-0512A-000 SCREWScrew, belt cooling duct 1993-05-01~1995-09-01 |
03141-0512A-000 |
from US $0.76 |
||
|
7
|
7
09115-06001-000 Bolt, lhBolt (6x16) 1993-05-01~1995-09-01 |
09115-06001-000 |
US $0.86 |
||
| replacement | |||||
|
7
|
7
09115-06005-000 BOLT(6X16)1993-05-01~1995-09-01 |
09115-06005-000 |
from US $0.86 |
||
|
8
|
8
09404-06431-000
CLAMP(L:65)
1993-05-01~1995-09-01 |
09404-06431-000 |
— | ||
| replacements | |||||
|
8
|
8
09404-06432-000
CLAMP(L:65)
1993-05-01~1995-09-01 |
09404-06432-000 |
— | ||
|
8
|
8
09404-06039-000 Clamp(L:65)1993-05-01~1995-09-01 |
09404-06039-000 |
from US $1.82 |
||
|
8
|
8
09404-06038-000 Clamp(L:65)1993-05-01~1995-09-01 |
09404-06038-000 |
from US $2.40 |
||
|
8
|
8
09404-06433-000
CLAMP(L:80)
1993-05-01~1995-09-01 |
09404-06433-000 |
— | ||
| replacements | |||||
|
8
|
8
09404-06434-000
CLAMP(L:80 T:1.0)
1993-05-01~1995-09-01 |
09404-06434-000 |
— | ||
|
8
|
8
09404-06436-000 Clamp(L:80)1993-05-01~1995-09-01 |
09404-06436-000 |
from US $2.13 |
||
|
8
|
8
09404-06036-000 Clamp(L:80)1993-05-01~1995-09-01 |
09404-06036-000 |
from US $1.82 |
||
|
9
|
9
03541-05123-000
Screw
1993-05-01~1995-09-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
9
|
9
03541-0512B-000 SCREW1993-05-01~1995-09-01 |
03541-0512B-000 |
from US $0.76 |
||
|
10
|
10
01550-06103-000
Bolt, front
1993-05-01~1995-09-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0610B-000 BoltBolt 1993-05-01~1995-09-01 |
01550-0610B-000 |
from US $0.96 |
||
|
10
|
10
01550-0610A-000 Bolt1993-05-01~1995-09-01 |
01550-0610A-000 |
from US $0.96 |
||
|
11
|
11
36620-80C91-000
ハーネスアッシ,ワイヤリング,NO.2
5MT; 1993-05-01~1995-09-01 |
36620-80C91-000 |
— | ||
|
12
|
12
33552-86000-000 FILTER,NOISE SUPPRESSOR1993-05-01~1995-09-01 |
33552-86000-000 |
from US $11 |
||
|
13
|
13
09129-06002-000 SCREW(6X12)1993-05-01~1995-09-01 |
09129-06002-000 |
from US $0.16 |
||
|
14
|
14
36650-80C00-000
Harness assy,wrg,eng
1993-05-01~1995-09-01 |
36650-80C00-000 |
— | ||
|
15
|
15
09404-06435-000 CLAMP(L:135)5MT; 1993-05-01~1995-09-01 |
09404-06435-000 |
from US $2.13 |
||
|
16
|
16
09404-08418-000
CLAMP(L:65)
5MT; 1993-05-01~1995-09-01 |
09404-08418-000 |
— | ||
| replacement | |||||
|
16
|
16
09404-08421-000 Clamp(L:65)5MT; 1993-05-01~1995-09-01 |
09404-08421-000 |
from US $1.12 |
||
|
16
|
16
09404-08419-000 CLAMP(L:80)5MT; 1993-05-01~1995-09-01 |
09404-08419-000 |
US $12.50 |
||
| replacement | |||||
|
16
|
16
09404-08422-000 Clamp,wiring Harness5MT; 1993-05-01~1995-09-01 |
09404-08422-000 |
from US $3.62 |
||
|
17
|
17
09408-00024-000 CLIP(ID:23)Clip, ptt sw terminal 1993-05-01~1995-09-01 |
09408-00024-000 |
from US $2.40 |
||
|
18
|
18
36625-83000-000 BRACKET,HARN&CABLE1993-05-01~1995-09-01 |
36625-83000-000 |
from US $0.27 |
||
|
19
|
19
09403-16306-000
CLAMP
5MT; 1993-05-01~1995-09-01 |
09403-16306-000 |
— | ||
|
20
|
20
36822-80001-000
REED WIRE,FUEL LEVEL GAUGE
1993-05-01~1995-09-01 |
36822-80001-000 |
— | ||
|
21
|
21
38500-82201-000 HORN ASSYLOW; 1993-05-01~1995-09-01 |
38500-82201-000 |
US $49.86 |
||
| replacement | |||||
|
21
|
21
38500-60G00-000 HORN ASSYLOW; 1993-05-01~1995-09-01 |
38500-60G00-000 |
from US $49.86 |
||
|
22
|
22
38500-83100-000 HORN ASSY,HIGHHIGH; 1993-05-01~1995-09-01 |
38500-83100-000 |
US $71.39 |
||
|
23
|
23
01570-08123-000
Bolt
1993-05-01~1995-09-01 |
01570-08123-000 |
— | ||
| replacement | |||||
|
23
|
23
01570-0812A-000 Bolt1993-05-01~1995-09-01 |
01570-0812A-000 |
US $14.40 |
||
|
24
|
24
36820-80001-000 WIRE,ROOM LAMP NO.11993-05-01~1995-09-01 |
36820-80001-000 |
from US $1.69 |
||
|
25
|
25
36891-66700-000
リードワイヤ,デフォッガアース
1993-05-01~1995-09-01 |
36891-66700-000 |
— | ||
|
26
|
26
09308-06003-000 GROMMET1993-05-01~1995-09-01 |
09308-06003-000 |
US $16.20 |
||
|
27
|
27
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole 1993-05-01~1995-09-01 |
84761-50X50-000 |
from US $6.72 |
||
|
28
|
28
36821-80000-000 REED WIRE,WINDOW EARTH1993-05-01~1995-09-01 |
36821-80000-000 |
from US $0.38 |
||
|
29
|
29
09139-05028-000 SCREW(5X14)1993-05-01~1995-09-01 |
09139-05028-000 |
from US $0.79 |
||
|
30
|
30
36842-80C00-000
ワイヤ,デフォッガ/ハイマウントランプ
1993-05-01~1995-09-01 |
36842-80C00-000 |
— | ||
