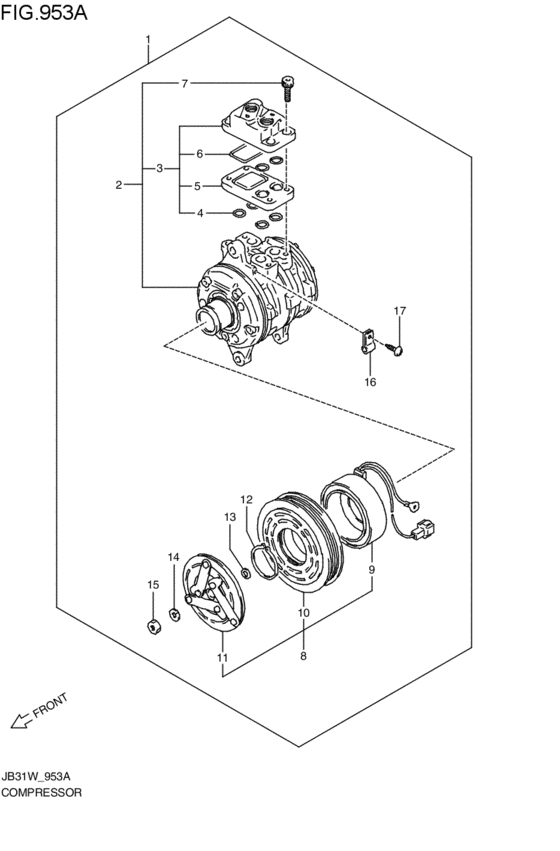

compressor (エルク,デザイン; SA,SB; 1994-06-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1994 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 5MT
- Number of doors
- 3DR
- grade
- SA
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95200-67A40-000
Compressor assy
DENSO; SA,SB; 1994-06-01~1995-09-01 |
95200-67A40-000 |
— | ||
|
2
|
2
95230-67A40-000
COMPRESSOR
DENSO; SA,SB; 1994-06-01~1995-09-01 |
95230-67A40-000 |
— | ||
|
3
|
3
95251-82116-000 CONNECTOR,JOINT SERVICEDENSO; SA,SB; 1994-06-01~1995-09-01 |
95251-82116-000 |
from US $61.97 |
||
|
4
|
4
95254-82000-000 O-RINGDENSO; SA,SB; 1994-06-01~1995-09-01 |
95254-82000-000 |
from US $3.40 |
||
|
5
|
5
95258-82010-000
DIFFUSER
DENSO; SA,SB; 1994-06-01~1995-09-01 |
95258-82010-000 |
— | ||
|
6
|
6
95259-82001-000 SEAL,DIFFUSERDENSO; SA,SB; 1994-06-01~1995-09-01 |
95259-82001-000 |
US $4.19 |
||
|
7
|
7
07130-08253-000
Bolt
SA,SB; 1994-06-01~1995-09-01 |
07130-08253-000 |
— | ||
| replacement | |||||
|
7
|
7
07130-0825B-000 BoltSA,SB; 1994-06-01~1995-09-01 |
07130-0825B-000 |
from US $1.28 |
||
|
8
|
8
95210-67A40-000
クラッチアッシ,マグネット
DENSO; SA,SB; 1994-06-01~1995-09-01 |
95210-67A40-000 |
— | ||
|
9
|
9
95213-67A40-000
STATOR ASSY
DENSO; SA,SB; 1994-06-01~1995-09-01 |
95213-67A40-000 |
— | ||
|
10
|
10
95212-80C00-000
ロータ,マグネットクラッチ
DENSO; SA,SB; 1994-06-01~1995-09-01 |
95212-80C00-000 |
— | ||
|
11
|
11
95211-82000-000 PLATE,CPRSR DRIVE CLUTCHDENSO; SA,SB; 1994-06-01~1995-09-01 |
95211-82000-000 |
from US $129.90 |
||
|
12
|
12
08331-31383-000 CIRCLIPSA,SB; 1994-06-01~1995-09-01 |
08331-31383-000 |
from US $1.42 |
||
|
13
|
13
95216-82000-000
WASHER,PLATE
DENSO; SA,SB; 1994-06-01~1995-09-01 |
95216-82000-000 |
— | ||
|
14
|
14
08321-01083-000
Lock washer
SA,SB; 1994-06-01~1995-09-01 |
08321-01083-000 |
— | ||
| replacements | |||||
|
14
|
14
08321-0108B-000 WASHER,LOCKSA,SB; 1994-06-01~1995-09-01 |
08321-0108B-000 |
from US $0.76 |
||
|
14
|
14
08321-0108A-000 WASHER,LOCKSA,SB; 1994-06-01~1995-09-01 |
08321-0108A-000 |
from US $0.90 |
||
|
15
|
15
08310-00083-000
Nut
SA,SB; 1994-06-01~1995-09-01 |
08310-00083-000 |
— | ||
| replacements | |||||
|
15
|
15
08310-0008B-000 NUTSA,SB; 1994-06-01~1995-09-01 |
08310-0008B-000 |
from US $0.96 |
||
|
15
|
15
08310-0008A-000 NUTNut, bead stopper SA,SB; 1994-06-01~1995-09-01 |
08310-0008A-000 |
from US $0.76 |
||
|
16
|
16
95215-82000-000
CLAMP,HARNESS
DENSO; SA,SB; 1994-06-01~1995-09-01 |
95215-82000-000 |
— | ||
|
17
|
17
03141-05083-000
Screw
SA,SB; 1994-06-01~1995-09-01 |
03141-05083-000 |
— | ||
| replacement | |||||
|
17
|
17
03141-0508A-000 SCREWSA,SB; 1994-06-01~1995-09-01 |
03141-0508A-000 |
US $7.70 |
||
