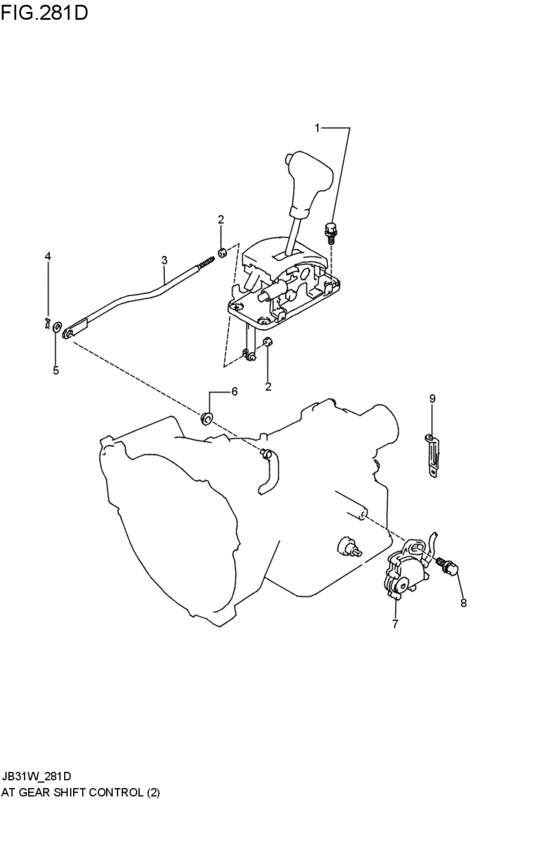

gearlever control (3AT; 1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
09118-08118-000 BOLT(8X20)3AT; 1993-05-01~1995-09-01 |
09118-08118-000 |
from US $1.01 |
||
|
2
|
2
09140-06024-000 NUT3AT; 1993-05-01~1995-09-01 |
09140-06024-000 |
US $1.12 |
||
|
3
|
3
28260-81C00-000
ロッド,セレクト
3AT; 1993-05-01~1995-09-01 |
28260-81C00-000 |
— | ||
|
4
|
4
09385-08004-000 PIN,SNAP3AT; 1993-05-01~1995-09-01 |
09385-08004-000 |
from US $1.28 |
||
|
5
|
5
08322-01083-000
WASHER
3AT; 1993-05-01~1995-09-01 |
08322-01083-000 |
— | ||
| replacements | |||||
|
5
|
5
08322-0108B-000 WASHER3AT; 1993-05-01~1995-09-01 |
08322-0108B-000 |
from US $0.96 |
||
|
5
|
5
08322-0108A-000 WASHER3AT; 1993-05-01~1995-09-01 |
08322-0108A-000 |
from US $0.96 |
||
|
6
|
6
09305-08011-000 BUSH3AT; 1993-05-01~1995-09-01 |
09305-08011-000 |
from US $0.79 |
||
|
7
|
7
37720-60C00-000
SWITCH ASSY,SHIFT
3AT; 1993-05-01~1995-09-01 |
37720-60C00-000 |
— | ||
|
8
|
8
01580-08253-000
Bolt
3AT; 1993-05-01~1995-09-01 |
01580-08253-000 |
— | ||
| replacement | |||||
|
8
|
8
01580-0825A-000 Bolt3AT; 1993-05-01~1995-09-01 |
01580-0825A-000 |
from US $4.34 |
||
|
9
|
9
09404-06433-000
CLAMP(L:80)
3AT; 1993-05-01~1995-09-01 |
09404-06433-000 |
— | ||
| replacements | |||||
|
9
|
9
09404-06434-000
CLAMP(L:80 T:1.0)
3AT; 1993-05-01~1995-09-01 |
09404-06434-000 |
— | ||
|
9
|
9
09404-06436-000 Clamp(L:80)3AT; 1993-05-01~1995-09-01 |
09404-06436-000 |
from US $2.13 |
||
|
9
|
9
09404-06036-000 Clamp(L:80)3AT; 1993-05-01~1995-09-01 |
09404-06036-000 |
from US $1.82 |
||
