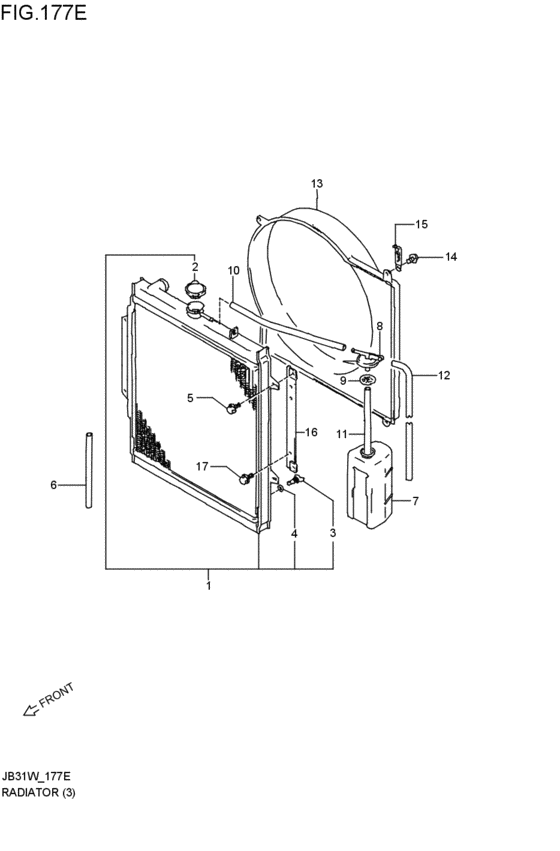

radiator (3AT; 1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17700-80C11-000
RADIATOR ASSY
3AT; 1993-05-01~1995-09-01 |
17700-80C11-000 |
— | ||
|
2
|
2
17920-83101-000 CAP ASSY,RADIATOR 0.93AT; 1993-05-01~1995-09-01 |
17920-83101-000 |
from US $28.40 |
||
|
3
|
3
17751-83100-000 PLUG,DRAIN3AT; 1993-05-01~1995-09-01 |
17751-83100-000 |
from US $4.01 |
||
|
4
|
4
17759-83100-000 GASKET,DRAIN PLUG3AT; 1993-05-01~1995-09-01 |
17759-83100-000 |
from US $2.24 |
||
|
5
|
5
01550-06123-000
Bolt
3AT; 1993-05-01~1995-09-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0612B-000 BoltBolt, clamp 3AT; 1993-05-01~1995-09-01 |
01550-0612B-000 |
from US $0.76 |
||
|
5
|
5
01550-0612A-000 Bolt3AT; 1993-05-01~1995-09-01 |
01550-0612A-000 |
from US $0.76 |
||
|
6
|
6
09351-75111-600 HOSE(7.5X11.5X600)L:600>90; 3AT; 1993-05-01~1995-09-01 |
09351-75111-600 |
from US $2.70 |
||
|
7
|
7
17931-80000-000
WATER RESERV TANK
3AT; 1993-05-01~1995-09-01 |
17931-80000-000 |
— | ||
| replacement | |||||
|
7
|
7
17931-80001-000 TANK,WATER RESERVE3AT; 1993-05-01~1995-09-01 |
17931-80001-000 |
from US $16.20 |
||
|
8
|
8
17932-82001-000 CAP,WATER RESERVOIR TANKCap, water reservoir tank 3AT; 1993-05-01~1995-09-01 |
17932-82001-000 |
from US $9.12 |
||
|
9
|
9
17933-82002-000 RUBBER,WTR RSV TANK CAP3AT; 1993-05-01~1995-09-01 |
17933-82002-000 |
from US $2.13 |
||
|
10
|
10
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:600>530; 3AT; 1993-05-01~1995-09-01 |
09352-70121-600 |
from US $5.93 |
||
|
11
|
11
09352-70111-600 HOSE(7X11X600)L:600>170; 3AT; 1993-05-01~1995-09-01 |
09352-70111-600 |
from US $6.84 |
||
|
12
|
12
17934-80C00-000 HOSE,WATER RESERVE TANK CAP3AT; 1993-05-01~1995-09-01 |
17934-80C00-000 |
from US $8.46 |
||
|
13
|
13
17761-80C00-000 SHROUD FAN3AT; 1993-05-01~1995-09-01 |
17761-80C00-000 |
from US $22.14 |
||
|
14
|
14
01550-06123-000
Bolt
3AT; 1993-05-01~1995-09-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0612B-000 BoltBolt, clamp 3AT; 1993-05-01~1995-09-01 |
01550-0612B-000 |
from US $0.76 |
||
|
14
|
14
01550-0612A-000 Bolt3AT; 1993-05-01~1995-09-01 |
01550-0612A-000 |
from US $0.76 |
||
|
15
|
15
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire 3AT; 1993-05-01~1995-09-01 |
09404-06429-000 |
from US $1.52 |
||
|
16
|
16
17821-80C00-000 BRACKET,RDTR3AT; 1993-05-01~1995-09-01 |
17821-80C00-000 |
US $7.91 |
||
|
17
|
17
01550-06123-000
Bolt
3AT; 1993-05-01~1995-09-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0612B-000 BoltBolt, clamp 3AT; 1993-05-01~1995-09-01 |
01550-0612B-000 |
from US $0.76 |
||
|
17
|
17
01550-0612A-000 Bolt3AT; 1993-05-01~1995-09-01 |
01550-0612A-000 |
from US $0.76 |
||
