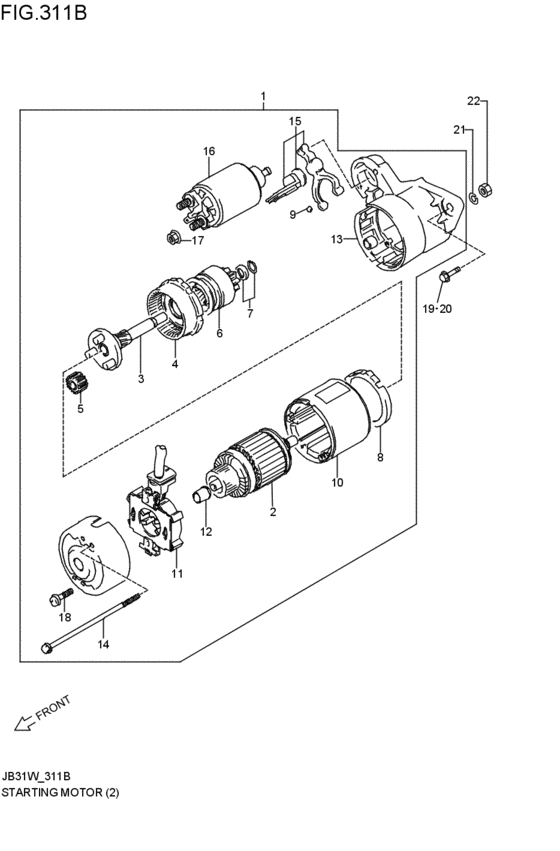

starting motor (3AT; 3AT; 1993-05-01~1995-09-01) Diagram Suzuki JIMNY
- Year
- 1993 - 1995
- Sales region
- Japan
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- Number of doors
- 3DR
- grade
- STD
- valve
- 2V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-60A12-000
モータアッシ,スターティング
3AT; 1993-05-01~1995-09-01 |
31100-60A12-000 |
— | ||
| replacements | |||||
|
1
|
1
31100-60A12-REM
Starting motor
3AT; 1993-05-01~1995-09-01 |
31100-60A12-REM |
— | ||
|
1
|
1
31100-60A24-000 MOTOR ASSY,STARTING3AT; 1993-05-01~1995-09-01 |
31100-60A24-000 |
from US $519.21 |
||
|
2
|
2
31311-86032-000
Armature
3AT; 1993-05-01~1995-09-01 |
31311-86032-000 |
— | ||
|
3
|
3
31341-60A10-000
SHAFT,GEAR
3AT; 1993-05-01~1995-09-01 |
31341-60A10-000 |
— | ||
|
4
|
4
31343-86030-000
GEAR ASSY INNER
3AT; 1993-05-01~1995-09-01 |
31343-86030-000 |
— | ||
| replacement | |||||
|
4
|
4
31343-50F40-000
GEAR,INTERNAL
3AT; 1993-05-01~1995-09-01 |
31343-50F40-000 |
— | ||
|
5
|
5
31344-86030-000 GEAR,PLNTY3AT; 1993-05-01~1995-09-01 |
31344-86030-000 |
from US $18.09 |
||
|
6
|
6
31320-86030-000 CLUTCH,OVER RUNNING3AT; 1993-05-01~1995-09-01 |
31320-86030-000 |
from US $93.31 |
||
|
7
|
7
31313-86030-000 STOPPER SET3AT; 1993-05-01~1995-09-01 |
31313-86030-000 |
US $11.50 |
||
| replacement | |||||
|
7
|
7
31314-86030-000 Stopper Set3AT; 1993-05-01~1995-09-01 |
31314-86030-000 |
from US $11.50 |
||
|
8
|
8
31345-86030-000
Packing
3AT; 1993-05-01~1995-09-01 |
31345-86030-000 |
— | ||
| replacement | |||||
|
8
|
8
31345-60A00-000 PACKING3AT; 1993-05-01~1995-09-01 |
31345-60A00-000 |
US $5.37 |
||
|
9
|
9
31193-86030-000 BALL3AT; 1993-05-01~1995-09-01 |
31193-86030-000 |
from US $0.83 |
||
|
10
|
10
31110-86030-000
ヨークアッシ
3AT; 1993-05-01~1995-09-01 |
31110-86030-000 |
— | ||
| replacement | |||||
|
10
|
10
31110-86031-000
YOKE ASSY
3AT; 1993-05-01~1995-09-01 |
31110-86031-000 |
— | ||
|
11
|
11
31173-60A22-000 HOLDER ASSY,BRUSH3AT; 1993-05-01~1995-09-01 |
31173-60A22-000 |
from US $63.84 |
||
|
12
|
12
31172-64B60-000 BEARING,REAR3AT; 1993-05-01~1995-09-01 |
31172-64B60-000 |
from US $8.21 |
||
|
13
|
13
31152-79030-000 BEARING,FRONT3AT; 1993-05-01~1995-09-01 |
31152-79030-000 |
from US $5.11 |
||
|
14
|
14
31261-86030-000
Bolt
3AT; 1993-05-01~1995-09-01 |
31261-86030-000 |
— | ||
|
15
|
15
31191-86030-000
LEVER ASSY
3AT; 1993-05-01~1995-09-01 |
31191-86030-000 |
— | ||
|
16
|
16
31220-86030-000 SWITCH ASSY3AT; 1993-05-01~1995-09-01 |
31220-86030-000 |
from US $102.24 |
||
|
17
|
17
08316-10083-000
Nut
3AT; 1993-05-01~1995-09-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
17
|
17
08316-1008B-000 NUT3AT; 1993-05-01~1995-09-01 |
08316-1008B-000 |
from US $0.76 |
||
|
18
|
18
31136-79030-000 SCREW ASSY3AT; 1993-05-01~1995-09-01 |
31136-79030-000 |
US $3.38 |
||
| replacement | |||||
|
18
|
18
31175-79030-000 Screw Set3AT; 1993-05-01~1995-09-01 |
31175-79030-000 |
US $8.16 |
||
|
19
|
19
01550-08303-000
Bolt
3AT; 1993-05-01~1995-09-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0830B-000 Bolt3AT; 1993-05-01~1995-09-01 |
01550-0830B-000 |
from US $1.06 |
||
|
19
|
19
01550-0830A-000 BoltBolt, mount oil seal cover 3AT; 1993-05-01~1995-09-01 |
01550-0830A-000 |
from US $1.06 |
||
|
20
|
20
01550-08503-000
Bolt
3AT; 1993-05-01~1995-09-01 |
01550-08503-000 |
— | ||
| replacement | |||||
|
20
|
20
01550-0850B-000 Bolt3AT; 1993-05-01~1995-09-01 |
01550-0850B-000 |
from US $1.22 |
||
|
21
|
21
08321-01083-000
Lock washer
3AT; 1993-05-01~1995-09-01 |
08321-01083-000 |
— | ||
| replacements | |||||
|
21
|
21
08321-0108B-000 WASHER,LOCK3AT; 1993-05-01~1995-09-01 |
08321-0108B-000 |
from US $0.76 |
||
|
21
|
21
08321-0108A-000 WASHER,LOCK3AT; 1993-05-01~1995-09-01 |
08321-0108A-000 |
from US $0.96 |
||
|
22
|
22
08310-00083-000
Nut
3AT; 1993-05-01~1995-09-01 |
08310-00083-000 |
— | ||
| replacements | |||||
|
22
|
22
08310-0008B-000 NUT3AT; 1993-05-01~1995-09-01 |
08310-0008B-000 |
from US $0.96 |
||
|
22
|
22
08310-0008A-000 NUTNut, bead stopper 3AT; 1993-05-01~1995-09-01 |
08310-0008A-000 |
from US $0.76 |
||
