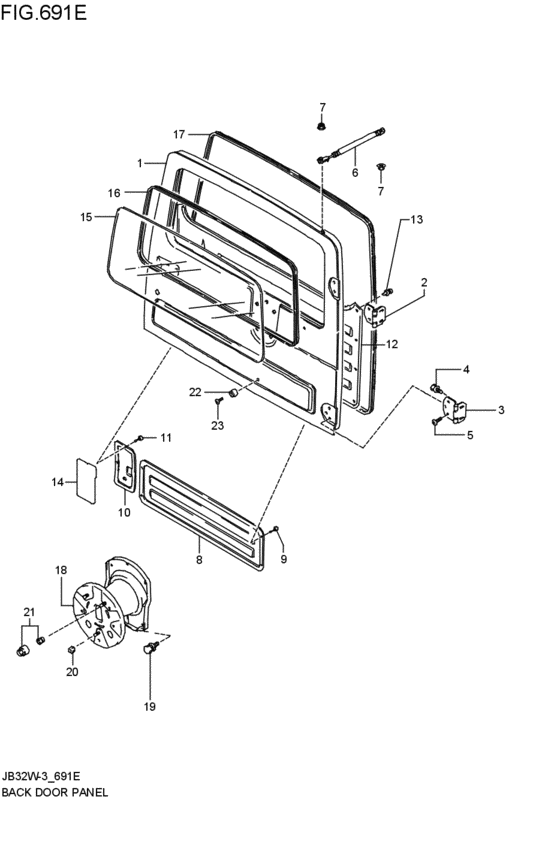

back door panel (1997-05-01~1997-09-01) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69100-82CB0-000
パネルアッシ,バックドア
1997-05-01~1997-09-01 |
69100-82CB0-000 |
— | ||
|
2
|
2
69510-80111-000 HINGE,BACK DOOR UPR1997-05-01~1997-09-01 |
69510-80111-000 |
from US $26.03 |
||
|
3
|
3
69520-80111-000 HINGE,BACK DOOR LWR1997-05-01~1997-09-01 |
69520-80111-000 |
from US $21.92 |
||
|
4
|
4
09118-08060-000 BOLT(8X22)1997-05-01~1997-09-01 |
09118-08060-000 |
US $1.28 |
||
|
5
|
5
09125-08015-000
スクリュ,8X20
1997-05-01~1997-09-01 |
09125-08015-000 |
— | ||
| replacement | |||||
|
5
|
5
09125-08015-XC0 SCREW(8X20)1997-05-01~1997-09-01 |
09125-08015-XC0 |
from US $0.97 |
||
|
6
|
6
81860-80101-000 UNIT,DR BALANCER1997-05-01~1997-09-01 |
81860-80101-000 |
from US $88.56 |
||
|
7
|
7
09159-06076-000 NUT1997-05-01~1997-09-01 |
09159-06076-000 |
from US $0.99 |
||
|
8
|
8
83771-82CA0-000
リッド,バックドアサービスホール
1997-05-01~1997-09-01 |
83771-82CA0-000 |
— | ||
|
9
|
9
03141-05123-000
Screw 5 x 12
1997-05-01~1997-09-01 |
03141-05123-000 |
— | ||
| replacement | |||||
|
9
|
9
03141-0512A-000 SCREWScrew, belt cooling duct 1997-05-01~1997-09-01 |
03141-0512A-000 |
from US $0.76 |
||
|
10
|
10
83772-80100-000 LID,BACK DR LATCH SVCE HOLE1997-05-01~1997-09-01 |
83772-80100-000 |
from US $2.72 |
||
|
11
|
11
03141-05123-000
Screw 5 x 12
1997-05-01~1997-09-01 |
03141-05123-000 |
— | ||
| replacement | |||||
|
11
|
11
03141-0512A-000 SCREWScrew, belt cooling duct 1997-05-01~1997-09-01 |
03141-0512A-000 |
from US $0.76 |
||
|
12
|
12
83781-82CA0-T01
トリム,バックドア(グレー)
グレ-; 1997-05-01~1997-09-01 |
83781-82CA0-T01 |
— | ||
|
13
|
13
09409-07318-T01 CLIP(GRAY)グレ-; 1997-05-01~1997-09-01 |
09409-07318-T01 |
US $23.60 |
||
|
14
|
14
83911-60X50-000
カバー,ドアシーリング,600X1200
1997-05-01~1997-09-01 |
83911-60X50-000 |
— | ||
| replacement | |||||
|
14
|
14
83911-60X52-000 COVER,DR SEALING1997-05-01~1997-09-01 |
83911-60X52-000 |
US $6.06 |
||
|
15
|
15
84571-82CJ0-000
ガラス,バックドアウィンド(ダークグレー)
ダークグレー,ASAHI; 1997-05-01~1997-09-01 |
84571-82CJ0-000 |
— | ||
|
16
|
16
84623-80100-000 WEATHERSTRIP,BACK WINDOW1997-05-01~1997-09-01 |
84623-80100-000 |
from US $62.06 |
||
|
17
|
17
84681-82CA0-000 WEATHERSTRIP,BACK DR OPNG1997-05-01~1997-09-01 |
84681-82CA0-000 |
from US $79.70 |
||
|
18
|
18
83960-50CA0-000
Carrier comp,spare tire
1997-05-01~1997-09-01 |
83960-50CA0-000 |
— | ||
|
19
|
19
01580-10253-000
ボルト
1997-05-01~1997-09-01 |
01580-10253-000 |
— | ||
| replacement | |||||
|
19
|
19
01580-1025A-000 Bolt1997-05-01~1997-09-01 |
01580-1025A-000 |
US $19.50 |
||
|
20
|
20
09159-12024-000 NUT1997-05-01~1997-09-01 |
09159-12024-000 |
from US $2.56 |
||
|
21
|
21
83901-70AA0-000
KEY ASSY,SPARE TIRE NUT LOCK
1997-05-01~1997-09-01 |
83901-70AA0-000 |
— | ||
|
22
|
22
09320-06014-000 CUSHION1997-05-01~1997-09-01 |
09320-06014-000 |
from US $1.53 |
||
|
23
|
23
02112-06163-000
Screw
1997-05-01~1997-09-01 |
02112-06163-000 |
— | ||
| replacements | |||||
|
23
|
23
02112-0616B-000 SCREW1997-05-01~1997-09-01 |
02112-0616B-000 |
from US $0.96 |
||
|
23
|
23
02112-0616A-000 SCREW1997-05-01~1997-09-01 |
02112-0616A-000 |
from US $0.76 |
||
