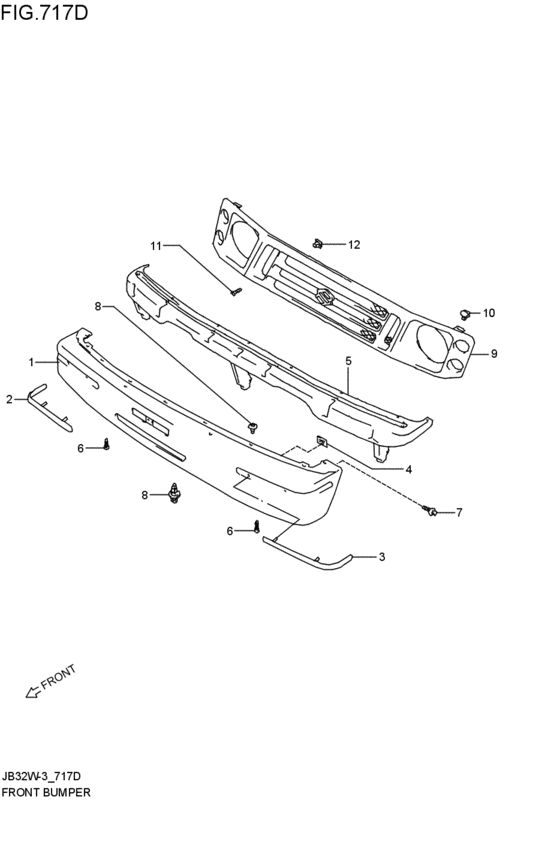

front bumper (1997-05-01~1997-09-01) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71711-50CD0-799
バンパ,フロント(プライマリー)
プライマリ-; 1997-05-01~1997-09-01 |
71711-50CD0-799 |
— | ||
|
2
|
2
71716-50CA0-0PG
モールディング,フロントバンパ,ライト(クローム)
クロ-ム; 1997-05-01~1997-09-01 |
71716-50CA0-0PG |
— | ||
|
3
|
3
71717-50CA0-0PG
モールディング,フロントバンパ,レフト(クローム)
クロ-ム; 1997-05-01~1997-09-01 |
71717-50CA0-0PG |
— | ||
|
4
|
4
09148-03002-000 NUT1997-05-01~1997-09-01 |
09148-03002-000 |
from US $1.28 |
||
|
5
|
5
71720-82CA0-000 MEMBER,FR BUMPER1997-05-01~1997-09-01 |
71720-82CA0-000 |
from US $123.28 |
||
|
6
|
6
09139-06072-000 SCREW(6X16)1997-05-01~1997-09-01 |
09139-06072-000 |
from US $1.28 |
||
|
7
|
7
01550-08123-000
Bolt
1997-05-01~1997-09-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0812B-000 BoltPlug, drain 1997-05-01~1997-09-01 |
01550-0812B-000 |
from US $0.96 |
||
|
7
|
7
01550-0812A-000 Bolt1997-05-01~1997-09-01 |
01550-0812A-000 |
from US $0.91 |
||
|
8
|
8
09409-07325-5PK CLIP(BLACK)ブラック; 1997-05-01~1997-09-01 |
09409-07325-5PK |
from US $1.76 |
||
|
9
|
9
72111-82CA0-38B GRILLE,FRグレ-; 1997-05-01~1997-09-01 |
72111-82CA0-38B |
from US $204.68 |
||
|
10
|
10
72115-56B01-000 CLIP,FR GRILLE1997-05-01~1997-09-01 |
72115-56B01-000 |
from US $1.76 |
||
|
11
|
11
03541-04163-000
Screw
1997-05-01~1997-09-01 |
03541-04163-000 |
— | ||
| replacement | |||||
|
11
|
11
03541-0416A-000 SCREWScrew, trunk box lamp 1997-05-01~1997-09-01 |
03541-0416A-000 |
from US $0.76 |
||
|
12
|
12
09148-04033-000 NUT1997-05-01~1997-09-01 |
09148-04033-000 |
from US $0.86 |
||
