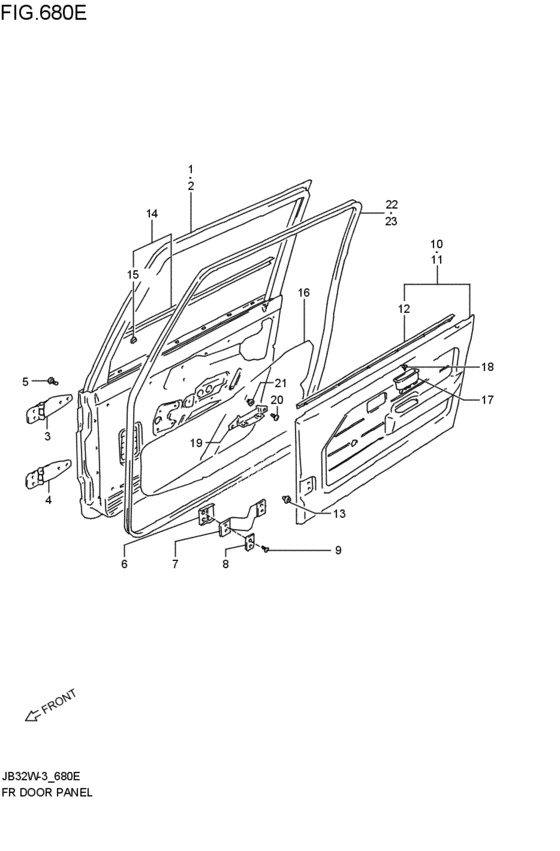

front door panel (1997-05-01~1997-09-01) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-84C11-000
PANEL ASSY,FRONT DOOR,R
1997-05-01~1997-09-01 |
68001-84C11-000 |
— | ||
|
2
|
2
68002-84C11-000
PANEL ASSY,FRONT DOOR,L
1997-05-01~1997-09-01 |
68002-84C11-000 |
— | ||
|
3
|
3
69310-80110-000 HINGE,FR DOOR UPPER RH1997-05-01~1997-09-01 |
69310-80110-000 |
US $68 |
||
|
4
|
4
69320-80110-000 HINGE,FR DOOR LOWER RH1997-05-01~1997-09-01 |
69320-80110-000 |
US $64 |
||
|
5
|
5
09125-08015-000
スクリュ,8X20
1997-05-01~1997-09-01 |
09125-08015-000 |
— | ||
| replacement | |||||
|
5
|
5
09125-08015-XC0 SCREW(8X20)1997-05-01~1997-09-01 |
09125-08015-XC0 |
US $1.60 |
||
|
6
|
6
76182-63101-000 PROTECTOR,OPENING TRIM1997-05-01~1997-09-01 |
76182-63101-000 |
US $13.60 |
||
|
7
|
7
81811-80100-000 BAND,DR OPEN STOPPER1997-05-01~1997-09-01 |
81811-80100-000 |
US $12.31 |
||
|
8
|
8
76182-58002-000 GARNISH,DR OPEN STOPPER1997-05-01~1997-09-01 |
76182-58002-000 |
US $1.82 |
||
|
9
|
9
02122-05203-000
Screw
1997-05-01~1997-09-01 |
02122-05203-000 |
— | ||
| replacement | |||||
|
9
|
9
02122-0520A-000 SCREW1997-05-01~1997-09-01 |
02122-0520A-000 |
from US $0.80 |
||
|
10
|
10
83710-82CA0-T01
TRIM,FRONT DOOR,R
グレ-; 1997-05-01~1997-09-01 |
83710-82CA0-T01 |
— | ||
|
11
|
11
83720-82CA0-T01
Trim comp,front door,l
グレ-; 1997-05-01~1997-09-01 |
83720-82CA0-T01 |
— | ||
|
12
|
12
83719-82CA0-000
WEATHERSTRIP,FR DR INR
1997-05-01~1997-09-01 |
83719-82CA0-000 |
— | ||
|
13
|
13
09409-08320-000 CLIP1997-05-01~1997-09-01 |
09409-08320-000 |
from US $1.15 |
||
|
14
|
14
83810-82CA0-000 WEATHERSTRIP,FR DR OUT1997-05-01~1997-09-01 |
83810-82CA0-000 |
US $43.32 |
||
|
15
|
15
78991-78001-000 CLIP,DR OUT WEATHERSTRIP1997-05-01~1997-09-01 |
78991-78001-000 |
from US $1.52 |
||
|
16
|
16
83911-60X50-000
カバー,ドアシーリング,600X1200
1997-05-01~1997-09-01 |
83911-60X50-000 |
— | ||
| replacement | |||||
|
16
|
16
83911-60X52-000 COVER,DR SEALING1997-05-01~1997-09-01 |
83911-60X52-000 |
US $6.06 |
||
|
17
|
17
83799-70B11-T01
ハンドル,フロントドアトリム(グレー)
グレ-; 1997-05-01~1997-09-01 |
83799-70B11-T01 |
— | ||
| replacement | |||||
|
17
|
17
83799-70B20-T01 HANDLE,DOOR TRIMグレ-; 1997-05-01~1997-09-01 |
83799-70B20-T01 |
US $10.52 |
||
|
18
|
18
03141-04123-000
Screw
1997-05-01~1997-09-01 |
03141-04123-000 |
— | ||
| replacement | |||||
|
18
|
18
03142-0412B-000 SCREW1997-05-01~1997-09-01 |
03142-0412B-000 |
from US $0.80 |
||
|
19
|
19
84482-82CA0-000
BRACKET,DR INSIDE PULL HANDLE
1997-05-01~1997-09-01 |
84482-82CA0-000 |
— | ||
|
20
|
20
03241-06163-000
スクリュ
1997-05-01~1997-09-01 |
03241-06163-000 |
— | ||
| replacement | |||||
|
20
|
20
03241-0616C-000 SCREW1997-05-01~1997-09-01 |
03241-0616C-000 |
from US $0.76 |
||
|
21
|
21
09148-06007-000 NUT1997-05-01~1997-09-01 |
09148-06007-000 |
US $0.91 |
||
|
22
|
22
84641-82CA0-000 WEATHERSTRIP,FR DR OPNG,R1997-05-01~1997-09-01 |
84641-82CA0-000 |
US $133.60 |
||
|
23
|
23
84651-82CA0-000 WEATHERSTRIP,FR DR OPNG,L1997-05-01~1997-09-01 |
84651-82CA0-000 |
US $133.60 |
||
