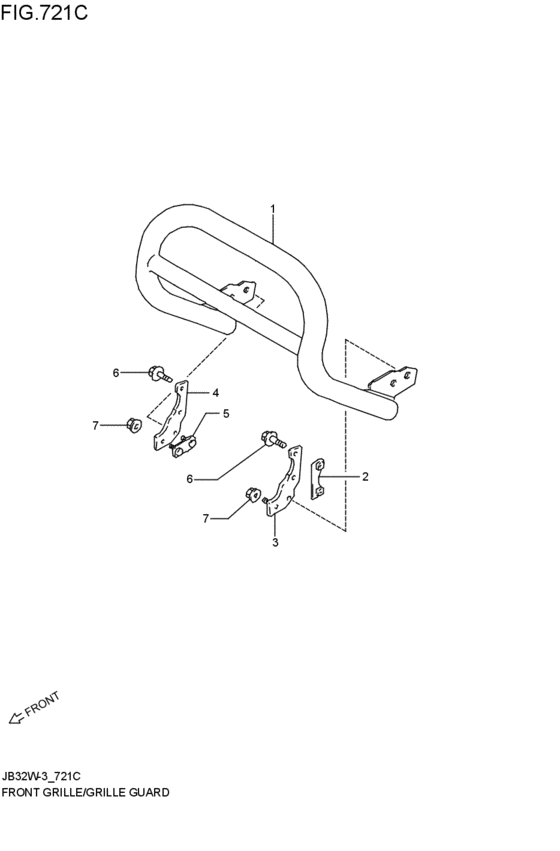

front grill / grill guard (1997-05-01~1997-09-01) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- transmission
- MT
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71650-50CA0-000
GUARD ASSY,FR
1997-05-01~1997-09-01 |
71650-50CA0-000 |
— | ||
|
2
|
2
71661-82C00-000
Reinf,front guard stay
1997-05-01~1997-09-01 |
71661-82C00-000 |
— | ||
|
3
|
3
71662-50CA0-000
Stay,front guard
1997-05-01~1997-09-01 |
71662-50CA0-000 |
— | ||
|
4
|
4
71663-50CA0-000
STAY,FRONT GUARD,R
1997-05-01~1997-09-01 |
71663-50CA0-000 |
— | ||
|
5
|
5
71664-50CA0-000 RETAINER,GRILLE GUARD1997-05-01~1997-09-01 |
71664-50CA0-000 |
US $10.05 |
||
|
6
|
6
01550-10253-000
Bolt
1997-05-01~1997-09-01 |
01550-10253-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-1025B-000 BoltBolt, rr swgarm bracket, l 1997-05-01~1997-09-01 |
01550-1025B-000 |
from US $1.28 |
||
|
6
|
6
01550-1025A-000 BoltBolt, drive gear 1997-05-01~1997-09-01 |
01550-1025A-000 |
from US $1.06 |
||
|
7
|
7
08316-10103-000
Nut
1997-05-01~1997-09-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1010B-000 NUT1997-05-01~1997-09-01 |
08316-1010B-000 |
from US $0.80 |
||
