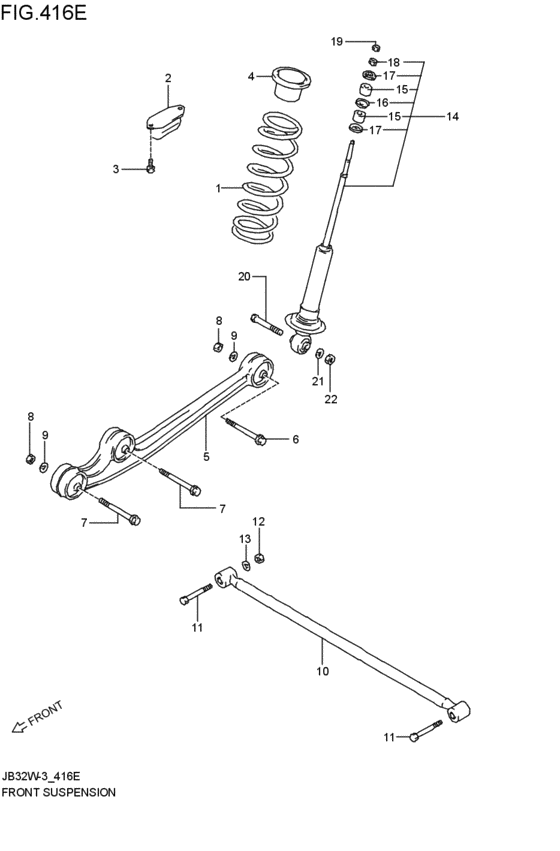

front suspension (1997-05-01~1997-09-01) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41111-70AA0-000 SPRING,FRONT COILNHK; 1997-05-01~1997-09-01 |
41111-70AA0-000 |
US $60.57 |
||
|
2
|
2
42110-82C00-000 BUMPER,FR SPRING1997-05-01~1997-09-01 |
42110-82C00-000 |
from US $17.48 |
||
|
3
|
3
01570-08163-000
Bolt
1997-05-01~1997-09-01 |
01570-08163-000 |
— | ||
| replacement | |||||
|
3
|
3
01570-0816A-000 Bolt1997-05-01~1997-09-01 |
01570-0816A-000 |
from US $1.12 |
||
|
4
|
4
41211-82CA0-000 SEAT,COIL SPRING RUBBER1997-05-01~1997-09-01 |
41211-82CA0-000 |
from US $11.05 |
||
|
5
|
5
45200-82820-000
アームセット,フロントリーディング
1997-05-01~1997-09-01 |
45200-82820-000 |
— | ||
| replacement | |||||
|
5
|
5
45200-81A02-000 ARM ASSY,FR LEADING1997-05-01~1997-09-01 |
45200-81A02-000 |
from US $150.94 |
||
|
6
|
6
09103-12048-000 BOLT(12X90)1997-05-01~1997-09-01 |
09103-12048-000 |
from US $6.17 |
||
|
7
|
7
09103-12044-000 BOLT(12X87)1997-05-01~1997-09-01 |
09103-12044-000 |
from US $3.02 |
||
|
8
|
8
08310-00123-000
Nut
1997-05-01~1997-09-01 |
08310-00123-000 |
— | ||
| replacement | |||||
|
8
|
8
08310-0012A-000 NUT1997-05-01~1997-09-01 |
08310-0012A-000 |
from US $0.76 |
||
|
9
|
9
08321-01123-000
Washer
1997-05-01~1997-09-01 |
08321-01123-000 |
— | ||
| replacement | |||||
|
9
|
9
08321-0112A-000 WASHER,LOCK1997-05-01~1997-09-01 |
08321-0112A-000 |
from US $0.76 |
||
|
10
|
10
45300-70810-000
ROD SET,FR LATERAL
1997-05-01~1997-09-01 |
45300-70810-000 |
— | ||
|
11
|
11
09100-12071-000 BOLT(12X65)1997-05-01~1997-09-01 |
09100-12071-000 |
from US $3.04 |
||
|
12
|
12
08310-00123-000
Nut
1997-05-01~1997-09-01 |
08310-00123-000 |
— | ||
| replacement | |||||
|
12
|
12
08310-0012A-000 NUT1997-05-01~1997-09-01 |
08310-0012A-000 |
from US $0.76 |
||
|
13
|
13
08321-01123-000
Washer
1997-05-01~1997-09-01 |
08321-01123-000 |
— | ||
| replacement | |||||
|
13
|
13
08321-0112A-000 WASHER,LOCK1997-05-01~1997-09-01 |
08321-0112A-000 |
from US $0.76 |
||
|
14
|
14
41600-82CA1-000 ABSORBER ASSY,FR SHOCK1997-05-01~1997-09-01 |
41600-82CA1-000 |
from US $216.11 |
||
|
15
|
15
09320-10024-000 CUSHION1997-05-01~1997-09-01 |
09320-10024-000 |
from US $3.33 |
||
|
16
|
16
09169-15002-000 WASHER1997-05-01~1997-09-01 |
09169-15002-000 |
from US $0.34 |
||
|
17
|
17
09165-10002-000 WASHER1997-05-01~1997-09-01 |
09165-10002-000 |
from US $2.08 |
||
|
18
|
18
08310-00103-000
Nut
1997-05-01~1997-09-01 |
08310-00103-000 |
— | ||
| replacements | |||||
|
18
|
18
08310-0010B-000 NUT1997-05-01~1997-09-01 |
08310-0010B-000 |
from US $0.83 |
||
|
18
|
18
08310-0010A-000 NUT1997-05-01~1997-09-01 |
08310-0010A-000 |
from US $0.80 |
||
|
19
|
19
08310-00103-000
Nut
1997-05-01~1997-09-01 |
08310-00103-000 |
— | ||
| replacements | |||||
|
19
|
19
08310-0010B-000 NUT1997-05-01~1997-09-01 |
08310-0010B-000 |
from US $0.83 |
||
|
19
|
19
08310-0010A-000 NUT1997-05-01~1997-09-01 |
08310-0010A-000 |
from US $0.80 |
||
|
20
|
20
09100-12072-000 BOLT(12X70)1997-05-01~1997-09-01 |
09100-12072-000 |
US $3.04 |
||
|
21
|
21
08321-01123-000
Washer
1997-05-01~1997-09-01 |
08321-01123-000 |
— | ||
| replacement | |||||
|
21
|
21
08321-0112A-000 WASHER,LOCK1997-05-01~1997-09-01 |
08321-0112A-000 |
from US $0.76 |
||
|
22
|
22
08310-00123-000
Nut
1997-05-01~1997-09-01 |
08310-00123-000 |
— | ||
| replacement | |||||
|
22
|
22
08310-0012A-000 NUT1997-05-01~1997-09-01 |
08310-0012A-000 |
from US $0.76 |
||
