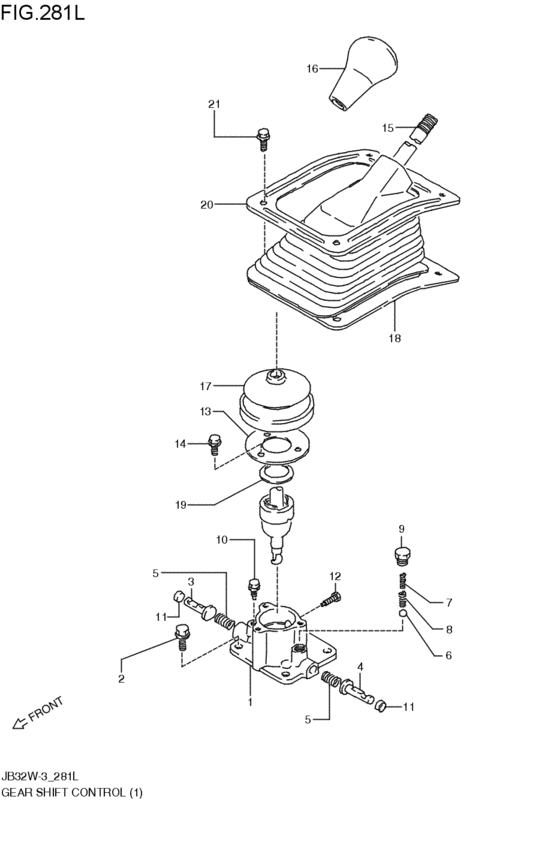

gearlever control (MT; 1997-05-01~1997-09-01) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25121-83090-000 CASE,GEAR SHF LEVERMT; 1997-05-01~1997-09-01 |
25121-83090-000 |
from US $52.70 |
||
|
2
|
2
01550-08203-000
Bolt
MT; 1997-05-01~1997-09-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0820B-000 BoltMT; 1997-05-01~1997-09-01 |
01550-0820B-000 |
from US $0.91 |
||
|
2
|
2
01550-0820A-000 BoltBolt, funnel bracket MT; 1997-05-01~1997-09-01 |
01550-0820A-000 |
from US $1.12 |
||
|
3
|
3
25341-69002-000 PIN,LOW SPEED SELECT GUIDEMT; 1997-05-01~1997-09-01 |
25341-69002-000 |
from US $6.68 |
||
|
4
|
4
25342-69002-000 PIN,REVERSE SELECT GUIDEMT; 1997-05-01~1997-09-01 |
25342-69002-000 |
from US $7.90 |
||
|
5
|
5
09440-11005-000 SPRINGMT; 1997-05-01~1997-09-01 |
09440-11005-000 |
from US $0.68 |
||
|
6
|
6
06111-10003-000 BALLMT; 1997-05-01~1997-09-01 |
06111-10003-000 |
from US $0.96 |
||
|
7
|
7
09440-07005-000 SPRINGMT; 1997-05-01~1997-09-01 |
09440-07005-000 |
from US $0.92 |
||
|
8
|
8
09440-04019-000 SPRINGMT; 1997-05-01~1997-09-01 |
09440-04019-000 |
from US $0.45 |
||
|
9
|
9
09128-10002-000 BOLT(10X9)MT; 1997-05-01~1997-09-01 |
09128-10002-000 |
from US $0.47 |
||
|
10
|
10
09128-06032-000 SCREW(6X13.5)MT; 1997-05-01~1997-09-01 |
09128-06032-000 |
from US $0.72 |
||
|
11
|
11
09241-08003-000 PLUGMT; 1997-05-01~1997-09-01 |
09241-08003-000 |
from US $0.72 |
||
|
12
|
12
09135-10005-000 BOLT(10X18.4)MT; 1997-05-01~1997-09-01 |
09135-10005-000 |
from US $1.78 |
||
|
13
|
13
25125-80001-000 COVER,GEAR SHF LEVER CASEMT; 1997-05-01~1997-09-01 |
25125-80001-000 |
from US $16.63 |
||
|
14
|
14
02162-06163-000
Screw
MT; 1997-05-01~1997-09-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
14
|
14
02162-0616B-000 SCREWBolt, adjust MT; 1997-05-01~1997-09-01 |
02162-0616B-000 |
from US $0.96 |
||
|
15
|
15
28101-83035-000 LEVER,GEAR SHFMT; 1997-05-01~1997-09-01 |
28101-83035-000 |
from US $65.77 |
||
|
16
|
16
28113-83020-000
KNOB GEAR LEVER SHIFT
MT; 1997-05-01~1997-09-01 |
28113-83020-000 |
— | ||
| replacement | |||||
|
16
|
16
28113-81A81-5PK KNOB,CONTROL LEVER(BLACK)MT; 1997-05-01~1997-09-01 |
28113-81A81-5PK |
from US $20.59 |
||
|
17
|
17
28135-80000-000 BOOT,NO.1MT; 1997-05-01~1997-09-01 |
28135-80000-000 |
from US $15.32 |
||
|
18
|
18
28104-82C00-000 BOOT,GR SHF CONT LEVERMT; 1997-05-01~1997-09-01 |
28104-82C00-000 |
from US $20.63 |
||
|
19
|
19
09164-24003-000 WASHERMT; 1997-05-01~1997-09-01 |
09164-24003-000 |
from US $1.82 |
||
|
20
|
20
28137-83000-000 COVER,GEAR SHF CONT BOOTMT; 1997-05-01~1997-09-01 |
28137-83000-000 |
from US $6.28 |
||
|
21
|
21
01550-06123-000
Bolt
MT; 1997-05-01~1997-09-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0612B-000 BoltBolt, clamp MT; 1997-05-01~1997-09-01 |
01550-0612B-000 |
from US $0.76 |
||
|
21
|
21
01550-0612A-000 BoltMT; 1997-05-01~1997-09-01 |
01550-0612A-000 |
from US $0.76 |
||
