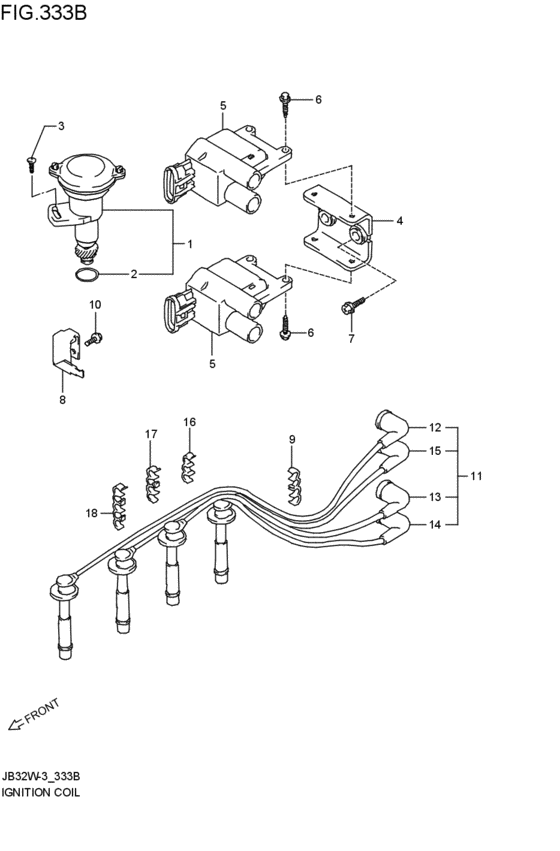

ignition coil (1997-05-01~1997-09-01) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-80C20-000 SENSOR ASSY,CRANK ANGLE1997-05-01~1997-09-01 |
33100-80C20-000 |
US $401.12 |
||
|
2
|
2
33278-85310-000 O-RING1997-05-01~1997-09-01 |
33278-85310-000 |
from US $2.74 |
||
|
3
|
3
09138-08003-000 SCREW(8X30)1997-05-01~1997-09-01 |
09138-08003-000 |
from US $1.49 |
||
|
4
|
4
33401-80C30-000
ブラケット,イグニッションコイル
1997-05-01~1997-09-01 |
33401-80C30-000 |
— | ||
|
5
|
5
33410-80C30-000
コイルアッシ,イグニツシヨン
1997-05-01~1997-09-01 |
33410-80C30-000 |
— | ||
|
6
|
6
01550-06163-000
Bolt
1997-05-01~1997-09-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0616B-000 Bolt1997-05-01~1997-09-01 |
01550-0616B-000 |
from US $0.76 |
||
|
6
|
6
01550-0616A-000 Bolt1997-05-01~1997-09-01 |
01550-0616A-000 |
from US $0.76 |
||
|
7
|
7
02162-06203-000
Bolt
1997-05-01~1997-09-01 |
02162-06203-000 |
— | ||
| replacement | |||||
|
7
|
7
02162-0620C-000 SCREW1997-05-01~1997-09-01 |
02162-0620C-000 |
from US $0.83 |
||
|
8
|
8
33885-80C00-000
ブラケット,ハイテンションコードクランプ
1997-05-01~1997-09-01 |
33885-80C00-000 |
— | ||
|
9
|
9
09408-00035-000 CLIPClamp 1997-05-01~1997-09-01 |
09408-00035-000 |
from US $1.10 |
||
|
10
|
10
02162-06103-000
Bolt
1997-05-01~1997-09-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
10
|
10
02162-0610A-000 SCREW1997-05-01~1997-09-01 |
02162-0610A-000 |
from US $0.64 |
||
|
11
|
11
33705-80C20-000
CORD SET,HT
1997-05-01~1997-09-01 |
33705-80C20-000 |
— | ||
|
12
|
12
33730-80C20-000
コード,ハイテンション,NO.2
1997-05-01~1997-09-01 |
33730-80C20-000 |
— | ||
|
13
|
13
33740-80C20-000
コード,ハイテンション,NO.3
1997-05-01~1997-09-01 |
33740-80C20-000 |
— | ||
|
14
|
14
33750-80C20-000
コード,ハイテンション,NO.4
1997-05-01~1997-09-01 |
33750-80C20-000 |
— | ||
|
15
|
15
33760-80C20-000
コード,ハイテンション,NO.5
1997-05-01~1997-09-01 |
33760-80C20-000 |
— | ||
|
16
|
16
09408-00035-000 CLIPClamp 1997-05-01~1997-09-01 |
09408-00035-000 |
from US $1.10 |
||
|
17
|
17
33884-86510-000 CLAMP1997-05-01~1997-09-01 |
33884-86510-000 |
from US $0.97 |
||
|
18
|
18
09408-00116-000 CLIP1997-05-01~1997-09-01 |
09408-00116-000 |
US $44.90 |
||
