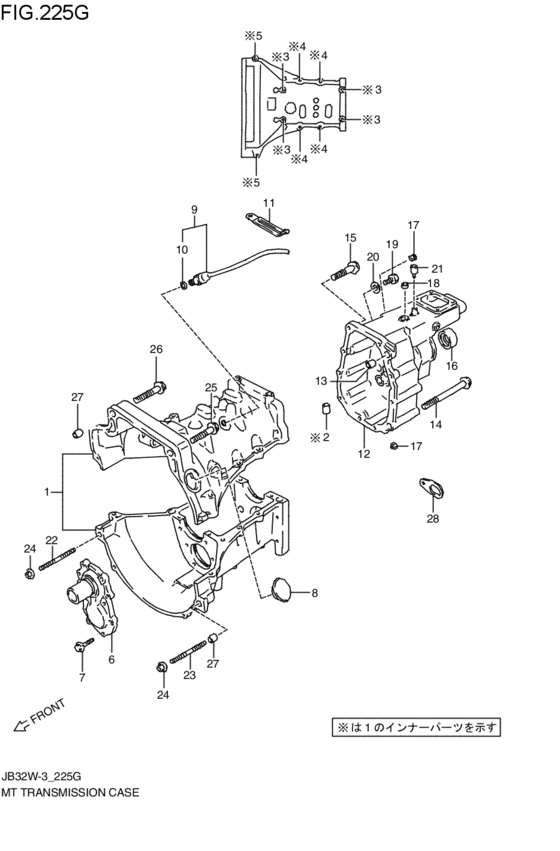

mt - transmission case (MT; 1997-05-01~1997-09-01) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-83001-000
CASE ASSY,T/M
MT; 1997-05-01~1997-09-01 |
24700-83001-000 |
— | ||
|
2
|
2
04211-13149-000 PINMT; 1997-05-01~1997-09-01 |
04211-13149-000 |
from US $1.44 |
||
|
3
|
3
09103-08131-000 BOLT(8X120)MT; 1997-05-01~1997-09-01 |
09103-08131-000 |
from US $0.86 |
||
|
4
|
4
01550-08303-000
Bolt
MT; 1997-05-01~1997-09-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0830B-000 BoltMT; 1997-05-01~1997-09-01 |
01550-0830B-000 |
from US $1.06 |
||
|
4
|
4
01550-0830A-000 BoltBolt, mount oil seal cover MT; 1997-05-01~1997-09-01 |
01550-0830A-000 |
from US $1.06 |
||
|
5
|
5
01550-08653-000
Bolt
MT; 1997-05-01~1997-09-01 |
01550-08653-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0865B-000 BoltMT; 1997-05-01~1997-09-01 |
01550-0865B-000 |
from US $3.84 |
||
|
5
|
5
01550-0865A-000 BoltBolt, oil pump (l) MT; 1997-05-01~1997-09-01 |
01550-0865A-000 |
from US $1.44 |
||
|
6
|
6
24741-83001-000 RETAINER,INPUT SFT BEARINGMT; 1997-05-01~1997-09-01 |
24741-83001-000 |
from US $33.84 |
||
|
7
|
7
09103-08152-000 BoltMT; 1997-05-01~1997-09-01 |
09103-08152-000 |
from US $1.93 |
||
| replacement | |||||
|
7
|
7
09103-08419-000 BOLT(8X25)MT; 1997-05-01~1997-09-01 |
09103-08419-000 |
from US $2.08 |
||
|
8
|
8
09250-26005-000 CAP(OD:36)MT; 1997-05-01~1997-09-01 |
09250-26005-000 |
from US $2.70 |
||
|
9
|
9
37610-83001-000 SWITCH ASSY,BACK UP LAMPMT; 1997-05-01~1997-09-01 |
37610-83001-000 |
from US $31.82 |
||
|
10
|
10
09280-11002-000 O RING(D:1.9,ID:11.4)MT; 1997-05-01~1997-09-01 |
09280-11002-000 |
from US $0.97 |
||
|
11
|
11
09404-08420-000 CLAMP(L:120 T:1.0)MT; 1997-05-01~1997-09-01 |
09404-08420-000 |
from US $1.22 |
||
|
12
|
12
24770-83005-000
ケースアッシ,エクステンション
MT; 1997-05-01~1997-09-01 |
24770-83005-000 |
— | ||
| replacement | |||||
|
12
|
12
24770-83006-000 CASE ASSY,EXTENSIONMT; 1997-05-01~1997-09-01 |
24770-83006-000 |
US $231.84 |
||
|
13
|
13
04211-13149-000 PINMT; 1997-05-01~1997-09-01 |
04211-13149-000 |
from US $1.44 |
||
|
14
|
14
09103-08132-000
Bolt (8x100)
MT; 1997-05-01~1997-09-01 |
09103-08132-000 |
— | ||
| replacement | |||||
|
14
|
14
09103-08230-000 BOLT(8X100)Bolt (8x100) MT; 1997-05-01~1997-09-01 |
09103-08230-000 |
from US $1.24 |
||
|
15
|
15
01550-08353-000
Bolt, rear
MT; 1997-05-01~1997-09-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0835B-000 BoltMT; 1997-05-01~1997-09-01 |
01550-0835B-000 |
from US $1.28 |
||
|
15
|
15
01550-0835A-000 BoltMT; 1997-05-01~1997-09-01 |
01550-0835A-000 |
from US $1.06 |
||
|
16
|
16
24780-83010-000 SEAL,EXTENSION CASE OILMT; 1997-05-01~1997-09-01 |
24780-83010-000 |
from US $6.17 |
||
|
17
|
17
09246-16010-000 PLUGマグネットツキ; MT; 1997-05-01~1997-09-01 |
09246-16010-000 |
US $4.37 |
||
| replacement | |||||
|
17
|
17
09246-16021-000 Plug,t/m Oil Drainマグネットツキ; MT; 1997-05-01~1997-09-01 |
09246-16021-000 |
from US $4.37 |
||
|
18
|
18
09241-12002-000 PLUGMT; 1997-05-01~1997-09-01 |
09241-12002-000 |
from US $1.26 |
||
|
19
|
19
01500-08123-000
Bolt
MT; 1997-05-01~1997-09-01 |
01500-08123-000 |
— | ||
| replacement | |||||
|
19
|
19
01500-0812A-000 BoltMT; 1997-05-01~1997-09-01 |
01500-0812A-000 |
from US $0.78 |
||
|
20
|
20
09168-08015-000 GASKET(8.2X14X1.6)MT; 1997-05-01~1997-09-01 |
09168-08015-000 |
from US $1.28 |
||
|
21
|
21
24821-09001-000 PLUG,T/M BREATHERPlug, breather MT; 1997-05-01~1997-09-01 |
24821-09001-000 |
from US $2.97 |
||
|
22
|
22
01421-10403-000
New Genuine Part
MT; 1997-05-01~1997-09-01 |
01421-10403-000 |
— | ||
| replacement | |||||
|
22
|
22
01421-1040A-000 BOLT,STUDMT; 1997-05-01~1997-09-01 |
01421-1040A-000 |
from US $1.52 |
||
|
23
|
23
01421-10453-000
Stud 10x45
MT; 1997-05-01~1997-09-01 |
01421-10453-000 |
— | ||
| replacement | |||||
|
23
|
23
01421-1045A-000 BOLT,STUDMT; 1997-05-01~1997-09-01 |
01421-1045A-000 |
US $16.20 |
||
|
24
|
24
08316-10103-000
Nut
MT; 1997-05-01~1997-09-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
24
|
24
08316-1010B-000 NUTMT; 1997-05-01~1997-09-01 |
08316-1010B-000 |
from US $0.80 |
||
|
25
|
25
01550-10603-000
Bolt
MT; 1997-05-01~1997-09-01 |
01550-10603-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-1060B-000 BoltMT; 1997-05-01~1997-09-01 |
01550-1060B-000 |
US $1.60 |
||
|
25
|
25
01550-1060A-000 BoltMT; 1997-05-01~1997-09-01 |
01550-1060A-000 |
from US $1.60 |
||
|
26
|
26
01550-10703-000
ボルト
MT; 1997-05-01~1997-09-01 |
01550-10703-000 |
— | ||
| replacement | |||||
|
26
|
26
01550-1070A-000 BoltMT; 1997-05-01~1997-09-01 |
01550-1070A-000 |
from US $1.60 |
||
|
27
|
27
04211-13189-000 PINMT; 1997-05-01~1997-09-01 |
04211-13189-000 |
from US $1.22 |
||
|
28
|
28
11851-62B00-000 HOOKMT; 1997-05-01~1997-09-01 |
11851-62B00-000 |
from US $1.87 |
||
