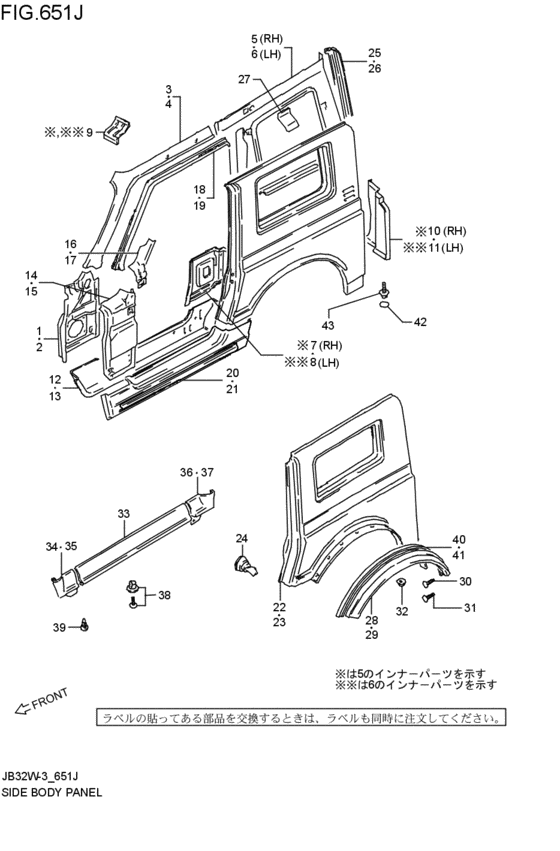

side body panel (1997-05-01~1997-09-01) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63110-82CA0-000
PANEL,FR PILLAR INNER LWR,R
1997-05-01~1997-09-01 |
63110-82CA0-000 |
— | ||
|
2
|
2
63510-82CA0-000
PANEL,FR PILLAR INNER LWR,L
1997-05-01~1997-09-01 |
63510-82CA0-000 |
— | ||
|
3
|
3
63131-82CC0-000
パネル,フロントピラーインナアッパ,ライト
1997-05-01~1997-09-01 |
63131-82CC0-000 |
— | ||
|
4
|
4
63531-82CC0-000
パネル,フロントピラーインナアッパ,レフト
1997-05-01~1997-09-01 |
63531-82CC0-000 |
— | ||
|
5
|
5
63210-82CB1-000
パネル,サイドボディインナ,ライト
1997-05-01~1997-09-01 |
63210-82CB1-000 |
— | ||
|
6
|
6
63610-82CB1-000
パネル,サイドボディインナ,レフト
1997-05-01~1997-09-01 |
63610-82CB1-000 |
— | ||
|
7
|
7
63231-82C00-000
パネル,センタピラーインナ,ライト
1997-05-01~1997-09-01 |
63231-82C00-000 |
— | ||
|
8
|
8
63631-82C00-000
パネル,センタピラーインナ,レフト
1997-05-01~1997-09-01 |
63631-82C00-000 |
— | ||
|
9
|
9
63233-80001-000 HOLDER,CENTER PIPEライト:1,レフト:1; 1997-05-01~1997-09-01 |
63233-80001-000 |
US $3.53 |
||
|
10
|
10
63310-80111-000
PANEL,RR PILLAR INNER,R
1997-05-01~1997-09-01 |
63310-80111-000 |
— | ||
|
11
|
11
63710-80111-000
PANEL,RR PILLAR INNER,L
1997-05-01~1997-09-01 |
63710-80111-000 |
— | ||
|
12
|
12
61490-80003-000 PANEL,SILL SIDE INNER,R1997-05-01~1997-09-01 |
61490-80003-000 |
US $135.20 |
||
|
13
|
13
61590-80003-000 PANEL,SILL SIDE INNER,L1997-05-01~1997-09-01 |
61590-80003-000 |
US $135.20 |
||
|
14
|
14
64110-82CA0-000
Panel,side body front,r
1997-05-01~1997-09-01 |
64110-82CA0-000 |
— | ||
|
15
|
15
64510-82CA0-000
Panel comp,side body front,l
1997-05-01~1997-09-01 |
64510-82CA0-000 |
— | ||
|
16
|
16
64117-82CA0-000
Reinf,side body front,r
1997-05-01~1997-09-01 |
64117-82CA0-000 |
— | ||
|
17
|
17
64517-82CA0-000
Reinf,side body front,l
1997-05-01~1997-09-01 |
64517-82CA0-000 |
— | ||
|
18
|
18
64131-82CA0-000 FRAME,FR SIDE,R1997-05-01~1997-09-01 |
64131-82CA0-000 |
from US $34.63 |
||
|
19
|
19
64531-82CA0-000 FRAME,FR SIDE,L1997-05-01~1997-09-01 |
64531-82CA0-000 |
US $147.94 |
||
|
20
|
20
64150-73A21-000 PANEL,SILL SIDE OUTER,R1997-05-01~1997-09-01 |
64150-73A21-000 |
from US $148.10 |
||
|
21
|
21
64550-73A21-000 PANEL,SILL SIDE OUTER,L1997-05-01~1997-09-01 |
64550-73A21-000 |
from US $148.10 |
||
|
22
|
22
64200-82CE0-000
PANEL,SIDE BODY REAR,R
1997-05-01~1997-09-01 |
64200-82CE0-000 |
— | ||
|
23
|
23
64600-82CC0-000
PANEL,SIDE BODY REAR,L
1997-05-01~1997-09-01 |
64600-82CC0-000 |
— | ||
|
24
|
24
89200-82C30-000
ボックス,フューエル,インレット
1997-05-01~1997-09-01 |
89200-82C30-000 |
— | ||
| replacement | |||||
|
24
|
24
89200-82C31-000 BOX,FUEL INLET1997-05-01~1997-09-01 |
89200-82C31-000 |
US $47.10 |
||
|
25
|
25
64310-82CA0-000
PANEL,REAR BACK OUTER,R
1997-05-01~1997-09-01 |
64310-82CA0-000 |
— | ||
|
26
|
26
64710-80100-000 PANEL,REAR BACK OUTER,L1997-05-01~1997-09-01 |
64710-80100-000 |
US $59.25 |
||
|
27
|
27
64216-80140-000
Reinforcement,assist grip
1997-05-01~1997-09-01 |
64216-80140-000 |
— | ||
|
28
|
28
64250-70A00-000 EXTENSION,RR BODY SIDE,R1997-05-01~1997-09-01 |
64250-70A00-000 |
from US $126.09 |
||
|
29
|
29
64650-70A00-000 EXTENSION,RR BODY SIDE,L1997-05-01~1997-09-01 |
64650-70A00-000 |
from US $123.98 |
||
|
30
|
30
09139-06036-000 SCREW(6X20)1997-05-01~1997-09-01 |
09139-06036-000 |
from US $0.96 |
||
|
31
|
31
02142-06163-000
Screw
1997-05-01~1997-09-01 |
02142-06163-000 |
— | ||
| replacement | |||||
|
31
|
31
02142-0616A-000 SCREW1997-05-01~1997-09-01 |
02142-0616A-000 |
from US $0.76 |
||
|
32
|
32
08316-10063-000
Nut
1997-05-01~1997-09-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
32
|
32
08316-1006B-000 NUT1997-05-01~1997-09-01 |
08316-1006B-000 |
from US $0.76 |
||
|
33
|
33
77611-83021-000 MOLDING,SIDE1997-05-01~1997-09-01 |
77611-83021-000 |
US $56.70 |
||
|
34
|
34
77614-70A00-000 MOLDING,SIDE CNR,L1997-05-01~1997-09-01 |
77614-70A00-000 |
from US $21.26 |
||
|
35
|
35
77613-70A00-000 MOLDING,SIDE CNR,R1997-05-01~1997-09-01 |
77613-70A00-000 |
from US $21.26 |
||
|
36
|
36
77613-70A00-000 MOLDING,SIDE CNR,R1997-05-01~1997-09-01 |
77613-70A00-000 |
from US $21.26 |
||
|
37
|
37
77614-70A00-000 MOLDING,SIDE CNR,L1997-05-01~1997-09-01 |
77614-70A00-000 |
from US $21.26 |
||
|
38
|
38
09409-07303-5ES CLIP(BLACK)ブラック; 1997-05-01~1997-09-01 |
09409-07303-5ES |
from US $1.52 |
||
|
39
|
39
09409-07022-000 CLIP1997-05-01~1997-09-01 |
09409-07022-000 |
from US $1.53 |
||
|
40
|
40
77140-70A00-5WA MOLDING,BODY SIDE(GRAY)BODY:37V,07B,38B,27G,0AA,0DM 0DG,19H,1FH,1FG グレ-; 1997-05-01~1997-09-01 |
77140-70A00-5WA |
from US $30.83 |
||
|
41
|
41
77130-70A00-5WA MOLDING,BODY SIDE(GRAY)BODY:37V,07B,38B,27G,0AA,0DM 0DG,19H,1FH,1FG グレ-; 1997-05-01~1997-09-01 |
77130-70A00-5WA |
from US $30.83 |
||
|
42
|
42
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole 1997-05-01~1997-09-01 |
84761-50X50-000 |
from US $6.72 |
||
|
43
|
43
01550-08163-000
Bolt, holder
1997-05-01~1997-09-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
43
|
43
01550-0816B-000 Bolt1997-05-01~1997-09-01 |
01550-0816B-000 |
from US $0.91 |
||
|
43
|
43
01550-0816A-000 BoltBolt, rear 1997-05-01~1997-09-01 |
01550-0816A-000 |
from US $0.91 |
||
