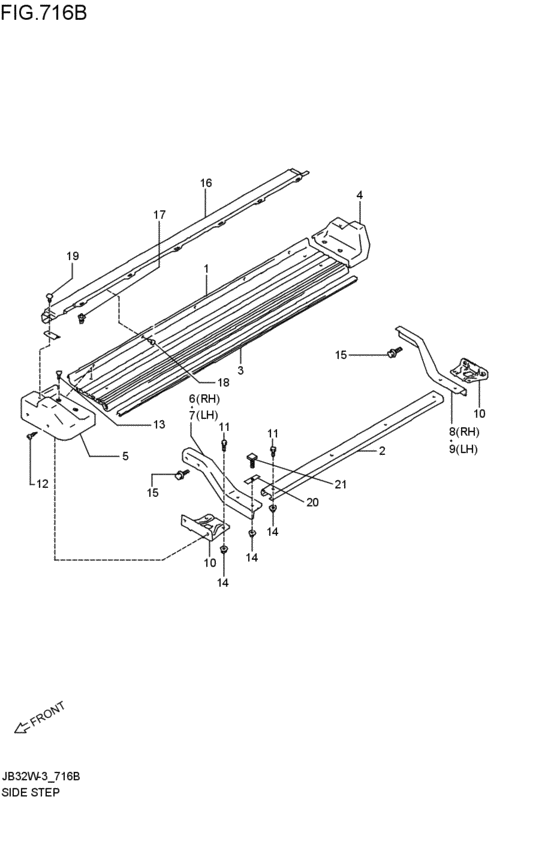

side step (1997-05-01~1997-09-01) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71671-82C01-000
Step,side
1997-05-01~1997-09-01 |
71671-82C01-000 |
— | ||
|
2
|
2
71672-82C00-000
フレーム,サイドステップ
1997-05-01~1997-09-01 |
71672-82C00-000 |
— | ||
|
3
|
3
71673-82C01-000
モールディング,サイドステップ
1997-05-01~1997-09-01 |
71673-82C01-000 |
— | ||
|
4
|
4
71674-82C00-000
PROTECTOR,SIDE STEP NO.1
1997-05-01~1997-09-01 |
71674-82C00-000 |
— | ||
|
5
|
5
71675-82C00-000
PROTECTOR,SIDE STEP NO.2
1997-05-01~1997-09-01 |
71675-82C00-000 |
— | ||
|
6
|
6
71676-82C00-000
ステー,サイドステップフロント,ライト
1997-05-01~1997-09-01 |
71676-82C00-000 |
— | ||
|
7
|
7
71686-82C00-000
ステー,サイドステップフロント,レフト
1997-05-01~1997-09-01 |
71686-82C00-000 |
— | ||
|
8
|
8
71677-82C00-000
ステー,サイドステップリヤ,ライト
1997-05-01~1997-09-01 |
71677-82C00-000 |
— | ||
|
9
|
9
71687-82C00-000
ステー,サイドステップリヤ,レフト
1997-05-01~1997-09-01 |
71687-82C00-000 |
— | ||
|
10
|
10
71678-82C00-000
ステー,サイドステッププロテクタ
1997-05-01~1997-09-01 |
71678-82C00-000 |
— | ||
|
11
|
11
01500-06163-000
Bolt
1997-05-01~1997-09-01 |
01500-06163-000 |
— | ||
| replacement | |||||
|
11
|
11
01500-0616A-000 Bolt1997-05-01~1997-09-01 |
01500-0616A-000 |
from US $0.76 |
||
|
12
|
12
02142-06163-000
Screw
1997-05-01~1997-09-01 |
02142-06163-000 |
— | ||
| replacement | |||||
|
12
|
12
02142-0616A-000 SCREW1997-05-01~1997-09-01 |
02142-0616A-000 |
from US $0.76 |
||
|
13
|
13
03141-06123-000
Screw 6x12
1997-05-01~1997-09-01 |
03141-06123-000 |
— | ||
| replacement | |||||
|
13
|
13
03141-0612A-000 SCREW1997-05-01~1997-09-01 |
03141-0612A-000 |
US $0.76 |
||
|
14
|
14
08316-10063-000
Nut
1997-05-01~1997-09-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1006B-000 NUT1997-05-01~1997-09-01 |
08316-1006B-000 |
from US $0.76 |
||
|
15
|
15
01550-08163-000
Bolt, holder
1997-05-01~1997-09-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0816B-000 Bolt1997-05-01~1997-09-01 |
01550-0816B-000 |
from US $0.91 |
||
|
15
|
15
01550-0816A-000 BoltBolt, rear 1997-05-01~1997-09-01 |
01550-0816A-000 |
from US $0.91 |
||
|
16
|
16
77612-82C01-000
Protector,side sill lower
1997-05-01~1997-09-01 |
77612-82C01-000 |
— | ||
|
17
|
17
09409-07303-5ES CLIP(BLACK)ブラック; 1997-05-01~1997-09-01 |
09409-07303-5ES |
US $1.52 |
||
|
18
|
18
09409-05311-000
CLIP
1997-05-01~1997-09-01 |
09409-05311-000 |
— | ||
|
19
|
19
09409-10303-5PK
クリップ(ブラック)
ブラック; 1997-05-01~1997-09-01 |
09409-10303-5PK |
— | ||
| replacement | |||||
|
19
|
19
09409-10303-5ES CLIP(BLACK)ブラック; 1997-05-01~1997-09-01 |
09409-10303-5ES |
US $14.40 |
||
|
20
|
20
71679-82C00-000 PLATE1997-05-01~1997-09-01 |
71679-82C00-000 |
US $3.72 |
||
|
21
|
21
01500-06163-000
Bolt
1997-05-01~1997-09-01 |
01500-06163-000 |
— | ||
| replacement | |||||
|
21
|
21
01500-0616A-000 Bolt1997-05-01~1997-09-01 |
01500-0616A-000 |
from US $0.76 |
||
