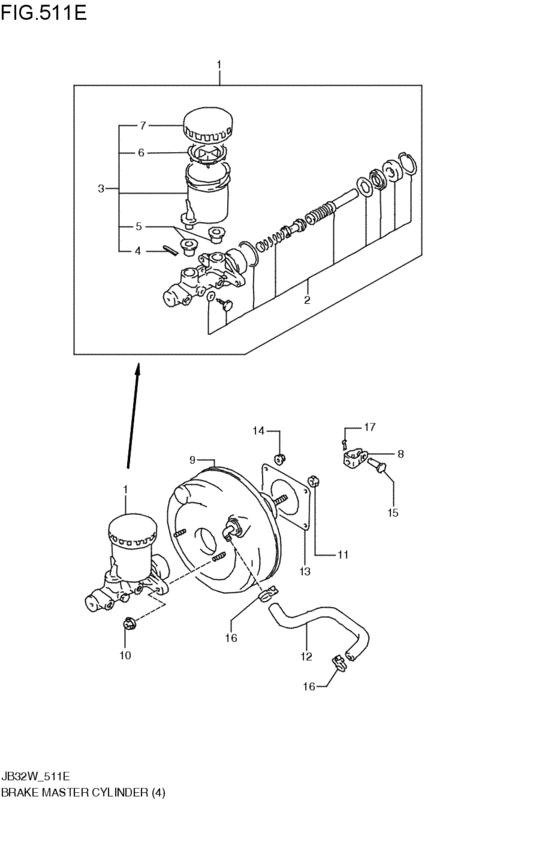

brakes master cylinder (ABSノゾク; SB; 1995-11-01~1997-03-01) Diagram Suzuki JIMNY
- Year
- 1996 - 1997
- Sales region
- Japan
- transmission
- 5MT
- grade
- SB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-56B10-000
Cylinder assy,brake master
ABSノゾク; SB; 1995-11-01~1997-03-01 |
51100-56B10-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-56B11-000 CYLINDER ASSY,BRAKE MASTERABSノゾク; SB; 1995-11-01~1997-03-01 |
51100-56B11-000 |
from US $528.46 |
||
|
2
|
2
51100-70841-000
Piston set,brake master
ABSノゾク; SB; 1995-11-01~1997-03-01 |
51100-70841-000 |
— | ||
| replacement | |||||
|
2
|
2
51100-70842-000 PISTON SET,BRAKE MASTERABSノゾク; SB; 1995-11-01~1997-03-01 |
51100-70842-000 |
from US $60 |
||
|
3
|
3
51200-60A60-000
リザーバアッシ,マスタシリンダ
ABSノゾク; SB; 1995-11-01~1997-03-01 |
51200-60A60-000 |
— | ||
| replacement | |||||
|
3
|
3
51200-60A61-000 RESERVOIR ASSY,MASTER CYLINDERABSノゾク; SB; 1995-11-01~1997-03-01 |
51200-60A61-000 |
US $136.90 |
||
|
4
|
4
09205-05016-000 PIN,SPRING(5X32)ABSノゾク; SB; 1995-11-01~1997-03-01 |
09205-05016-000 |
from US $0.99 |
||
|
5
|
5
51197-85520-000 GROMMET,RESERVOIR CONNECTORABSノゾク; SB; 1995-11-01~1997-03-01 |
51197-85520-000 |
from US $2.72 |
||
|
6
|
6
51234-60A20-000 STRAINER,MASTER CYLINDERABSノゾク; SB; 1995-11-01~1997-03-01 |
51234-60A20-000 |
from US $5.02 |
||
|
7
|
7
51220-60A20-000 CAP,RESERVOIRABSノゾク; SB; 1995-11-01~1997-03-01 |
51220-60A20-000 |
from US $22.40 |
||
|
8
|
8
51182-60A60-000
クレビス,シリンダプッシュロッド
ABSノゾク; SB; 1995-11-01~1997-03-01 |
51182-60A60-000 |
— | ||
| replacement | |||||
|
8
|
8
51182-77E00-000 CLEVIS,CYLINDER PUSH RODABSノゾク; SB; 1995-11-01~1997-03-01 |
51182-77E00-000 |
from US $6.37 |
||
|
9
|
9
51300-70AA0-000
BOOSTER ASSY,BRAKE MASTER
ABSノゾク; SB; 1995-11-01~1997-03-01 |
51300-70AA0-000 |
— | ||
|
10
|
10
09159-08075-000 NUTABSノゾク; SB; 1995-11-01~1997-03-01 |
09159-08075-000 |
from US $0.91 |
||
|
11
|
11
09140-10019-000 NUTABSノゾク; SB; 1995-11-01~1997-03-01 |
09140-10019-000 |
US $9.20 |
||
|
12
|
12
51010-70AA0-000
ホース,ブレーキバキューム
ABSノゾク; SB; 1995-11-01~1997-03-01 |
51010-70AA0-000 |
— | ||
|
13
|
13
51132-82003-000 PACKING,BRAKE MASTER CYLINDERABSノゾク; SB; 1995-11-01~1997-03-01 |
51132-82003-000 |
from US $1.60 |
||
|
14
|
14
09159-08069-000
Nut
ABSノゾク; SB; 1995-11-01~1997-03-01 |
09159-08069-000 |
— | ||
| replacement | |||||
|
14
|
14
09159-08135-000 NUTABSノゾク; SB; 1995-11-01~1997-03-01 |
09159-08135-000 |
from US $0.81 |
||
|
15
|
15
09200-10021-000 PINABSノゾク; SB; 1995-11-01~1997-03-01 |
09200-10021-000 |
from US $1.24 |
||
|
16
|
16
09401-15404-000 CLIPABSノゾク; SB; 1995-11-01~1997-03-01 |
09401-15404-000 |
from US $1.33 |
||
|
17
|
17
09385-10006-000 PIN,SNAPPin ABSノゾク; SB; 1995-11-01~1997-03-01 |
09385-10006-000 |
from US $0.97 |
||
