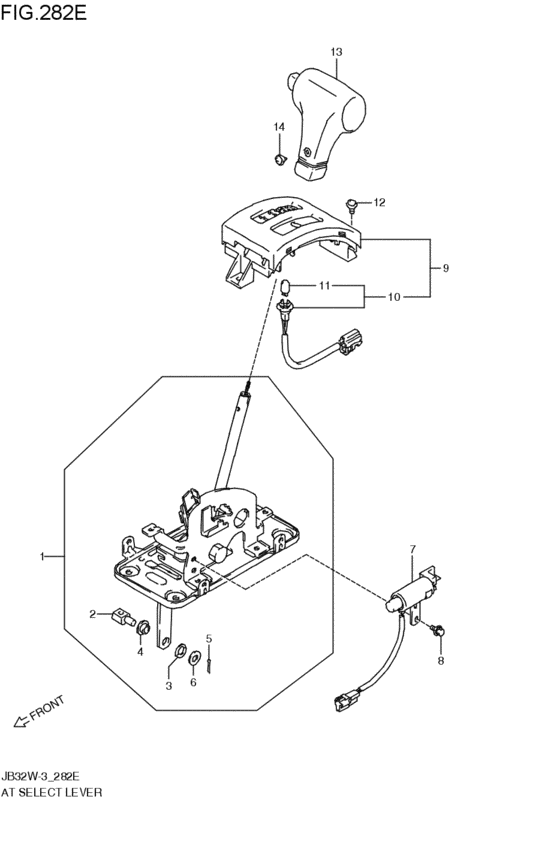

select lever (AT; 1997-05-01~1997-09-01) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28110-83C20-000
レバーアッシ,セレクト
AT; 1997-05-01~1997-09-01 |
28110-83C20-000 |
— | ||
|
2
|
2
28291-85600-000 JOINT,T/F GR SHIFTAT; 1997-05-01~1997-09-01 |
28291-85600-000 |
from US $2.72 |
||
|
3
|
3
09164-08002-000 WASHERAT; 1997-05-01~1997-09-01 |
09164-08002-000 |
from US $0.50 |
||
|
4
|
4
09305-08011-000 BUSHAT; 1997-05-01~1997-09-01 |
09305-08011-000 |
from US $0.79 |
||
|
5
|
5
04111-25158-000
Pin 25x15
AT; 1997-05-01~1997-09-01 |
04111-25158-000 |
— | ||
| replacement | |||||
|
5
|
5
04111-2515A-000 PINAT; 1997-05-01~1997-09-01 |
04111-2515A-000 |
from US $0.77 |
||
|
6
|
6
08322-01083-000
WASHER
AT; 1997-05-01~1997-09-01 |
08322-01083-000 |
— | ||
| replacements | |||||
|
6
|
6
08322-0108B-000 WASHERAT; 1997-05-01~1997-09-01 |
08322-0108B-000 |
from US $0.96 |
||
|
6
|
6
08322-0108A-000 WASHERAT; 1997-05-01~1997-09-01 |
08322-0108A-000 |
from US $0.96 |
||
|
7
|
7
28610-51E30-000 SOLENOID,SHIFT LOCKAT; 1997-05-01~1997-09-01 |
28610-51E30-000 |
US $64.03 |
||
|
8
|
8
28178-51E30-000
Bolt, solenoid
AT; 1997-05-01~1997-09-01 |
28178-51E30-000 |
— | ||
| replacement | |||||
|
8
|
8
09118-05006-000 BOLT(5X8)AT; 1997-05-01~1997-09-01 |
09118-05006-000 |
US $19.90 |
||
|
9
|
9
28150-83C12-000
インジケータアッシ,セレクトレバー
AT; 1997-05-01~1997-09-01 |
28150-83C12-000 |
— | ||
|
10
|
10
28159-83C10-000
ランプアッシ,イルミネーション
AT; 1997-05-01~1997-09-01 |
28159-83C10-000 |
— | ||
|
11
|
11
09471-12195-000 BULB(12V5W)AT; 1997-05-01~1997-09-01 |
09471-12195-000 |
from US $1.40 |
||
|
12
|
12
02142-05103-000
Screw 5x10
AT; 1997-05-01~1997-09-01 |
02142-05103-000 |
— | ||
| replacement | |||||
|
12
|
12
02142-0510B-000 SCREWBolt AT; 1997-05-01~1997-09-01 |
02142-0510B-000 |
from US $0.72 |
||
|
13
|
13
28160-61A10-5PK
KNOB ASSY,SELECT LEVER
ブラック; AT; 1997-05-01~1997-09-01 |
28160-61A10-5PK |
— | ||
|
14
|
14
09125-05117-000 SCREW(5X6)Screw (5x6) AT; 1997-05-01~1997-09-01 |
09125-05117-000 |
from US $0.72 |
||
