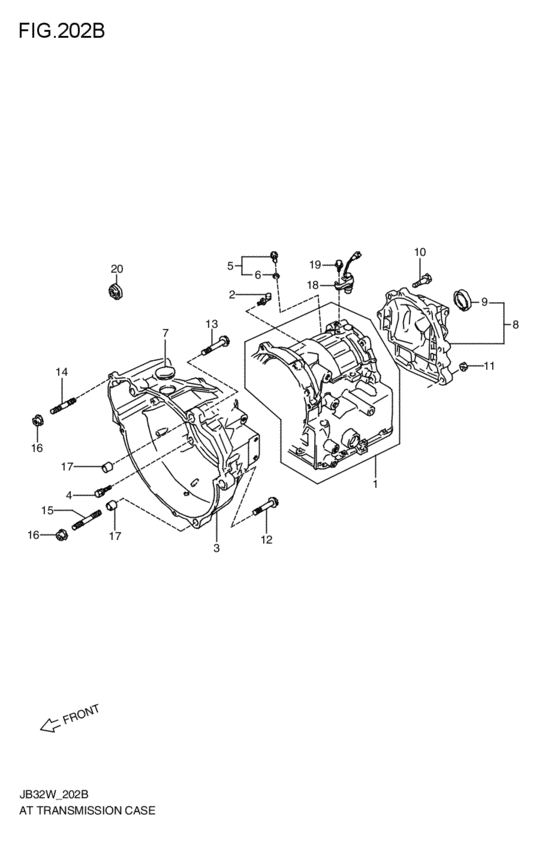

at - transmission case (3AT; 1995-11-01~1997-03-01) Diagram Suzuki JIMNY
- Year
- 1996 - 1997
- Sales region
- Japan
- transmission
- 3AT
- grade
- SB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24710-83CT0-000
ケースセット,トランスミッション
3AT; 1995-11-01~1997-03-01 |
24710-83CT0-000 |
— | ||
|
2
|
2
24717-83C00-000 PLUG,BREATHER3AT; 1995-11-01~1997-03-01 |
24717-83C00-000 |
from US $6.30 |
||
|
3
|
3
24721-81C01-000
ハウジング,コンバータ
3AT; 1995-11-01~1997-03-01 |
24721-81C01-000 |
— | ||
|
4
|
4
24883-85500-000 BOLT,HOUSING3AT; 1995-11-01~1997-03-01 |
24883-85500-000 |
US $2.50 |
||
|
5
|
5
24820-62B00-000 PLUG,BOOSTER3AT; 1995-11-01~1997-03-01 |
24820-62B00-000 |
from US $2.48 |
||
|
6
|
6
24755-78130-000 O-RING3AT; 1995-11-01~1997-03-01 |
24755-78130-000 |
US $0.92 |
||
|
7
|
7
09250-30003-000 CAP(OD:36)3AT; 1995-11-01~1997-03-01 |
09250-30003-000 |
from US $2.08 |
||
|
8
|
8
24770-81CT0-000
HOUSING SET,EXTENSION
3AT; 1995-11-01~1997-03-01 |
24770-81CT0-000 |
— | ||
|
9
|
9
24774-81C00-000 SEAL,EXTENSION CASE OIL3AT; 1995-11-01~1997-03-01 |
24774-81C00-000 |
from US $12.76 |
||
|
10
|
10
01570-08353-000
Bolt
3AT; 1995-11-01~1997-03-01 |
01570-08353-000 |
— | ||
| replacement | |||||
|
10
|
10
01570-0835A-000 Bolt3AT; 1995-11-01~1997-03-01 |
01570-0835A-000 |
from US $5.07 |
||
|
11
|
11
08310-00083-000
Nut
3AT; 1995-11-01~1997-03-01 |
08310-00083-000 |
— | ||
| replacements | |||||
|
11
|
11
08310-0008B-000 NUT3AT; 1995-11-01~1997-03-01 |
08310-0008B-000 |
from US $0.96 |
||
|
11
|
11
08310-0008A-000 NUTNut, bead stopper 3AT; 1995-11-01~1997-03-01 |
08310-0008A-000 |
from US $0.76 |
||
|
12
|
12
01550-10603-000
Bolt
3AT; 1995-11-01~1997-03-01 |
01550-10603-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-1060B-000 Bolt3AT; 1995-11-01~1997-03-01 |
01550-1060B-000 |
US $1.60 |
||
|
12
|
12
01550-1060A-000 Bolt3AT; 1995-11-01~1997-03-01 |
01550-1060A-000 |
from US $1.60 |
||
|
13
|
13
01550-10703-000
ボルト
3AT; 1995-11-01~1997-03-01 |
01550-10703-000 |
— | ||
| replacement | |||||
|
13
|
13
01550-1070A-000 Bolt3AT; 1995-11-01~1997-03-01 |
01550-1070A-000 |
from US $1.60 |
||
|
14
|
14
01421-10403-000
New Genuine Part
3AT; 1995-11-01~1997-03-01 |
01421-10403-000 |
— | ||
| replacement | |||||
|
14
|
14
01421-1040A-000 BOLT,STUD3AT; 1995-11-01~1997-03-01 |
01421-1040A-000 |
from US $1.52 |
||
|
15
|
15
01421-10503-000
Stud bolt (l:50)
3AT; 1995-11-01~1997-03-01 |
01421-10503-000 |
— | ||
| replacement | |||||
|
15
|
15
01421-1050A-000 BOLT,STUD3AT; 1995-11-01~1997-03-01 |
01421-1050A-000 |
from US $1.67 |
||
|
16
|
16
08316-10103-000
Nut
3AT; 1995-11-01~1997-03-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
16
|
16
08316-1010B-000 NUT3AT; 1995-11-01~1997-03-01 |
08316-1010B-000 |
from US $0.80 |
||
|
17
|
17
04211-13189-000 PIN3AT; 1995-11-01~1997-03-01 |
04211-13189-000 |
from US $1.22 |
||
|
18
|
18
26141-62D01-000 SENSOR,SPEED3AT; 1995-11-01~1997-03-01 |
26141-62D01-000 |
from US $78.84 |
||
|
19
|
19
26599-85500-000 BOLT,SOLENOID3AT; 1995-11-01~1997-03-01 |
26599-85500-000 |
US $1.77 |
||
|
20
|
20
72491-60A00-000 CAP,CLUTCH CABLE HOLE3AT; 1995-11-01~1997-03-01 |
72491-60A00-000 |
US $2.72 |
||
