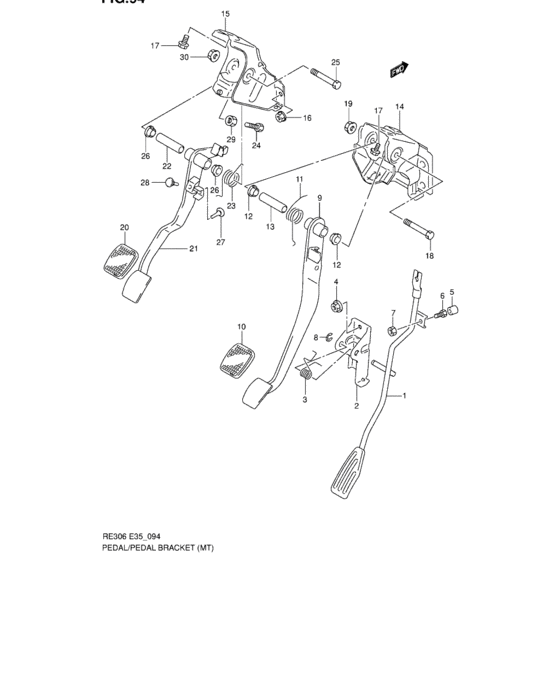

Pedal/pedal bracket (MT) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Asia
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49410-74G22-000 PEDAL,ACCELERATOR |
49410-74G22-000 |
US $38.27 |
||
|
2
|
2
49510-80G50-000 BRACKET,ACCELERATOR PEDAL |
49510-80G50-000 |
US $15.90 |
||
|
3
|
3
09448-15016-000 SPRING |
09448-15016-000 |
from US $1.46 |
||
|
4
|
4
09159-06076-000 NUT |
09159-06076-000 |
from US $0.99 |
||
|
5
|
5
09251-05007-000 CAP(OD:13.6) |
09251-05007-000 |
US $26.50 |
||
|
6
|
6
09100-06150-000 BOLT(6X31)Bolt, adjuster |
09100-06150-000 |
from US $0.65 |
||
|
7
|
7
08310-00063-000
Nut
|
08310-00063-000 |
— | ||
| replacements | |||||
|
7
|
7
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
7
|
7
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
8
|
8
08332-11073-000
E ring
|
08332-11073-000 |
— | ||
| replacement | |||||
|
8
|
8
08332-1107A-000 E RING |
08332-1107A-000 |
from US $0.96 |
||
|
9
|
9
49610-74G00-000 PEDAL,BRAKE |
49610-74G00-000 |
US $55.94 |
||
|
10
|
10
49751-79001-000
Pad, pedal
|
49751-79001-000 |
— | ||
| replacement | |||||
|
10
|
10
49751-58J00-000 PAD,PEDAL |
49751-58J00-000 |
from US $2.84 |
||
|
11
|
11
49691-54C00-000 SPRING,BRAKE PEDAL |
49691-54C00-000 |
US $4.56 |
||
|
12
|
12
09307-13005-000 BUSHBushing |
09307-13005-000 |
from US $2.88 |
||
|
13
|
13
49871-80F00-000 SPACER,PEDAL SHAFT |
49871-80F00-000 |
US $4.20 |
||
|
14
|
14
49710-74G12-000
BRACKET,BRAKE PEDAL
|
49710-74G12-000 |
— | ||
|
15
|
15
49720-84G20-000 BRACKET,CLUTCH PEDAL |
49720-84G20-000 |
US $71.76 |
||
|
16
|
16
09159-08127-000 NUT |
09159-08127-000 |
US $9.90 |
||
|
17
|
17
01551-08163-000
Bolt
|
01551-08163-000 |
— | ||
| replacements | |||||
|
17
|
17
01551-0816C-000 Bolt |
01551-0816C-000 |
from US $0.96 |
||
|
17
|
17
01551-0816A-000
ボルト
|
01551-0816A-000 |
— | ||
|
18
|
18
09100-10304-000 BOLT(10X65) |
09100-10304-000 |
US $35.30 |
||
|
19
|
19
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
19
|
19
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
20
|
20
49751-79001-000
Pad, pedal
|
49751-79001-000 |
— | ||
| replacement | |||||
|
20
|
20
49751-58J00-000 PAD,PEDAL |
49751-58J00-000 |
from US $2.84 |
||
|
21
|
21
49810-75H20-000 PEDAL,CLUTCH |
49810-75H20-000 |
US $45.63 |
||
|
22
|
22
49871-80F00-000 SPACER,PEDAL SHAFT |
49871-80F00-000 |
US $4.20 |
||
|
23
|
23
49891-50E00-000 SPRING,CLUTCH PEDAL |
49891-50E00-000 |
US $5.30 |
||
|
24
|
24
09100-06150-000 BOLT(6X31)Bolt, adjuster |
09100-06150-000 |
from US $0.65 |
||
|
25
|
25
09100-10304-000 BOLT(10X65) |
09100-10304-000 |
US $35.30 |
||
|
26
|
26
09307-13005-000 BUSHBushing |
09307-13005-000 |
from US $2.88 |
||
|
27
|
27
09321-06026-000 CUSHION |
09321-06026-000 |
from US $1.10 |
||
|
28
|
28
09321-06033-000 CUSHION |
09321-06033-000 |
from US $1.37 |
||
|
29
|
29
08310-00063-000
Nut
|
08310-00063-000 |
— | ||
| replacements | |||||
|
29
|
29
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
29
|
29
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
30
|
30
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
30
|
30
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
