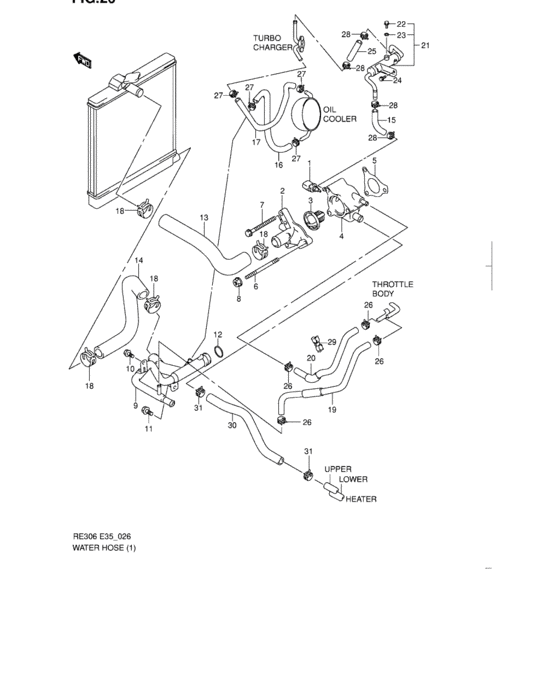

Water hose (TYPE 1,2,3) Diagram Suzuki KEI/SWIFT
- Year
- -
- Sales region
- Asia
- drive
- 2WD
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13650-50G01-000 Sensor,water Temp |
13650-50G01-000 |
from US $70.76 |
||
|
2
|
2
17561-75F00-000
CAP,WATER THERMOSTAT
|
17561-75F00-000 |
— | ||
|
3
|
3
17670-76G00-000 THERMOSTAT,WATER 82 DEG |
17670-76G00-000 |
from US $24.32 |
||
|
4
|
4
17690-75FV1-000
CASE,THERMOSTAT
|
17690-75FV1-000 |
— | ||
|
5
|
5
17699-73G01-000 GASKET,THERMOSTAT CASEGasket, thermostat case |
17699-73G01-000 |
from US $3.74 |
||
|
6
|
6
01421-08753-000
Stud bolt
|
01421-08753-000 |
— | ||
| replacement | |||||
|
6
|
6
01421-0875A-000 BOLT,STUD |
01421-0875A-000 |
from US $6.49 |
||
|
7
|
7
01550-08803-000
Bolt (8x80)
|
01550-08803-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0880B-000 BoltBolt, muffler bracket & stand |
01550-0880B-000 |
from US $3.05 |
||
|
7
|
7
01550-0880A-000 Bolt |
01550-0880A-000 |
from US $1.67 |
||
|
8
|
8
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
9
|
9
17830-78GV0-000
Pipe, water inlet
|
17830-78GV0-000 |
— | ||
| replacement | |||||
|
9
|
9
17830-78GVV-000 PIPE,WATER INLET |
17830-78GVV-000 |
US $91.63 |
||
|
10
|
10
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
10
|
10
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
11
|
11
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0816B-000 Bolt |
01550-0816B-000 |
from US $0.91 |
||
|
11
|
11
01550-0816A-000 BoltBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
12
|
12
17849-53E00-000 O-RING,WATER INLET PIPEO ring, water inlet pipe |
17849-53E00-000 |
from US $1.52 |
||
|
13
|
13
17852-78G00-000 HOSE,RADIATOR INLET |
17852-78G00-000 |
US $24 |
||
|
14
|
14
17854-78G10-000 HOSE,RDTR OUTLET |
17854-78G10-000 |
US $26.50 |
||
|
15
|
15
17856-78G51-000 HOSE,THERMO TO TANK |
17856-78G51-000 |
US $10.64 |
||
|
16
|
16
17857-73G01-000 HOSE,O/C TO INLET PIPE |
17857-73G01-000 |
US $10.93 |
||
|
17
|
17
17858-73G10-000 HOSE,TURBO TO OIL COOLER |
17858-73G10-000 |
US $13.84 |
||
|
18
|
18
09402-32502-000 CLAMP |
09402-32502-000 |
from US $3.96 |
||
|
19
|
19
17958-78G50-000
Hose, throt outlet
|
17958-78G50-000 |
— | ||
| replacement | |||||
|
19
|
19
17958-78G51-000 HOSE,WTR THROT OUTLET |
17958-78G51-000 |
US $17.96 |
||
|
20
|
20
17959-78G50-000 HOSE,WTR THROT INLET |
17959-78G50-000 |
US $15.42 |
||
|
21
|
21
17960-78G53-000
タンクアッシ,ターボウォータ
|
17960-78G53-000 |
— | ||
| replacement | |||||
|
21
|
21
17960-78G5V-000 TANK ASSY,TURBO WATER |
17960-78G5V-000 |
US $45.26 |
||
|
22
|
22
17568-50F00-000 UNION BOLT,AIR VENTBolt, thermostat cover |
17568-50F00-000 |
from US $2.08 |
||
|
23
|
23
09168-06026-000 GASKET(6.4X11.5X0.8) |
09168-06026-000 |
from US $0.91 |
||
|
24
|
24
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
24
|
24
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
25
|
25
09356-90161-600 HOSE(9X16X600)L:600->80 |
09356-90161-600 |
from US $22.05 |
||
|
26
|
26
09401-12410-000 CLIPClip, filter outlet |
09401-12410-000 |
from US $1.35 |
||
|
27
|
27
09401-14404-000 CLIP |
09401-14404-000 |
from US $3.59 |
||
|
27
|
27
09401-14405-000 CLIPHN21S-110026~,HN21S-614814~ |
09401-14405-000 |
US $12.50 |
||
|
28
|
28
09401-14405-000 CLIP |
09401-14405-000 |
US $12.50 |
||
|
29
|
29
09408-00173-000 CLAMP |
09408-00173-000 |
US $26.90 |
||
|
30
|
30
17871-78G11-000 HOSE,HTR INLET |
17871-78G11-000 |
US $11.67 |
||
|
31
|
31
09401-18403-000 CLIPClip, heater hose |
09401-18403-000 |
from US $1.53 |
||
