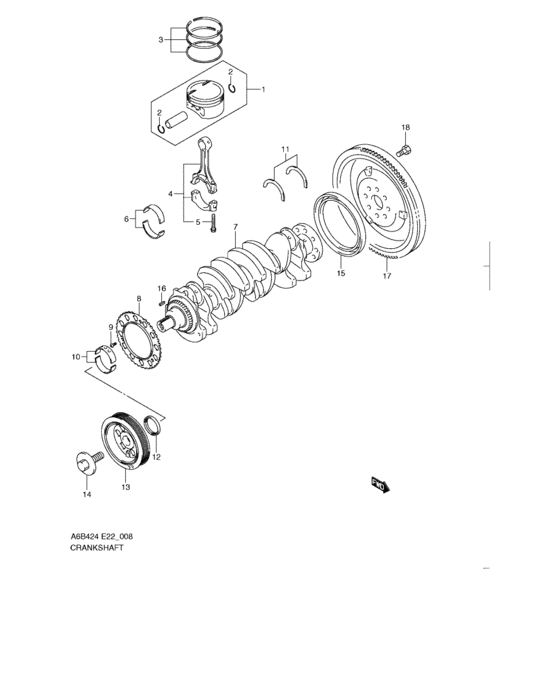

Crankshaft (CRANKSHAFT) Diagram Suzuki KIZASHI
- Year
- -
- Sales region
- Pacific
- drive
- 2WD
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-78831-0A0 PISTON SET,MARK 1MARK 1 |
12100-78831-0A0 |
from US $116.69 |
||
|
1
|
1
12100-78831-0B0 PISTON SET,MARK 2MARK 2 |
12100-78831-0B0 |
from US $80.59 |
||
|
2
|
2
09381-21002-000 RING,SNAP |
09381-21002-000 |
from US $0.93 |
||
|
3
|
3
12140-78K00-000 RING SET,PISTON,Germany,Australia,Israel |
12140-78K00-000 |
from US $79.34 |
||
|
3
|
3
12140-78K50-000 RING SET,PISTONChile,Sinagpore,Saudi Arabia,Russia |
12140-78K50-000 |
from US $66.24 |
||
|
4
|
4
12160-78K00-000 Connrod assy |
12160-78K00-000 |
US $127.08 |
||
| replacement | |||||
|
4
|
4
12160-78K20-000 CONNROD ASSY |
12160-78K20-000 |
from US $127.08 |
||
|
5
|
5
12163-78K00-000 BOLT,CONNROD |
12163-78K00-000 |
from US $2.13 |
||
|
6
|
6
12100-78840-0A0 BEARING SET,CONNROD GREENSTD,T:1.5 |
12100-78840-0A0 |
from US $19.32 |
||
|
6
|
6
12100-78840-0B0 BEARING SET,CONNROD BLACKSTD,T:1.5 |
12100-78840-0B0 |
from US $29.03 |
||
|
6
|
6
12100-78840-0C0 BEARING SET,CONNROD NONSTD,T:1.5 |
12100-78840-0C0 |
from US $10.68 |
||
|
6
|
6
12100-78840-0D0 BEARING SET,CONNROD YELLOWSTD,T:1.5 |
12100-78840-0D0 |
from US $19.32 |
||
|
6
|
6
12100-78840-0E0 BEARING SET,CONNROD BLUESTD,T:1.5 |
12100-78840-0E0 |
from US $19.32 |
||
|
6
|
6
12100-78840-025 BEARING SET,CONNROD US:0.25US:0.25,T:1.625 |
12100-78840-025 |
from US $19.32 |
||
|
7
|
7
12220-78K00-000 CRANKSHAFT |
12220-78K00-000 |
from US $1,098.70 |
||
|
8
|
8
12222-78K00-000 PLATE,SENSOR |
12222-78K00-000 |
from US $8.46 |
||
|
9
|
9
12223-69G00-000 SCREW,SENSOR PLATE 6X10 |
12223-69G00-000 |
from US $0.75 |
||
|
10
|
10
12301-78820-0A0 BEARING SET,CRANK GREENSTD,T:2 |
12301-78820-0A0 |
from US $24.66 |
||
|
10
|
10
12301-78820-0B0 BEARING SET,CRANK BLACKSTD,T:2 |
12301-78820-0B0 |
from US $33.44 |
||
|
10
|
10
12301-78820-0C0 BEARING SET,CRANK NONSTD,T:2 |
12301-78820-0C0 |
from US $37.25 |
||
|
10
|
10
12301-78820-0D0 BEARING SET,CRANK YELLOWSTD,T:2 |
12301-78820-0D0 |
from US $24.66 |
||
|
10
|
10
12301-78820-0E0 BEARING SET,CRANK BLUESTD,T:2 |
12301-78820-0E0 |
US $24.66 |
||
|
10
|
10
12301-78820-0AA BEARING SET,CRANK RED/GREENUS:0.25,T:2.125 |
12301-78820-0AA |
from US $24.66 |
||
|
10
|
10
12301-78820-0BA BEARING SET,CRANK RED/BLACKUS:0.25,T:2.125 |
12301-78820-0BA |
from US $23.56 |
||
|
10
|
10
12301-78820-0CA BEARING SET,CRANK REDUS:0.25,T:2.125 |
12301-78820-0CA |
US $24.66 |
||
|
10
|
10
12301-78820-0DA BEARING SET,CRANK RED/YELLOWUS:0.25,T:2.125 |
12301-78820-0DA |
from US $24.66 |
||
|
10
|
10
12301-78820-0EA BEARING SET,CRANK RED/BLUEUS:0.25,T:2.125 |
12301-78820-0EA |
US $24.66 |
||
|
11
|
11
12300-78890-000 BEARING SET,CRANK THRUSTSTD,T:2.5 |
12300-78890-000 |
from US $14.36 |
||
|
11
|
11
12300-78890-012 BEARING SET,CRANK THRUST USOS:0.125,T:2.563 |
12300-78890-012 |
from US $14.09 |
||
|
12
|
12
11389-54L00-000 SEAL,CRANKSHAFT PULLEY OIL |
11389-54L00-000 |
from US $12.85 |
||
|
13
|
13
12610-78K00-000 PULLEY,CRANKSHAFT |
12610-78K00-000 |
from US $113.96 |
||
|
14
|
14
12615-85FA0-000 BOLT,CRANK PULLEY |
12615-85FA0-000 |
from US $16.20 |
||
|
15
|
15
09283-98003-000 SEAL,OIL(98X112X7) |
09283-98003-000 |
from US $25.45 |
||
|
16
|
16
09421-05010-000 KEY |
09421-05010-000 |
from US $2.07 |
||
