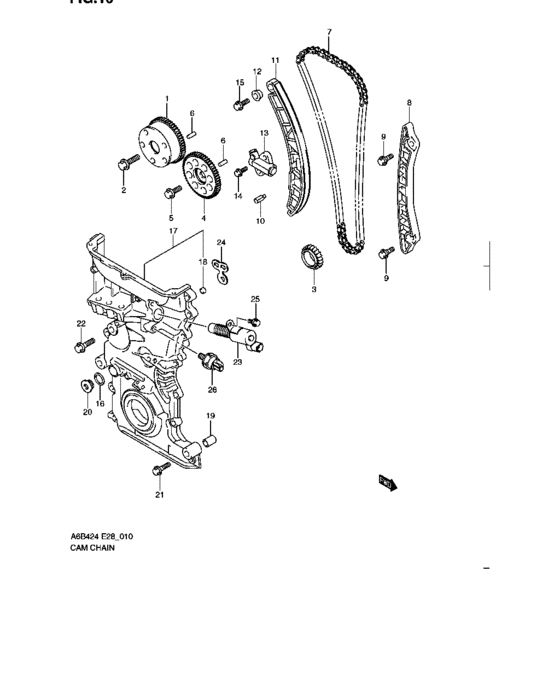

Cam chain (CAM CHAIN) Diagram Suzuki KIZASHI
- Year
- -
- Sales region
- Canada
- drive
- 2WD
- transmission
- MT
- grade
- SPORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12740-78K00-000 SPROCKET ASSY,CAMSHAFT TIMING |
12740-78K00-000 |
from US $342.65 |
||
|
2
|
2
11238-76G00-000 BOLT,10X35 |
11238-76G00-000 |
from US $1.95 |
||
|
3
|
3
12631-54L00-000 Sprocket, Crankshaft Timing |
12631-54L00-000 |
from US $34.38 |
||
|
4
|
4
12742-78K00-000 SPROCKET,CAMSHAFT TIMING EXH |
12742-78K00-000 |
from US $38.68 |
||
|
5
|
5
09103-10189-000 BOLT(10X23)Bolt, starter one way clutch |
09103-10189-000 |
from US $2.56 |
||
|
6
|
6
09206-05001-000 PIN(3.4X5X10) |
09206-05001-000 |
from US $1.22 |
||
|
7
|
7
12761-78K00-000 CHAIN,TIMING |
12761-78K00-000 |
from US $85.12 |
||
|
8
|
8
12771-78K01-000 GUIDE,TIMING CHAIN |
12771-78K01-000 |
from US $18.83 |
||
|
9
|
9
12776-85FA0-000 BOLT,TIMING CHAIN GUIDEBolt, timing chain guide |
12776-85FA0-000 |
from US $3.04 |
||
|
10
|
10
12781-69G00-000 JET,TIMING CHAIN |
12781-69G00-000 |
from US $8.64 |
||
|
11
|
11
12811-78K01-000 Tensioner, Timing Chain |
12811-78K01-000 |
from US $34.22 |
||
|
12
|
12
12812-73G10-000 SPACER,TIMING CHAIN TENSIONERSpacer, timing chain tensioner |
12812-73G10-000 |
from US $4.48 |
||
|
13
|
13
12831-69J00-000 ADJUSTER ASSY,TENSIONER |
12831-69J00-000 |
from US $82.60 |
||
|
14
|
14
01550-0620A-000 Bolt |
01550-0620A-000 |
from US $0.76 |
||
|
15
|
15
01550-0825A-000 Bolt |
01550-0825A-000 |
from US $0.47 |
||
|
16
|
16
11216-77E00-000 GASKET,M18 PLUG |
11216-77E00-000 |
from US $1.74 |
||
|
17
|
17
11380-54L00-000
Cover,timing chain
|
11380-54L00-000 |
— | ||
| replacement | |||||
|
17
|
17
11380-54L01-000 COVER,TIMING CHAIN |
11380-54L01-000 |
from US $210.78 |
||
|
18
|
18
16116-69GE0-000 FILTER,OIL GALLERY |
16116-69GE0-000 |
from US $6.39 |
||
|
19
|
19
09206-08001-000 PIN(8X11) |
09206-08001-000 |
from US $1.53 |
||
|
20
|
20
09248-18011-000 PLUG(18X8)Plug, oil gallery |
09248-18011-000 |
from US $3.15 |
||
|
21
|
21
01550-0825A-000 Bolt |
01550-0825A-000 |
from US $0.47 |
||
|
22
|
22
01550-1035A-000 BoltBolt, fr fork upper |
01550-1035A-000 |
from US $1.62 |
||
|
23
|
23
16550-51KA0-000 VALVE,OIL CONTROL |
16550-51KA0-000 |
from US $77.76 |
||
|
24
|
24
16559-78K00-000 GASKET,OIL GALLERY |
16559-78K00-000 |
from US $6.68 |
||
|
25
|
25
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
26
|
26
37820-73H10-000
Switch assy,oil pressure
|
37820-73H10-000 |
— | ||
| replacement | |||||
|
26
|
26
37820-73HP0-000 SWITCH ASSY,OIL PRESS |
37820-73HP0-000 |
US $22.40 |
||
