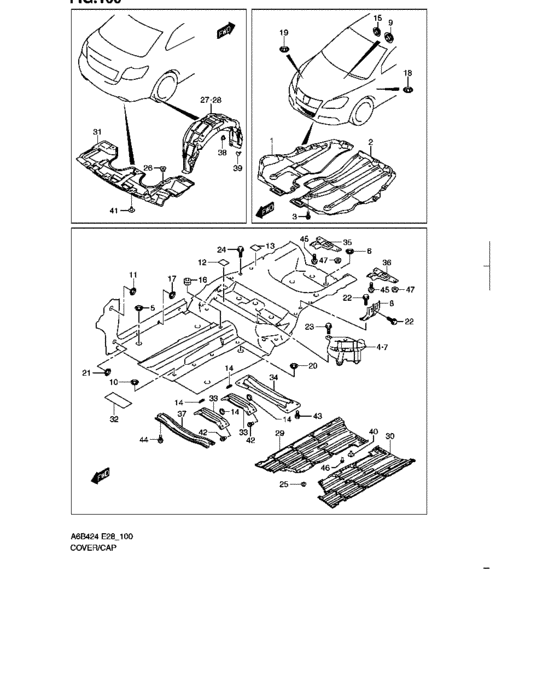

Cover/cap (COVER/CAP) Diagram Suzuki KIZASHI
- Year
- -
- Sales region
- Canada
- drive
- 2WD
- transmission
- MT
- grade
- SPORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72381-57L00-000 COVER,ENGINE UNDER,R |
72381-57L00-000 |
from US $61.49 |
||
|
2
|
2
72382-57L00-000 COVER,ENGINE UNDER,L |
72382-57L00-000 |
from US $53.30 |
||
|
3
|
3
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.96 |
||
|
4
|
4
75431-57L00-000 PANEL,RR SEAT CUSHION SPRT,R |
75431-57L00-000 |
US $29.26 |
||
|
5
|
5
75431-58J00-000 CAP,FL |
75431-58J00-000 |
from US $2.39 |
||
|
6
|
6
75431-58J00-000 CAP,FL |
75431-58J00-000 |
from US $2.39 |
||
|
7
|
7
75432-57L00-000 PANEL,RR SEAT CUSHION SPRT,L |
75432-57L00-000 |
US $29.26 |
||
|
8
|
8
75440-57L00-000 BRACE,RR FLOOR SIDE |
75440-57L00-000 |
US $31.83 |
||
|
9
|
9
77111-63J00-000 CAP |
77111-63J00-000 |
from US $1.60 |
||
|
10
|
10
77111-63J00-000 CAP |
77111-63J00-000 |
from US $1.60 |
||
|
11
|
11
77111-63J00-000 CAP |
77111-63J00-000 |
from US $1.60 |
||
|
12
|
12
77151-82000-000
FILM
|
77151-82000-000 |
— | ||
| replacements | |||||
|
12
|
12
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole |
84761-50X50-000 |
from US $6.72 |
||
|
12
|
12
77151-82010-000 Seal |
77151-82010-000 |
US $1.44 |
||
|
13
|
13
77151-82000-000
FILM
|
77151-82000-000 |
— | ||
| replacements | |||||
|
13
|
13
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole |
84761-50X50-000 |
from US $6.72 |
||
|
13
|
13
77151-82010-000 Seal |
77151-82010-000 |
US $1.44 |
||
|
14
|
14
09250-25007-000 CAP(OD:25.0) |
09250-25007-000 |
from US $1.31 |
||
|
15
|
15
09250-10016-000 CAP(OD:16.2) |
09250-10016-000 |
from US $1.13 |
||
|
16
|
16
09250-15015-000 CAP(OD:23.5) |
09250-15015-000 |
US $1.07 |
||
|
17
|
17
09250-20015-000 CAP(OD:28.5)Cap, air con harness |
09250-20015-000 |
from US $0.79 |
||
|
18
|
18
09250-20015-000 CAP(OD:28.5)Cap, air con harness |
09250-20015-000 |
from US $0.79 |
||
|
19
|
19
09250-25007-000 CAP(OD:25.0) |
09250-25007-000 |
from US $1.31 |
||
|
20
|
20
09250-25007-000 CAP(OD:25.0) |
09250-25007-000 |
from US $1.31 |
||
|
21
|
21
72999-67H00-000 CAP,OD:40 |
72999-67H00-000 |
from US $4.32 |
||
|
22
|
22
01551-0816C-000 Bolt |
01551-0816C-000 |
from US $0.96 |
||
|
23
|
23
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
24
|
24
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
25
|
25
14357-72J00-000 NUT |
14357-72J00-000 |
from US $0.97 |
||
|
26
|
26
14357-72J00-000 NUT |
14357-72J00-000 |
from US $0.97 |
||
|
27
|
27
75511-57L00-000 LINING,RR FENDER,R |
75511-57L00-000 |
from US $128.50 |
||
|
28
|
28
75521-57L00-000 LINING,RR FENDER,L |
75521-57L00-000 |
from US $131.01 |
||
|
29
|
29
75531-57L00-000 COVER,MAIN FL UNDER,R |
75531-57L00-000 |
US $173.28 |
||
|
30
|
30
75541-57L00-000 COVER,MAIN FL UNDER,L |
75541-57L00-000 |
from US $156.78 |
||
|
31
|
31
75551-57L00-000 COVER,RR BUMPER FR |
75551-57L00-000 |
from US $39.02 |
||
|
32
|
32
75552-57L00-000 PROTECTOR,RR FLOOR FR X MBR |
75552-57L00-000 |
US $11.20 |
||
|
33
|
33
75560-57L00-000 BAR,FLOOR TUNNEL2WD |
75560-57L00-000 |
US $52.62 |
||
|
34
|
34
75570-57L00-000 BAR,FLOOR TUNNEL,RR |
75570-57L00-000 |
US $91.26 |
||
|
35
|
35
75581-57L00-000 STAY,MUFFLER HANGER RR,R |
75581-57L00-000 |
US $10.30 |
||
|
36
|
36
75582-57L00-000 STAY,MUFFLER HANGER RR,L |
75582-57L00-000 |
US $10.30 |
||
|
37
|
37
75591-57L00-000 BRACE,FLOOR TUNNEL FR |
75591-57L00-000 |
US $41.58 |
||
|
38
|
38
09148-05059-000 CLIP |
09148-05059-000 |
from US $0.91 |
||
|
39
|
39
09409-07340-000 CLIP |
09409-07340-000 |
from US $1.22 |
||
|
40
|
40
09409-07340-000 CLIP |
09409-07340-000 |
from US $1.22 |
||
|
41
|
41
09409-07340-000 CLIP |
09409-07340-000 |
from US $1.22 |
||
|
42
|
42
01551-0816C-000 Bolt2WD |
01551-0816C-000 |
from US $0.96 |
||
|
43
|
43
01551-0820A-000 Bolt |
01551-0820A-000 |
from US $0.96 |
||
|
44
|
44
01551-0820A-000 Bolt |
01551-0820A-000 |
from US $0.96 |
||
|
45
|
45
01551-0816C-000 Bolt |
01551-0816C-000 |
from US $0.96 |
||
|
46
|
46
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.96 |
||
|
47
|
47
08316-1008A-000 NUTNut, idle gear shaft |
08316-1008A-000 |
from US $0.76 |
||
