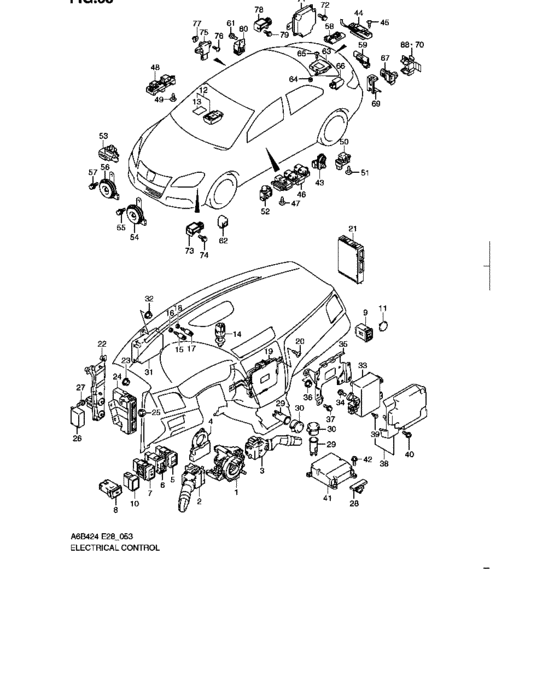

Electrical control (ELECTRICAL CONTROL) Diagram Suzuki KIZASHI
- Year
- -
- Sales region
- Canada
- drive
- 2WD
- transmission
- MT
- grade
- SPORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37480-57L10-000
CABLE ASSY,CONTACT COIL
|
37480-57L10-000 |
— | ||
|
2
|
2
37210-57L00-000 SWITCH ASSY,LIGHTING&TURNDLX |
37210-57L00-000 |
US $144.26 |
||
|
2
|
2
37210-57L10-000 SWITCH ASSY,LIGHTING&TURNSDLX,SPORT |
37210-57L10-000 |
US $144.26 |
||
|
3
|
3
37310-57L00-000 SWITCH ASSY,WIPER&WASHERDLX |
37310-57L00-000 |
US $154.56 |
||
|
3
|
3
37310-57L10-000
SWITCH ASSY,WIPER&WASHER
SDLX,SPORT |
37310-57L10-000 |
— | ||
|
4
|
4
37440-57L00-000 SENSOR ASSY,STEERING ANGLE |
37440-57L00-000 |
US $795.20 |
||
|
6
|
6
37585-57L00-000 SWITCH ASSY,ESP OFFDLX |
37585-57L00-000 |
US $67.20 |
||
|
6
|
6
37585-57L90-000 SWITCH,ESP OFF&PARK SNSRSDLX,SPORT |
37585-57L90-000 |
US $76.54 |
||
|
7
|
7
37270-57L00-000 SWITCH ASSY,FR FOGSDLX,SPORT |
37270-57L00-000 |
US $39.74 |
||
|
8
|
8
37530-81J20-000 SWITCH ASSY,TRUNK OPENER |
37530-81J20-000 |
US $50.05 |
||
|
9
|
9
37535-81J20-000
SWITCH,TRUNK OPENER CANCEL
|
37535-81J20-000 |
— | ||
|
10
|
10
37285-62J00-000 CAP,OPTION SW HOLE |
37285-62J00-000 |
US $2.56 |
||
|
11
|
11
38975-57L00-000 CAP,A/B ON OFF SWITCH HOLE |
38975-57L00-000 |
US $2.72 |
||
|
12
|
12
37320-57L00-000
SENSOR ASSY,RAIN&LIGHT
SDLX,SPORT |
37320-57L00-000 |
— | ||
| replacement | |||||
|
12
|
12
37320-57L01-000 Sensor Assy,rain&lightSDLX,SPORT |
37320-57L01-000 |
US $167.07 |
||
|
13
|
13
37324-57L00-000 SHEETSDLX,SPORT |
37324-57L00-000 |
US $16.80 |
||
|
14
|
14
37740-75H10-000
SWITCH ASSY,STOP LAMP
|
37740-75H10-000 |
— | ||
| replacements | |||||
|
14
|
14
37741-75H10-000 Switch Assy,stop Lamp |
37741-75H10-000 |
US $17.49 |
||
|
14
|
14
37742-75H10-000 Bush,stop Lamp Sw |
37742-75H10-000 |
from US $4.03 |
||
|
15
|
15
37970-64J00-000 SWITCH ASSY,CLUTCHMT |
37970-64J00-000 |
US $31.92 |
||
|
16
|
16
09140-10043-000 NUTNut, tie rod rh thread MT |
09140-10043-000 |
from US $0.91 |
||
|
17
|
17
37970-68J00-000 SWITCH ASSY,CLUTCHMT |
37970-68J00-000 |
US $27.36 |
||
|
18
|
18
09140-10043-000 NUTNut, tie rod rh thread MT |
09140-10043-000 |
from US $0.91 |
||
|
19
|
19
39530-57L30-000 CONTROLLER UNIT,AUTO A/C |
39530-57L30-000 |
US $298.08 |
||
|
20
|
20
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.76 |
||
|
21
|
21
36770-57L12-000
Controller assy,body elec
|
36770-57L12-000 |
— | ||
| replacement | |||||
|
21
|
21
36770-57L15-000 CONTROLLER ASSY,BODY ELEC |
36770-57L15-000 |
US $404.80 |
||
|
22
|
22
36772-57L00-000 BRACKET,KLS CONT,L |
36772-57L00-000 |
US $20.24 |
||
|
23
|
23
09159-06076-000 NUT |
09159-06076-000 |
from US $1.28 |
||
|
24
|
24
37171-57L01-000
Controller assy, kls
|
37171-57L01-000 |
— | ||
| replacements | |||||
|
24
|
24
37171-57L04-000
CONTROLLER ASSY,KLS
|
37171-57L04-000 |
— | ||
|
24
|
24
37171-57L05-000 Controller Assy,kls |
37171-57L05-000 |
US $1,680 |
||
|
25
|
25
09159-06076-000 NUT |
09159-06076-000 |
from US $1.28 |
||
|
26
|
26
38660-57L00-000 CONTROLLER ASSY,DRL |
38660-57L00-000 |
US $122.91 |
||
|
27
|
27
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
28
|
28
37175-57L00-000 ANTENNA ASSY,KLS INSIDE |
37175-57L00-000 |
US $39.01 |
||
|
29
|
29
39420-76F00-000 BODY,SOCKET |
39420-76F00-000 |
from US $8.60 |
||
|
30
|
30
39441-63J01-P4Z COVER,SOCKET |
39441-63J01-P4Z |
US $4.96 |
||
|
31
|
31
38880-57L61-000
CONTROLLER ASSY,CVT
CVT:2WD |
38880-57L61-000 |
— | ||
| replacement | |||||
|
31
|
31
38880-57L62-000 Controller Assy,cvtCVT:2WD |
38880-57L62-000 |
US $1,034.88 |
||
|
31
|
31
38880-57L90-000
CONTROLLER ASSY,CVT
CVT:2WD,JS2RA3 B6110001~,JS2RA7 B6110001~,JS2RA8 B6110001~ |
38880-57L90-000 |
— | ||
| replacement | |||||
|
31
|
31
38880-57L91-000 CONTROLLER ASSY,CVTCVT:2WD,JS2RA3 B6110001~,JS2RA7 B6110001~,JS2RA8 B6110001~ |
38880-57L91-000 |
US $1,034.88 |
||
|
32
|
32
09159-06076-000 NUTCVT |
09159-06076-000 |
from US $1.28 |
||
|
33
|
33
38720-57LC0-000
Controller assy,eps
|
38720-57LC0-000 |
— | ||
| replacement | |||||
|
33
|
33
38720-57LC1-000
CONTROLLER ASSY,EPS
|
38720-57LC1-000 |
— | ||
|
34
|
34
02162-0616A-000 SCREW |
02162-0616A-000 |
from US $1.24 |
||
| replacement | |||||
|
34
|
34
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.96 |
||
|
35
|
35
38721-57L00-000 BRACKET,EPS CONT |
38721-57L00-000 |
US $10.67 |
||
|
36
|
36
09159-06076-000 NUT |
09159-06076-000 |
from US $1.28 |
||
|
37
|
37
01550-0610A-000 Bolt |
01550-0610A-000 |
from US $0.96 |
||
|
38
|
38
38722-57L00-000
COVER,EPS CONT
|
38722-57L00-000 |
— | ||
|
39
|
39
09409-08340-000 CLIP |
09409-08340-000 |
US $17.30 |
||
|
40
|
40
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
41
|
41
38910-57LA0-000 CONTROLLER ASSY,A/B |
38910-57LA0-000 |
US $989.12 |
||
|
42
|
42
09115-06004-000 BOLT(6X16) |
09115-06004-000 |
US $12.50 |
||
|
43
|
43
37670-57L00-000 SWITCH ASSY,DOOR |
37670-57L00-000 |
US $17.60 |
||
|
44
|
44
37178-57L00-000 SWITCH ASSY,BACK DOOR |
37178-57L00-000 |
US $108.68 |
||
|
45
|
45
03541-0416A-000 SCREWScrew, trunk box lamp |
03541-0416A-000 |
from US $0.76 |
||
|
46
|
46
37990-57L00-000 SWITCH ASSY,P/W MAIN |
37990-57L00-000 |
US $131.38 |
||
|
47
|
47
03541-0410A-000 SCREW |
03541-0410A-000 |
from US $0.80 |
||
|
48
|
48
37995-57L00-000 SWITCH ASSY,P/W SUB |
37995-57L00-000 |
US $52.62 |
||
|
49
|
49
03541-0410A-000 SCREW |
03541-0410A-000 |
from US $0.80 |
||
|
50
|
50
37995-57L20-000 SWITCH ASSY,P/W SUB |
37995-57L20-000 |
US $26.86 |
||
|
51
|
51
03541-0410A-000 SCREW |
03541-0410A-000 |
from US $0.80 |
||
|
52
|
52
37950-57L00-000 SWITCH ASSY,MIRROR |
37950-57L00-000 |
US $26.50 |
||
|
53
|
53
95643-58J00-000 SENSOR,AIR TEMP |
95643-58J00-000 |
from US $54.91 |
||
|
54
|
54
38500-51K00-000
Horn assy
|
38500-51K00-000 |
— | ||
| replacement | |||||
|
54
|
54
38500-51K01-000 HORN ASSY |
38500-51K01-000 |
US $82.40 |
||
|
55
|
55
09115-08001-000 BOLT(8X18) |
09115-08001-000 |
US $15.10 |
||
|
56
|
56
38500-73H10-000
Horn assy
|
38500-73H10-000 |
— | ||
| replacement | |||||
|
56
|
56
38500-73H11-000 HORN ASSY,LOW PITCHED |
38500-73H11-000 |
US $71.39 |
||
|
57
|
57
09115-08001-000 BOLT(8X18) |
09115-08001-000 |
US $15.10 |
||
|
58
|
58
37175-57L00-000 ANTENNA ASSY,KLS INSIDE |
37175-57L00-000 |
US $39.01 |
||
|
59
|
59
37175-57L10-000 ANTENNA ASSY,KLS BACK DR |
37175-57L10-000 |
US $39.01 |
||
|
60
|
60
37190-57L20-000
RECEIVER ASSY,KEYLESS
|
37190-57L20-000 |
— | ||
|
61
|
61
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.80 |
||
|
62
|
62
38590-82K00-000
ブザーアッシ,キーレススタート
|
38590-82K00-000 |
— | ||
| replacement | |||||
|
62
|
62
38590-82K01-000 BUZZER ASSY,KLS |
38590-82K01-000 |
US $31.65 |
||
|
63
|
63
37730-57L10-000 CONTROLLER ASSY,CLEARANCE SNSRSDLX,SPORT |
37730-57L10-000 |
US $253.92 |
||
|
64
|
64
09148-05031-000 NUTSDLX,SPORT |
09148-05031-000 |
US $1.28 |
||
|
65
|
65
03541-0512B-000 SCREWSDLX,SPORT |
03541-0512B-000 |
from US $0.76 |
||
|
66
|
66
37734-57L00-000
Buzzer,park snsr
SDLX,SPORT |
37734-57L00-000 |
— | ||
| replacement | |||||
|
66
|
66
37734-57L01-000 BUZZER,PARKING SENSORSDLX,SPORT |
37734-57L01-000 |
US $35.70 |
||
|
67
|
67
37735-57L00-ZMT SENSOR ASSY,PARK SNSRSDLX,SPORT |
37735-57L00-ZMT |
US $288.80 |
||
|
67
|
67
37735-57L00-ZMU SENSOR ASSY,CLEARANCESDLX,SPORT |
37735-57L00-ZMU |
US $200.56 |
||
|
67
|
67
37735-57L00-ZMV SENSOR ASSY,PARK SNSRSDLX,SPORT |
37735-57L00-ZMV |
US $288.80 |
||
|
67
|
67
37735-57L00-ZMW SENSOR ASSY,PARK SNSRSDLX,SPORT |
37735-57L00-ZMW |
US $446.40 |
||
|
67
|
67
37735-57L00-ZMZ SENSOR ASSY,CLEARANCESDLX,SPORT |
37735-57L00-ZMZ |
US $200.56 |
||
|
67
|
67
37735-57L00-ZNA SENSOR ASSY,CLEARANCESDLX,SPORT |
37735-57L00-ZNA |
US $165.97 |
||
|
67
|
67
37735-57L00-ZNB SENSOR ASSY,CLEARANCESDLX,SPORT |
37735-57L00-ZNB |
US $200.56 |
||
|
67
|
67
37735-57L00-ZNC SENSOR ASSY,PARK SNSRSDLX,SPORT |
37735-57L00-ZNC |
US $200.56 |
||
|
67
|
67
37735-57L00-ZPM SENSOR ASSY,CLEARANCESDLX,SPORT |
37735-57L00-ZPM |
US $165.97 |
||
|
68
|
68
37736-57L00-000 BRACKET,PARK SNSRSDLX,SPORT |
37736-57L00-000 |
US $10.67 |
||
|
69
|
69
37736-57L10-000 BRACKET,PARK SENSOR HARNESSSDLX,SPORT |
37736-57L10-000 |
US $1.91 |
||
|
70
|
70
37736-57L20-000 BRACKET,PARK SENSOR HARNESSSDLX,SPORT |
37736-57L20-000 |
US $10.67 |
||
|
73
|
73
38930-57L00-000 SENSOR ASSY,FORWARD |
38930-57L00-000 |
US $107.82 |
||
|
74
|
74
07120-0616A-000 Bolt |
07120-0616A-000 |
from US $4 |
||
|
75
|
75
38930-57L10-000 SENSOR ASSY,SIDE AIR BAG |
38930-57L10-000 |
US $129.54 |
||
|
76
|
76
09132-05058-000 SCREW(5X12) |
09132-05058-000 |
US $12.50 |
||
|
77
|
77
09148-05031-000 NUT |
09148-05031-000 |
US $1.28 |
||
|
78
|
78
38930-57L20-000 SENSOR ASSY,SIDE AIR BAG |
38930-57L20-000 |
from US $80.57 |
||
|
79
|
79
09115-06004-000 BOLT(6X16) |
09115-06004-000 |
US $12.50 |
||
