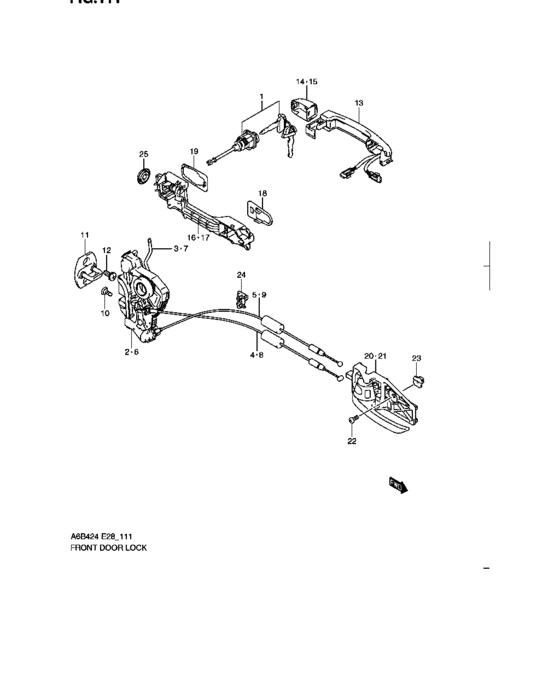

Front door lock (FRONT DOOR LOCK) Diagram Suzuki KIZASHI
- Year
- -
- Sales region
- Canada
- drive
- 2WD
- transmission
- MT
- grade
- SPORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82280-65840-000 CYLINDER,FR DR LATCH,L |
82280-65840-000 |
US $60.95 |
||
|
2
|
2
82210-57L71-000
Latch comp,front door,r
|
82210-57L71-000 |
— | ||
| replacement | |||||
|
2
|
2
82210-57L75-000 LATCH,FR DR,R |
82210-57L75-000 |
US $126.96 |
||
|
3
|
3
82221-57L00-000 ROD,FRONT DOOR LATCH,R |
82221-57L00-000 |
US $7.36 |
||
|
4
|
4
82223-57L00-000 CABLE,FR DR LATCH |
82223-57L00-000 |
US $11.33 |
||
|
5
|
5
82224-57L00-000 CABLE,FR DR LATCH |
82224-57L00-000 |
US $11.33 |
||
|
6
|
6
82250-57L31-000
Latch comp,front door,l
|
82250-57L31-000 |
— | ||
| replacement | |||||
|
6
|
6
82250-57L35-000
LATCH,FR DR,L
|
82250-57L35-000 |
— | ||
|
7
|
7
82261-57L00-000 ROD,FRONT DOOR LATCH,L |
82261-57L00-000 |
US $7.36 |
||
|
8
|
8
82223-57L00-000 CABLE,FR DR LATCH |
82223-57L00-000 |
US $11.33 |
||
|
9
|
9
82224-57L00-000 CABLE,FR DR LATCH |
82224-57L00-000 |
US $11.33 |
||
|
10
|
10
09137-06028-000 SCREW(6X18) |
09137-06028-000 |
from US $1.24 |
||
|
11
|
11
82610-65J00-000 STRIKER,DOOR LATCH |
82610-65J00-000 |
from US $9.32 |
||
|
12
|
12
09137-08004-000 SCREW(8X18) |
09137-08004-000 |
from US $0.99 |
||
| replacement | |||||
|
12
|
12
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
from US $1.40 |
||
|
13
|
13
82810-57810-ZMT HANDLE SET,SIDE DR OUT |
82810-57810-ZMT |
from US $115.09 |
||
|
13
|
13
82810-57810-ZMU HANDLE SET,SIDE DR OUT |
82810-57810-ZMU |
from US $114.08 |
||
|
13
|
13
82810-57810-ZMV HANDLE SET,SIDE DR OUT |
82810-57810-ZMV |
US $151.25 |
||
|
13
|
13
82810-57810-ZMW HANDLE SET,SIDE DR OUT (GRAY) |
82810-57810-ZMW |
US $113.13 |
||
|
13
|
13
82810-57810-ZMZ HANDLE SET,SIDE DR OUT |
82810-57810-ZMZ |
US $151.25 |
||
|
13
|
13
82810-57810-ZNA HANDLE SET,SIDE DR OUT |
82810-57810-ZNA |
US $151.25 |
||
|
13
|
13
82810-57810-ZNB HANDLE SET,SIDE DR OUT |
82810-57810-ZNB |
US $151.25 |
||
|
13
|
13
82810-57810-ZNC HANDLE SET,SIDE DR OUT(SILVER) |
82810-57810-ZNC |
from US $125.53 |
||
|
13
|
13
82810-57810-ZPM HANDLE SET,SIDE DR OUT |
82810-57810-ZPM |
US $151.25 |
||
|
14
|
14
82813-57L10-ZMT CAP,FR DR OUT |
82813-57L10-ZMT |
from US $17.22 |
||
|
14
|
14
82813-57L10-ZMU CAP,FR DR OUT |
82813-57L10-ZMU |
US $17.22 |
||
|
14
|
14
82813-57L10-ZMV CAP,FR DR OUT |
82813-57L10-ZMV |
US $17.22 |
||
|
14
|
14
82813-57L10-ZMW CAP,FR DR OUT |
82813-57L10-ZMW |
US $17.22 |
||
|
14
|
14
82813-57L10-ZMZ CAP,FR DR OUT |
82813-57L10-ZMZ |
US $17.22 |
||
|
14
|
14
82813-57L10-ZNA
CAP,FR DR OUT
|
82813-57L10-ZNA |
— | ||
|
14
|
14
82813-57L10-ZNB CAP,FR DR OUT |
82813-57L10-ZNB |
US $17.22 |
||
|
14
|
14
82813-57L10-ZNC CAP,FR DR OUT(SILVER) |
82813-57L10-ZNC |
US $17.22 |
||
|
14
|
14
82813-57L10-ZPM CAP,FR DR OUT |
82813-57L10-ZPM |
US $17.22 |
||
|
15
|
15
82813-57L00-ZMT CAP,FR DR OUT |
82813-57L00-ZMT |
from US $14.96 |
||
|
15
|
15
82813-57L00-ZMU CAP,FR DR OUT |
82813-57L00-ZMU |
US $15.16 |
||
|
15
|
15
82813-57L00-ZMV CAP,FR DR OUT |
82813-57L00-ZMV |
US $15.16 |
||
|
15
|
15
82813-57L00-ZMW CAP,FR DR OUT |
82813-57L00-ZMW |
US $15.16 |
||
|
15
|
15
82813-57L00-ZMZ CAP,FR DR OUT |
82813-57L00-ZMZ |
US $15.16 |
||
|
15
|
15
82813-57L00-ZNA CAP,FR DR OUT |
82813-57L00-ZNA |
US $13.76 |
||
|
15
|
15
82813-57L00-ZNB CAP,FR DR OUT |
82813-57L00-ZNB |
US $15.16 |
||
|
15
|
15
82813-57L00-ZNC CAP,FR DR OUT(SILVER) |
82813-57L00-ZNC |
US $15.16 |
||
|
15
|
15
82813-57L00-ZPM CAP,FR DR OUT |
82813-57L00-ZPM |
US $15.16 |
||
|
16
|
16
82811-63J10-000 FRAME,FR DOOR OUT,R |
82811-63J10-000 |
from US $25.47 |
||
|
17
|
17
82821-63J10-000 FRAME,FR DOOR OUT,L |
82821-63J10-000 |
from US $31.65 |
||
|
18
|
18
82814-63J00-000 PAD,FRONT DOOR OUT |
82814-63J00-000 |
from US $1.52 |
||
|
19
|
19
82815-63J00-000 CUSHION,SIDE DR OUT |
82815-63J00-000 |
from US $1.60 |
||
|
20
|
20
83110-57L00-C48 HANDLE,SIDE DR INS,R |
83110-57L00-C48 |
US $51.15 |
||
|
20
|
20
83110-57L20-C48 HANDLE,SIDE DR INS,RJS2RA3 B6110001~,JS2RA7 B6110001~,JS2RF9A7 B6110001~,JS2RA8 B6110001~,JS2RF9A8 B6110001~ |
83110-57L20-C48 |
from US $44.98 |
||
|
21
|
21
83130-57L00-C48 HANDLE,SIDE DOOR INSIDE,L |
83130-57L00-C48 |
US $51.15 |
||
|
21
|
21
83130-57L20-C48 HANDLE,SIDE DOOR INSIDE,LJS2RA3 B6110001~,JS2RA7 B6110001~,JS2RF9A7 B6110001~,JS2RA8 B6110001~,JS2RF9A8 B6110001~ |
83130-57L20-C48 |
from US $44.98 |
||
|
22
|
22
09132-05058-000 SCREW(5X12) |
09132-05058-000 |
US $12.50 |
||
|
23
|
23
09148-05031-000 NUT |
09148-05031-000 |
from US $1.08 |
||
|
24
|
24
83271-50E00-000 CLIP,DR HANDLE ROD |
83271-50E00-000 |
from US $1.60 |
||
|
25
|
25
09250-25007-000 CAP(OD:25.0) |
09250-25007-000 |
from US $1.31 |
||
