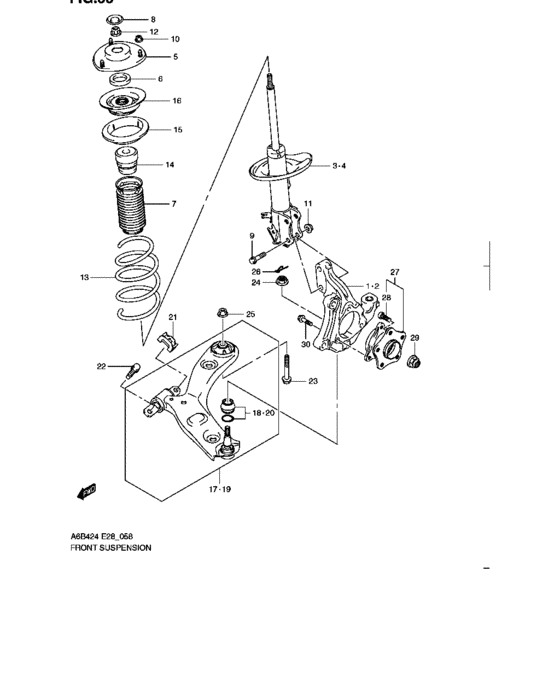

Front suspension (FRONT SUSPENSION) Diagram Suzuki KIZASHI
- Year
- -
- Sales region
- Canada
- drive
- 2WD
- transmission
- MT
- grade
- SPORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45110-57L00-000 KNUCKLE ASSY,STEERING,R |
45110-57L00-000 |
from US $242.01 |
||
|
2
|
2
45150-57L00-000 KNUCKLE ASSY,STEERING,L |
45150-57L00-000 |
from US $269.84 |
||
|
3
|
3
41601-57L01-000
STRUT ASSY,FR SUSPENSION,R
MT:DLX |
41601-57L01-000 |
— | ||
|
3
|
3
41601-57LA1-000 STRUT ASSY,FR SUSPENSION,RMT:SPORT |
41601-57LA1-000 |
US $305.44 |
||
|
3
|
3
41601-57L11-000 STRUT ASSY,FR SUSPENSION,RCVT:DLX,SDLX |
41601-57L11-000 |
US $380.80 |
||
|
3
|
3
41601-57LB1-000 STRUT ASSY,FR SUSPENSION,RCVT:SPORT |
41601-57LB1-000 |
US $414.63 |
||
|
4
|
4
41602-57L01-000 STRUT ASSY,FR SUSPENSION,LMT:DLX |
41602-57L01-000 |
US $230.36 |
||
|
4
|
4
41602-57LA1-000 STRUT ASSY,FR SUSPENSION,LMT:SPORT |
41602-57LA1-000 |
US $305.44 |
||
|
4
|
4
41602-57L11-000 STRUT ASSY,FR SUSPENSION,LCVT:DLX,SDLX |
41602-57L11-000 |
from US $297.52 |
||
|
4
|
4
41602-57LB1-000 STRUT ASSY,FR SUSPENSION,LCVT:SPORT |
41602-57LB1-000 |
US $399.40 |
||
|
5
|
5
41710-57L00-000 SUPPORT,FRONT STRUT |
41710-57L00-000 |
from US $179.21 |
||
|
6
|
6
41741-78K00-000 BEARING,FR STRUT |
41741-78K00-000 |
from US $17.84 |
||
|
7
|
7
41931-65J00-000 COVER,STRUT DUST |
41931-65J00-000 |
from US $20.79 |
||
|
8
|
8
41932-65J00-000 CAP,STRUT SUPPORT |
41932-65J00-000 |
from US $2.45 |
||
|
9
|
9
09103-14025-000 BOLT(14X60) |
09103-14025-000 |
from US $6.64 |
||
|
10
|
10
09159-10117-000 NUT |
09159-10117-000 |
from US $2.08 |
||
|
11
|
11
09159-14031-000 NUT |
09159-14031-000 |
from US $2.72 |
||
|
12
|
12
09159-14030-000 NUT |
09159-14030-000 |
from US $2.08 |
||
|
13
|
13
41111-57L00-000
SPRING,FRONT COIL
2WD:MT:DLX |
41111-57L00-000 |
— | ||
|
13
|
13
41111-57LA0-000
SPRING,FRONT COIL
2WD:MT:SPORT |
41111-57LA0-000 |
— | ||
|
13
|
13
41111-57L10-000 SPRING,FRONT COIL2WD:CVT:DLX,SDLX |
41111-57L10-000 |
US $233.60 |
||
|
13
|
13
41111-57LB0-000 SPRING,FRONT COIL2WD:CVT:SPORT |
41111-57LB0-000 |
US $131.47 |
||
|
14
|
14
42111-57L00-000 STOPPER,FR BUMP |
42111-57L00-000 |
US $52 |
||
|
15
|
15
41211-57L00-000 SEAT,COIL SPRING RUBBER UPPER |
41211-57L00-000 |
from US $19.08 |
||
|
16
|
16
41230-57L00-000 SEAT,COIL SPRING UPPER |
41230-57L00-000 |
from US $27.99 |
||
|
17
|
17
45201-57L00-000
Arm assy,front suspension,r
|
45201-57L00-000 |
— | ||
| replacement | |||||
|
17
|
17
45201-57L01-000 ARM ASSY,FR SPNSN,R |
45201-57L01-000 |
from US $352.94 |
||
|
18
|
18
45714-57810-000
SEAL SET,SUSPENSION ARM
|
45714-57810-000 |
— | ||
| replacement | |||||
|
18
|
18
45714-57811-000 Seal Set,suspension Arm |
45714-57811-000 |
US $37.54 |
||
|
19
|
19
45202-57L00-000
Arm assy,front spnsn,l
|
45202-57L00-000 |
— | ||
| replacement | |||||
|
19
|
19
45202-57L01-000 ARM ASSY,FR SPNSN,L |
45202-57L01-000 |
from US $355.79 |
||
|
20
|
20
45714-57810-000
SEAL SET,SUSPENSION ARM
|
45714-57810-000 |
— | ||
| replacement | |||||
|
20
|
20
45714-57811-000 Seal Set,suspension Arm |
45714-57811-000 |
US $37.54 |
||
|
21
|
21
45271-57L00-000 STOPPER,FRONT SUSPENSION ARM |
45271-57L00-000 |
US $42.40 |
||
|
22
|
22
45272-57L00-000 BOLT,SPNSN ARM FR BUSHING |
45272-57L00-000 |
US $8.64 |
||
|
23
|
23
09135-14015-000 BOLT(14X92) |
09135-14015-000 |
from US $9.47 |
||
|
24
|
24
09141-14010-000 NUT |
09141-14010-000 |
US $90.50 |
||
|
25
|
25
09159-14028-000 NUT |
09159-14028-000 |
from US $2.24 |
||
|
26
|
26
09385-18001-000 PIN |
09385-18001-000 |
US $27.20 |
||
|
27
|
27
43401-57L00-000 HUB ASSY,FR WHL |
43401-57L00-000 |
from US $334.94 |
||
|
28
|
28
09119-12012-000 BOLT(12X38) |
09119-12012-000 |
from US $1.33 |
||
|
29
|
29
43459-65J00-000 NUT,FR AXLE |
43459-65J00-000 |
from US $6.21 |
||
|
30
|
30
09103-12101-000 BOLT(12X38) |
09103-12101-000 |
US $2.43 |
||
