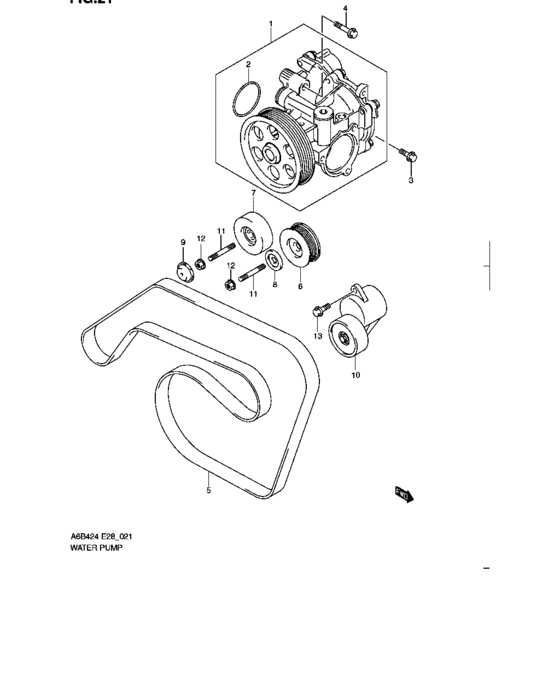

Water pump (WATER PUMP) Diagram Suzuki KIZASHI
- Year
- -
- Sales region
- Canada
- drive
- 2WD
- transmission
- MT
- grade
- SPORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-78892-000
Pump set,water
|
17400-78892-000 |
— | ||
| replacements | |||||
|
1
|
1
17400-78893-000 PUMP SET,WATER |
17400-78893-000 |
US $175.52 |
||
|
1
|
1
17400-78894-000 PUMP SET,WATER |
17400-78894-000 |
US $129.08 |
||
|
2
|
2
17611-65J00-000 O-RING,WATER PUMP |
17611-65J00-000 |
from US $4.37 |
||
|
3
|
3
01550-0825A-000 Bolt |
01550-0825A-000 |
from US $0.47 |
||
|
4
|
4
01550-0850A-000 Bolt |
01550-0850A-000 |
from US $5 |
||
|
5
|
5
17521-57L01-000 BELT,WATER PUMP 6PK1795 |
17521-57L01-000 |
from US $50.20 |
||
|
6
|
6
17530-54L10-000
Pulley,gen belt idler no.3
|
17530-54L10-000 |
— | ||
| replacement | |||||
|
6
|
6
17530-54L11-000 PULLEY,GEN BELT IDLER NO.2 |
17530-54L11-000 |
from US $93.71 |
||
|
7
|
7
17530-78K01-000 PULLEY,GEN BELT IDLER |
17530-78K01-000 |
from US $61.07 |
||
|
8
|
8
17532-54L10-000 SHIELD,GEN BELT IDLER PULLEY |
17532-54L10-000 |
US $8.48 |
||
|
9
|
9
17532-78K00-000 COVER,GEN BELT IDLER PULLEY |
17532-78K00-000 |
US $16.80 |
||
|
10
|
10
17540-54L00-000 TENSIONER ASSY,GEN BELT |
17540-54L00-000 |
from US $202.95 |
||
|
11
|
11
09108-10141-000 BOLT,STUD |
09108-10141-000 |
from US $2.13 |
||
|
12
|
12
09159-10046-XC0 NUT |
09159-10046-XC0 |
from US $0.92 |
||
|
13
|
13
01550-0825A-000 Bolt |
01550-0825A-000 |
from US $0.47 |
||
