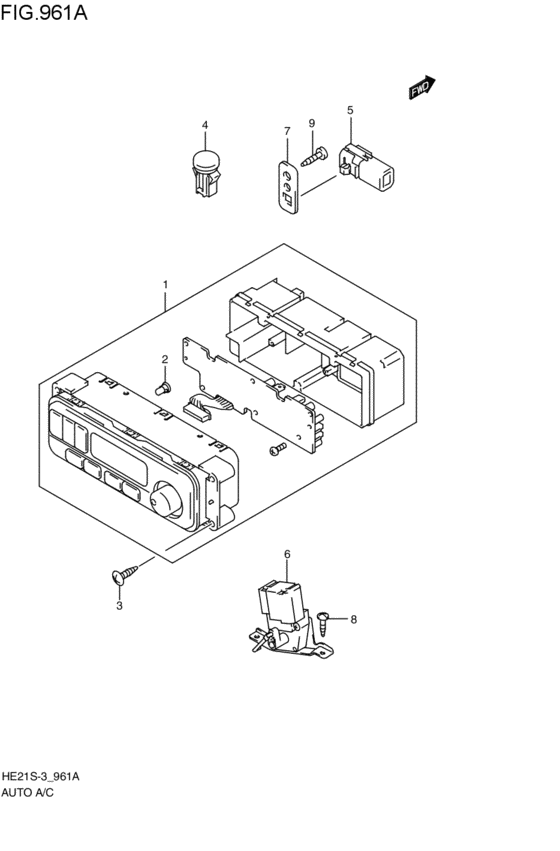

automatic air-conditioner (M; 2004-10-01~2005-11-01) Diagram Suzuki LAPIN
- Year
- 2004 - 2011
- Sales region
- Japan
- supercharge
- 4V
- drive
- 2WD
- transmission
- AT
- grade
- M
- abs
- ABS
- deice
- DEICE-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95610-75H22-ZL9
パネルユニット,オートエアコン(シルバー)
シルバ-; M; 2004-10-01~2005-11-01 |
95610-75H22-ZL9 |
— | ||
|
2
|
2
95614-83H00-000
バルブ
M; 2004-10-01~2005-11-01 |
95614-83H00-000 |
— | ||
|
3
|
3
03541-05123-000
Screw
M; 2004-10-01~2005-11-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
3
|
3
03541-0512B-000 SCREWM; 2004-10-01~2005-11-01 |
03541-0512B-000 |
from US $0.76 |
||
|
4
|
4
95642-64G20-000 SENSOR,SUN LIGHTDENSO; M; 2004-10-01~2005-11-01 |
95642-64G20-000 |
US $39.62 |
||
|
5
|
5
95643-65D00-000 SENSOR,OUTSIDE TEMPM; 2004-10-01~2005-11-01 |
95643-65D00-000 |
from US $19.20 |
||
|
6
|
6
95652-76G01-000 ACTUATOR,F/RM; 2004-10-01~2005-11-01 |
95652-76G01-000 |
US $88.32 |
||
|
7
|
7
95671-76G00-000 BRACKET,OUT DR TEMP SNSRBracket, out door temperature sensor M; 2004-10-01~2005-11-01 |
95671-76G00-000 |
US $3.02 |
||
|
8
|
8
03541-04123-000
Screw
M; 2004-10-01~2005-11-01 |
03541-04123-000 |
— | ||
| replacements | |||||
|
8
|
8
03541-0412B-000 SCREWScrew, plate M; 2004-10-01~2005-11-01 |
03541-0412B-000 |
from US $0.80 |
||
|
8
|
8
03541-0412A-000 SCREWScrew, speedometer M; 2004-10-01~2005-11-01 |
03541-0412A-000 |
from US $0.88 |
||
|
9
|
9
03541-05123-000
Screw
M; 2004-10-01~2005-11-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
9
|
9
03541-0512B-000 SCREWM; 2004-10-01~2005-11-01 |
03541-0512B-000 |
from US $0.76 |
||
