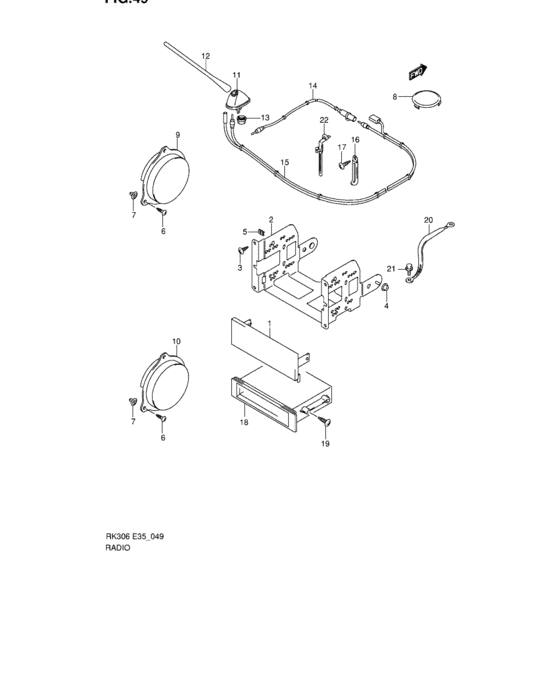

Radio (RADIO) Diagram Suzuki MR WAGON
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39161-74G00-000 COVER,RADIO HOLE |
39161-74G00-000 |
US $8.65 |
||
|
2
|
2
39321-54G03-000 BRACKET,TUNER |
39321-54G03-000 |
US $11.74 |
||
|
3
|
3
03142-05163-000
Screw
|
03142-05163-000 |
— | ||
| replacement | |||||
|
3
|
3
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
4
|
4
34955-54G00-000
ブッシュ,ラジオブラケット
|
34955-54G00-000 |
— | ||
| replacement | |||||
|
4
|
4
34955-54G10-000 BUSH,RADIO BRKT |
34955-54G10-000 |
from US $0.88 |
||
|
5
|
5
09148-05045-000 NUT |
09148-05045-000 |
from US $0.79 |
||
|
6
|
6
03242-06163-000
Screw
|
03242-06163-000 |
— | ||
| replacement | |||||
|
6
|
6
03241-0616C-000 SCREW |
03241-0616C-000 |
from US $0.76 |
||
|
7
|
7
09148-05035-000 NUT |
09148-05035-000 |
from US $0.88 |
||
|
8
|
8
39231-73H10-P4Z COVER,TWEETER HOLE |
39231-73H10-P4Z |
US $4.38 |
||
|
9
|
9
39239-73H20-000
COVER,SPEAKER HOLE,FR
|
39239-73H20-000 |
— | ||
|
10
|
10
39239-73H10-000 COVER,SPEAKER HOLE,RR |
39239-73H10-000 |
US $10.12 |
||
|
11
|
11
39253-73H01-000 BASE,ANTENNA |
39253-73H01-000 |
US $82.43 |
||
|
12
|
12
39251-78H00-000 ROD,ANTENNA |
39251-78H00-000 |
US $60.80 |
||
|
13
|
13
39269-78H00-000 NUT,ANTENNA |
39269-78H00-000 |
US $4.67 |
||
|
14
|
14
39271-76F60-000 FEEDER,ANT |
39271-76F60-000 |
US $24.29 |
||
|
15
|
15
39271-73H00-000 FEEDER,ANT ROOF |
39271-73H00-000 |
US $45.63 |
||
|
16
|
16
09404-06431-000
CLAMP(L:65)
|
09404-06431-000 |
— | ||
| replacements | |||||
|
16
|
16
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
16
|
16
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
16
|
16
09404-06038-000 Clamp(L:65) |
09404-06038-000 |
from US $2.40 |
||
|
17
|
17
03541-05123-000
Screw
|
03541-05123-000 |
— | ||
| replacement | |||||
|
17
|
17
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
|
18
|
18
39182-70E50-000
POCKETTUNER
|
39182-70E50-000 |
— | ||
| replacement | |||||
|
18
|
18
39182-70E51-000 POCKET,TUNER |
39182-70E51-000 |
from US $13.93 |
||
|
19
|
19
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
19
|
19
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
20
|
20
39312-76G10-000 WIRE,NOISE SUPPR |
39312-76G10-000 |
US $6.29 |
||
|
21
|
21
09115-06001-000 Bolt, lhBolt (6x16) |
09115-06001-000 |
US $0.86 |
||
| replacement | |||||
|
21
|
21
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
from US $0.86 |
||
|
22
|
22
09407-12404-000 CLAMP(L:140) |
09407-12404-000 |
from US $1.33 |
||
