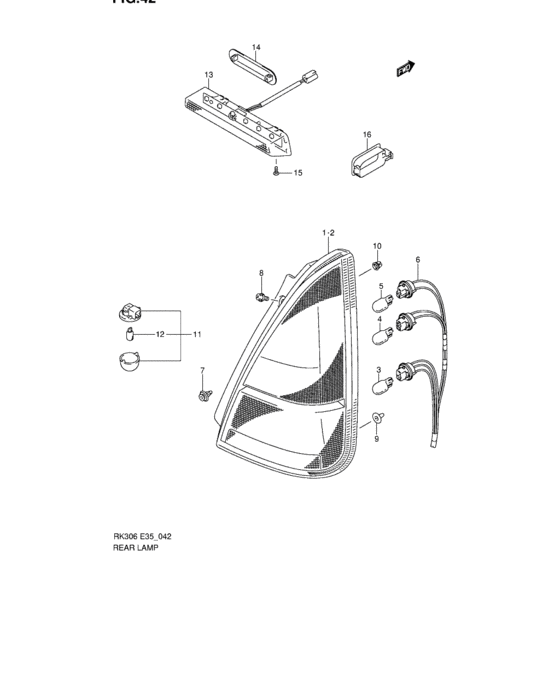

Rear lamp (REAR LAMP) Diagram Suzuki MR WAGON
- Year
- -
- Sales region
- Asia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35650-73H00-000 LAMP UNIT,RR COMB,R |
35650-73H00-000 |
US $181.06 |
||
|
2
|
2
35670-73H00-000 LAMP UNIT,RR COMB,L |
35670-73H00-000 |
US $181.06 |
||
|
3
|
3
09471-12192-000 BULB(12V21/5W) |
09471-12192-000 |
from US $3.19 |
||
|
4
|
4
09471-12191-000 BULB(12V21W) |
09471-12191-000 |
from US $4.23 |
||
|
5
|
5
09471-12202-000 BULB(12V21W/WY21W,AMBER) |
09471-12202-000 |
from US $5.76 |
||
|
6
|
6
35658-73H00-000 SOCKET&CORD ASSY |
35658-73H00-000 |
US $43.06 |
||
|
7
|
7
71812-78F00-000 CLIP |
71812-78F00-000 |
from US $1.67 |
||
|
8
|
8
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
8
|
8
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.96 |
||
|
9
|
9
35153-54G00-000 GROMMET,RR COMB LAMP |
35153-54G00-000 |
from US $1.53 |
||
|
10
|
10
35153-63G00-000 GROMMET,RR COMB LAMP |
35153-63G00-000 |
from US $2.07 |
||
|
11
|
11
35910-75F00-000
Lamp assy,license
|
35910-75F00-000 |
— | ||
| replacement | |||||
|
11
|
11
35910-75F01-000 Lamp assy,license |
35910-75F01-000 |
US $14.57 |
||
|
12
|
12
09471-12081-000
Bulb (12v,5w)
|
09471-12081-000 |
— | ||
| replacement | |||||
|
12
|
12
09471-12216-000 BULB(12V5W)Bulb (12v5w) |
09471-12216-000 |
from US $3.02 |
||
|
13
|
13
35810-82D20-000
Lamp assy,high mount stop
|
35810-82D20-000 |
— | ||
| replacement | |||||
|
13
|
13
35810-82D23-000 LAMP ASSY,HIGH MT STOP |
35810-82D23-000 |
US $108.93 |
||
|
14
|
14
35819-73H00-P4Z COVER,HMSL HOLE |
35819-73H00-P4Z |
US $2.17 |
||
|
15
|
15
02142-04123-000
Screw
|
02142-04123-000 |
— | ||
| replacement | |||||
|
15
|
15
02142-0412A-000 SCREW |
02142-0412A-000 |
from US $0.43 |
||
|
16
|
16
36216-54G00-P4Z COVER,LUGGAGE LAMP HOLE |
36216-54G00-P4Z |
from US $1.53 |
||
|
16
|
16
36216-54G00-R3J COVER,LUGGAGE LAMP HOLE |
36216-54G00-R3J |
US $2.69 |
||
