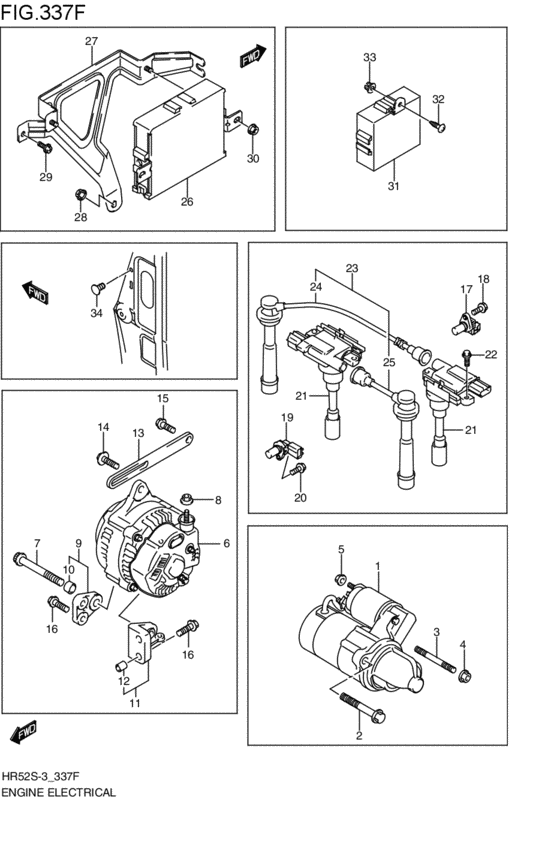

engine electrical (2005-04-01~2005-11-01) Diagram Suzuki OTHER MODELS
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 4WD
- grade
- D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-80G00-000 MOTOR ASSY,STARTING2005-04-01~2005-11-01 |
31100-80G00-000 |
US $732.16 |
||
|
2
|
2
01550-10603-000
Bolt
2005-04-01~2005-11-01 |
01550-10603-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-1060B-000 Bolt2005-04-01~2005-11-01 |
01550-1060B-000 |
US $1.60 |
||
|
2
|
2
01550-1060A-000 Bolt2005-04-01~2005-11-01 |
01550-1060A-000 |
from US $1.60 |
||
|
3
|
3
01421-10603-000
Stud bolt (l:60)
2005-04-01~2005-11-01 |
01421-10603-000 |
— | ||
| replacement | |||||
|
3
|
3
01421-1060A-000 BOLT,STUD2005-04-01~2005-11-01 |
01421-1060A-000 |
from US $1.68 |
||
|
4
|
4
08316-10103-000
Nut
2005-04-01~2005-11-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1010B-000 NUT2005-04-01~2005-11-01 |
08316-1010B-000 |
from US $0.80 |
||
|
5
|
5
08316-10083-000
Nut
2005-04-01~2005-11-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1008B-000 NUT2005-04-01~2005-11-01 |
08316-1008B-000 |
from US $0.76 |
||
|
6
|
6
31400-80G10-000
Generator assy
2005-04-01~2005-11-01 |
31400-80G10-000 |
— | ||
| replacements | |||||
|
6
|
6
31400-80G11-000
GENERATOR ASSY
2005-04-01~2005-11-01 |
31400-80G11-000 |
— | ||
|
6
|
6
31400-80G12-000 Generator Assy2005-04-01~2005-11-01 |
31400-80G12-000 |
from US $601.92 |
||
|
7
|
7
07120-10853-000
ボルト
2005-04-01~2005-11-01 |
07120-10853-000 |
— | ||
| replacement | |||||
|
7
|
7
07120-1085A-000 Bolt2005-04-01~2005-11-01 |
07120-1085A-000 |
from US $2.59 |
||
|
8
|
8
08316-10063-000
Nut
2005-04-01~2005-11-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1006B-000 NUT2005-04-01~2005-11-01 |
08316-1006B-000 |
from US $0.76 |
||
|
9
|
9
11550-64J01-000 BRACKET,GENERATOR2005-04-01~2005-11-01 |
11550-64J01-000 |
US $20.98 |
||
|
10
|
10
11555-60G01-000 BUSH2005-04-01~2005-11-01 |
11555-60G01-000 |
US $3.68 |
||
|
11
|
11
11550-54G10-000 BRACKET ASSY,GENERATOR NO.22005-04-01~2005-11-01 |
11550-54G10-000 |
US $31.20 |
||
|
12
|
12
04211-11169-000 PINPin, dowel 2005-04-01~2005-11-01 |
04211-11169-000 |
from US $1.06 |
||
|
13
|
13
11561-69G01-000 ARM,GENERATOR ADJUST2005-04-01~2005-11-01 |
11561-69G01-000 |
US $6.59 |
||
|
14
|
14
09118-08107-000 BOLT(8X25)2005-04-01~2005-11-01 |
09118-08107-000 |
US $1.12 |
||
|
15
|
15
01550-08203-000
Bolt
2005-04-01~2005-11-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0820B-000 Bolt2005-04-01~2005-11-01 |
01550-0820B-000 |
from US $0.91 |
||
|
15
|
15
01550-0820A-000 BoltBolt, funnel bracket 2005-04-01~2005-11-01 |
01550-0820A-000 |
from US $1.12 |
||
|
16
|
16
01550-08303-000
Bolt
2005-04-01~2005-11-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0830B-000 Bolt2005-04-01~2005-11-01 |
01550-0830B-000 |
from US $1.06 |
||
|
16
|
16
01550-0830A-000 BoltBolt, mount oil seal cover 2005-04-01~2005-11-01 |
01550-0830A-000 |
from US $1.06 |
||
|
17
|
17
33220-63J10-000 SENSOR ASSY,POSITION2005-04-01~2005-11-01 |
33220-63J10-000 |
US $79.12 |
||
| replacement | |||||
|
17
|
17
33220-50M30-000 SENSOR ASSY,CAM POSITION2005-04-01~2005-11-01 |
33220-50M30-000 |
US $90.40 |
||
|
18
|
18
01550-06163-000
Bolt
2005-04-01~2005-11-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0616B-000 Bolt2005-04-01~2005-11-01 |
01550-0616B-000 |
from US $0.76 |
||
|
18
|
18
01550-0616A-000 Bolt2005-04-01~2005-11-01 |
01550-0616A-000 |
from US $0.76 |
||
|
19
|
19
33220-63J00-000
SENSOR ASSY,POSITION
2005-04-01~2005-11-01 |
33220-63J00-000 |
— | ||
| replacement | |||||
|
19
|
19
33220-64L20-000 SENSOR ASSY, CRANK POSITION2005-04-01~2005-11-01 |
33220-64L20-000 |
US $81.60 |
||
|
20
|
20
09103-06240-000 BOLT(6X16)2005-04-01~2005-11-01 |
09103-06240-000 |
from US $1.04 |
||
|
21
|
21
33400-65G01-000
Coil assy,ignition
2005-04-01~2005-11-01 |
33400-65G01-000 |
— | ||
| replacement | |||||
|
21
|
21
33400-65G02-000 COIL ASSY,IGNITION DENSO2005-04-01~2005-11-01 |
33400-65G02-000 |
US $264 |
||
|
22
|
22
01550-06203-000
Bolt
2005-04-01~2005-11-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
22
|
22
01550-0620B-000 BoltBolt, inspection cap 2005-04-01~2005-11-01 |
01550-0620B-000 |
from US $0.76 |
||
|
23
|
23
33705-80G00-000 CORD SET,HIGH TENSION2005-04-01~2005-11-01 |
33705-80G00-000 |
US $48.80 |
||
|
24
|
24
33730-80G00-000 CORD,HIGH TENSION NO.22005-04-01~2005-11-01 |
33730-80G00-000 |
US $26.40 |
||
|
25
|
25
33740-80G00-000 CORD,HIGH TENSION NO.32005-04-01~2005-11-01 |
33740-80G00-000 |
US $24.80 |
||
|
26
|
26
33920-70H01-000
CONTROLLER ASSY,EPI-A/C
M13A:4WD; 2005-04-01~2005-11-01 |
33920-70H01-000 |
— | ||
|
27
|
27
33924-70H00-000
BRACKET,EPI CONT
2005-04-01~2005-11-01 |
33924-70H00-000 |
— | ||
|
28
|
28
09159-06076-000 NUT2005-04-01~2005-11-01 |
09159-06076-000 |
from US $1.28 |
||
|
29
|
29
02162-06123-000
Bolt (6x12)
2005-04-01~2005-11-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
29
|
29
02162-0612B-000 SCREWBolt 2005-04-01~2005-11-01 |
02162-0612B-000 |
from US $0.80 |
||
|
29
|
29
02162-0612A-000 SCREWBolt, bracket 2005-04-01~2005-11-01 |
02162-0612A-000 |
from US $0.80 |
||
|
30
|
30
08316-10063-000
Nut
2005-04-01~2005-11-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
30
|
30
08316-1006B-000 NUT2005-04-01~2005-11-01 |
08316-1006B-000 |
from US $0.76 |
||
|
31
|
31
38885-70H10-000
コントローラアッシ,EMCD
4WD; 2005-04-01~2005-11-01 |
38885-70H10-000 |
— | ||
|
32
|
32
03242-06163-000
Screw
4WD; 2005-04-01~2005-11-01 |
03242-06163-000 |
— | ||
| replacement | |||||
|
32
|
32
03241-0616C-000 SCREW4WD; 2005-04-01~2005-11-01 |
03241-0616C-000 |
from US $0.76 |
||
|
33
|
33
09148-06007-000 NUT4WD; 2005-04-01~2005-11-01 |
09148-06007-000 |
US $0.91 |
||
|
34
|
34
09250-05011-5PK CAP(OD:12)Plug ブラック; 2005-04-01~2005-11-01 |
09250-05011-5PK |
from US $2.21 |
||
