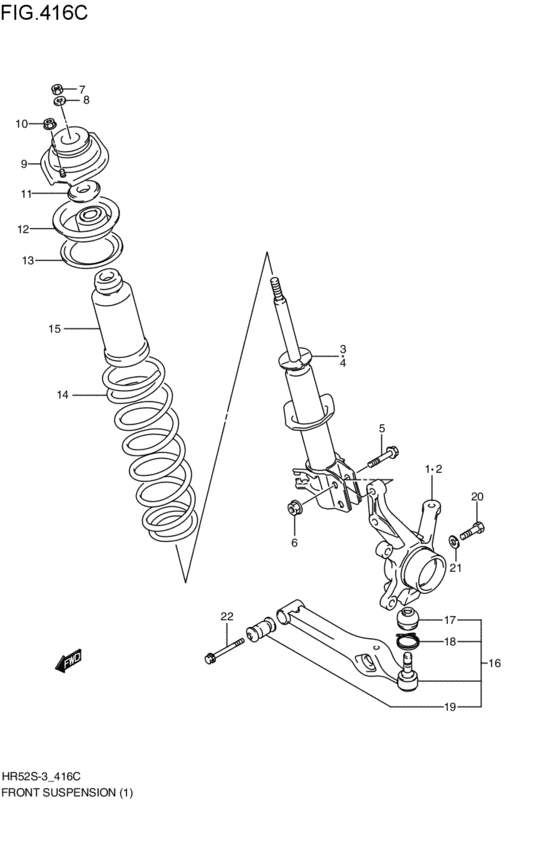

front suspension (4WD; 2005-04-01~2005-11-01) Diagram Suzuki OTHER MODELS
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 4WD
- grade
- D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45110-70810-000 KNUCKLE SET,STEERING,R4WD; 2005-04-01~2005-11-01 |
45110-70810-000 |
US $305.44 |
||
|
2
|
2
45150-70810-000 KNUCKLE SET,STEERING,L4WD; 2005-04-01~2005-11-01 |
45150-70810-000 |
from US $265.64 |
||
|
3
|
3
41601-70H70-000 STRUT ASSY,FR SUSPENSION,RH4WD; 2005-04-01~2005-11-01 |
41601-70H70-000 |
US $540.80 |
||
|
4
|
4
41602-70H70-000 STRUT ASSY,FR SUSPENSION,LH4WD; 2005-04-01~2005-11-01 |
41602-70H70-000 |
US $540.80 |
||
|
5
|
5
09103-12051-000 BOLT(12X50)4WD; 2005-04-01~2005-11-01 |
09103-12051-000 |
from US $2.56 |
||
|
6
|
6
08316-10123-000
Nut
4WD; 2005-04-01~2005-11-01 |
08316-10123-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1012A-000 NUT4WD; 2005-04-01~2005-11-01 |
08316-1012A-000 |
from US $0.96 |
||
|
7
|
7
09140-12045-000 NUT4WD; 2005-04-01~2005-11-01 |
09140-12045-000 |
from US $1.76 |
||
|
8
|
8
09162-12006-000 WASHER,LOCK4WD; 2005-04-01~2005-11-01 |
09162-12006-000 |
from US $1.28 |
||
|
9
|
9
41710-80G10-000 SUPPORT,FRONT STRUT4WD; 2005-04-01~2005-11-01 |
41710-80G10-000 |
from US $67.20 |
||
|
10
|
10
09159-08104-000 NUT4WD; 2005-04-01~2005-11-01 |
09159-08104-000 |
from US $1.94 |
||
|
11
|
11
41741-50E00-000 BEARING,FR STRUTBearing, front strut 4WD; 2005-04-01~2005-11-01 |
41741-50E00-000 |
from US $11.16 |
||
|
12
|
12
41230-70H00-000 SEAT,FRONT SPRING UPPER4WD; 2005-04-01~2005-11-01 |
41230-70H00-000 |
from US $18.99 |
||
|
13
|
13
41211-70H00-000 SEAT,FRONT COIL SPRING RUBBER4WD; 2005-04-01~2005-11-01 |
41211-70H00-000 |
US $25.09 |
||
|
14
|
14
41111-70HB0-000 SPRING,FRONT COIL4WD; 2005-04-01~2005-11-01 |
41111-70HB0-000 |
US $105.62 |
||
|
15
|
15
42111-70B11-000 STOPPER,BUMP4WD; 2005-04-01~2005-11-01 |
42111-70B11-000 |
US $15.77 |
||
|
16
|
16
45200-70H00-000
アームアッシ,フロントサスペンションコントロール
4WD; 2005-04-01~2005-11-01 |
45200-70H00-000 |
— | ||
| replacement | |||||
|
16
|
16
45200-70H01-000 ARM ASSY,FR SPNSN CONTROL4WD; 2005-04-01~2005-11-01 |
45200-70H01-000 |
from US $141.91 |
||
|
17
|
17
45723-70B00-000
SEAL SET,DUST
4WD; 2005-04-01~2005-11-01 |
45723-70B00-000 |
— | ||
| replacements | |||||
|
17
|
17
45723-70B01-000
Seal Set,dust
4WD; 2005-04-01~2005-11-01 |
45723-70B01-000 |
— | ||
|
17
|
17
45700-70810-000 Seal Set,dust4WD; 2005-04-01~2005-11-01 |
45700-70810-000 |
from US $20.48 |
||
|
18
|
18
09401-27402-000 CLIP4WD; 2005-04-01~2005-11-01 |
09401-27402-000 |
from US $1.04 |
||
|
19
|
19
45261-77A10-000 BUSH,FR SUSPENSION CONTROL4WD; 2005-04-01~2005-11-01 |
45261-77A10-000 |
from US $19.15 |
||
|
20
|
20
09100-10169-000 BOLT(10X40)4WD; 2005-04-01~2005-11-01 |
09100-10169-000 |
US $2.08 |
||
|
21
|
21
08321-01103-000
Washer
4WD; 2005-04-01~2005-11-01 |
08321-01103-000 |
— | ||
| replacements | |||||
|
21
|
21
08321-0110B-000 WASHER,LOCKWasher, knuckle end 4WD; 2005-04-01~2005-11-01 |
08321-0110B-000 |
from US $0.96 |
||
|
21
|
21
08321-0110A-000 WASHER,LOCK4WD; 2005-04-01~2005-11-01 |
08321-0110A-000 |
from US $0.96 |
||
|
22
|
22
09117-10025-000
Bolt (10x89.5)
4WD; 2005-04-01~2005-11-01 |
09117-10025-000 |
— | ||
| replacement | |||||
|
22
|
22
45215-72J10-000 BOLT,SPNSN ARM FR BUSHING4WD; 2005-04-01~2005-11-01 |
45215-72J10-000 |
from US $4.43 |
||
