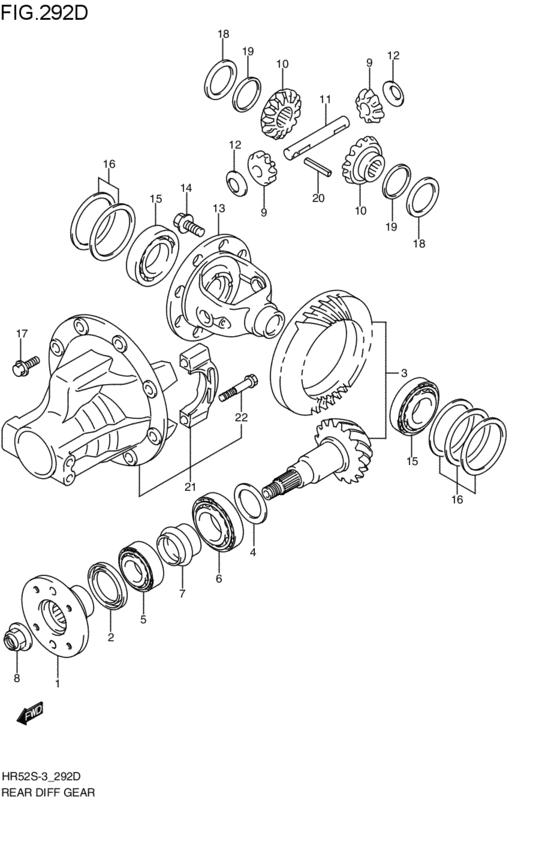

リヤデファレンシャルギヤ (4WD; 2005-04-01~2005-11-01) Diagram Suzuki OTHER MODELS
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 4WD
- grade
- D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27360-70H20-000
FLANGE,UNIVERSAL JOINT
4WD; 2005-04-01~2005-11-01 |
27360-70H20-000 |
— | ||
|
2
|
2
09283-38023-000 SEAL,OIL(38X55X9.5)4WD; 2005-04-01~2005-11-01 |
09283-38023-000 |
US $9.16 |
||
|
3
|
3
27300-70871-000
BEVEL PINION&GEAR SET
4WD; 2005-04-01~2005-11-01 |
27300-70871-000 |
— | ||
|
4
|
4
09181-35023-000 SHIM(35X42X0.3)4WD; 2005-04-01~2005-11-01 |
09181-35023-000 |
from US $1.67 |
||
| replacement | |||||
|
4
|
4
09181-35101-000 SHIM(35X42X0.5)Shim (t:0.5) 4WD; 2005-04-01~2005-11-01 |
09181-35101-000 |
from US $1.49 |
||
|
4
|
4
09181-35111-000 SHIM(35X42X1)4WD; 2005-04-01~2005-11-01 |
09181-35111-000 |
from US $2.24 |
||
|
4
|
4
09181-35112-000 SHIM(35X42X1.03)4WD; 2005-04-01~2005-11-01 |
09181-35112-000 |
from US $2.24 |
||
|
4
|
4
09181-35114-000 SHIM(35X42X1.06)4WD; 2005-04-01~2005-11-01 |
09181-35114-000 |
from US $1.46 |
||
|
4
|
4
09181-35115-000 SHIM(35X42X1.09)4WD; 2005-04-01~2005-11-01 |
09181-35115-000 |
from US $2.24 |
||
|
4
|
4
09181-35117-000 SHIM(35X42X1.12)4WD; 2005-04-01~2005-11-01 |
09181-35117-000 |
from US $1.44 |
||
|
4
|
4
09181-35118-000 SHIM(35X42X1.15)4WD; 2005-04-01~2005-11-01 |
09181-35118-000 |
from US $1.76 |
||
|
4
|
4
09181-35119-000 SHIM(35X42X1.18)4WD; 2005-04-01~2005-11-01 |
09181-35119-000 |
from US $1.82 |
||
|
4
|
4
09181-35121-000 SHIM(35X42X1.21)4WD; 2005-04-01~2005-11-01 |
09181-35121-000 |
from US $1.58 |
||
|
4
|
4
09181-35122-000 SHIM(35X42X1.24)4WD; 2005-04-01~2005-11-01 |
09181-35122-000 |
from US $1.76 |
||
|
4
|
4
09181-35124-000 SHIM(35X42X1.27)4WD; 2005-04-01~2005-11-01 |
09181-35124-000 |
from US $1.69 |
||
|
4
|
4
09181-35125-000 SHIM(35X42X1.3)4WD; 2005-04-01~2005-11-01 |
09181-35125-000 |
from US $1.76 |
||
|
5
|
5
09265-30019-000 BEARING(30X55X17)4WD; 2005-04-01~2005-11-01 |
09265-30019-000 |
US $43.06 |
||
|
6
|
6
09265-35001-000 BEARING(35X72X24.25)Bearing, propeller shaft 4WD; 2005-04-01~2005-11-01 |
09265-35001-000 |
US $56.30 |
||
|
7
|
7
27315-70H20-000 SPACER,DRIVE BEVEL PINION4WD; 2005-04-01~2005-11-01 |
27315-70H20-000 |
US $13.87 |
||
|
8
|
8
09159-16018-000 NUT4WD; 2005-04-01~2005-11-01 |
09159-16018-000 |
from US $2.24 |
||
|
9
|
9
27331-78FJ1-000 PINION,DIFFERENTIAL4WD; 2005-04-01~2005-11-01 |
27331-78FJ1-000 |
from US $25.94 |
||
|
10
|
10
27341-82001-000
Gear,differential
4WD; 2005-04-01~2005-11-01 |
27341-82001-000 |
— | ||
| replacement | |||||
|
10
|
10
27341-76G12-000 GEAR,DIFF4WD; 2005-04-01~2005-11-01 |
27341-76G12-000 |
from US $56.72 |
||
|
11
|
11
27351-62B00-000 SHAFT,DIFF SIDE PINION4WD; 2005-04-01~2005-11-01 |
27351-62B00-000 |
from US $13.64 |
||
|
12
|
12
09164-15003-000 WASHER4WD; 2005-04-01~2005-11-01 |
09164-15003-000 |
from US $1.01 |
||
|
13
|
13
27411-75F11-000 CASE,DIFF4WD; 2005-04-01~2005-11-01 |
27411-75F11-000 |
US $166.70 |
||
|
14
|
14
09103-10309-000 BOLT(10X16)4WD; 2005-04-01~2005-11-01 |
09103-10309-000 |
from US $1.67 |
||
|
15
|
15
09262-35057-000 BEARING(35X72X17)4WD; 2005-04-01~2005-11-01 |
09262-35057-000 |
US $18.40 |
||
|
16
|
16
09181-62003-000 SHIM(62X71X0.1)4WD; 2005-04-01~2005-11-01 |
09181-62003-000 |
from US $0.83 |
||
|
16
|
16
09181-62004-000 SHIM(62X71X0.3)4WD; 2005-04-01~2005-11-01 |
09181-62004-000 |
from US $0.45 |
||
|
16
|
16
09181-62005-000 SHIM(62X71X0.5)4WD; 2005-04-01~2005-11-01 |
09181-62005-000 |
from US $0.45 |
||
|
16
|
16
09181-62007-000 SHIM(62X71X0.7)4WD; 2005-04-01~2005-11-01 |
09181-62007-000 |
US $11.80 |
||
|
17
|
17
09112-08011-000 BOLT(8X25)4WD; 2005-04-01~2005-11-01 |
09112-08011-000 |
US $19.50 |
||
|
18
|
18
09160-35002-000 WASHER(35X46X1)4WD; 2005-04-01~2005-11-01 |
09160-35002-000 |
from US $1.53 |
||
|
18
|
18
09160-35003-000 WASHER(35X46X1.1)4WD; 2005-04-01~2005-11-01 |
09160-35003-000 |
from US $1.94 |
||
|
18
|
18
09160-35004-000 WASHER(35X46X1.2)4WD; 2005-04-01~2005-11-01 |
09160-35004-000 |
from US $1.94 |
||
|
18
|
18
09160-35006-000 WASHER(35X46X0.9)4WD; 2005-04-01~2005-11-01 |
09160-35006-000 |
from US $1.73 |
||
|
18
|
18
09160-35008-000 WASHER(35X46X0.95)Washer (35x46x0.95) 4WD; 2005-04-01~2005-11-01 |
09160-35008-000 |
from US $1.31 |
||
|
18
|
18
09160-35009-000 WASHER(35X46X1.05)4WD; 2005-04-01~2005-11-01 |
09160-35009-000 |
from US $1.73 |
||
|
18
|
18
09160-35010-000 WASHER(35X46X1.15)4WD; 2005-04-01~2005-11-01 |
09160-35010-000 |
from US $1.69 |
||
|
19
|
19
09164-35003-000 WASHER4WD; 2005-04-01~2005-11-01 |
09164-35003-000 |
from US $4.07 |
||
|
20
|
20
09205-05016-000 PIN,SPRING(5X32)4WD; 2005-04-01~2005-11-01 |
09205-05016-000 |
from US $0.99 |
||
|
21
|
21
27450-70H20-000
CARRIER ASSY,DIFF
4WD; 2005-04-01~2005-11-01 |
27450-70H20-000 |
— | ||
|
22
|
22
09111-08082-000 BOLT(8X49.5)4WD; 2005-04-01~2005-11-01 |
09111-08082-000 |
US $18.40 |
||
