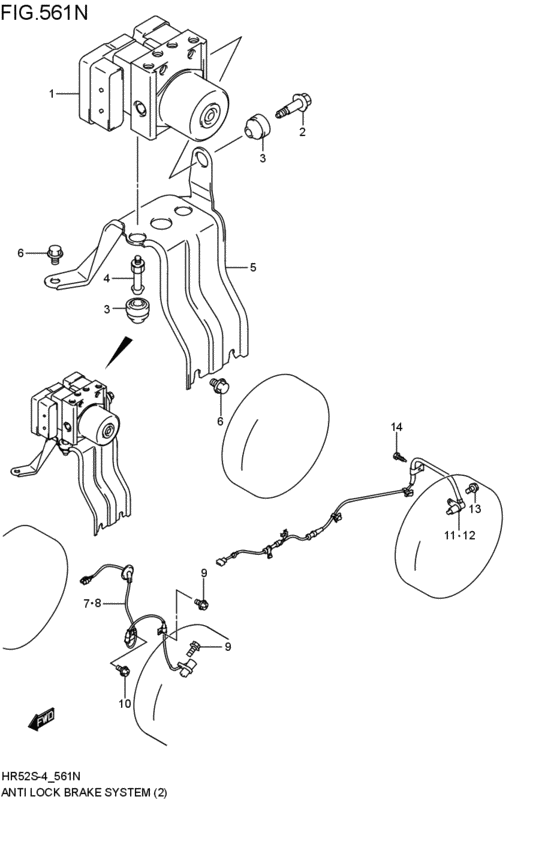

antilock brake system (4WD; 2006-05-01~) Diagram Suzuki OTHER MODELS
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 4WD
- grade
- D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56110-70HB0-000
アクチュエータアッシ,ABS
4WD; 2006-05-01~ |
56110-70HB0-000 |
— | ||
| replacement | |||||
|
1
|
1
56110-70HB2-000
ACTUATOR ASSY,ABS
4WD; 2006-05-01~ |
56110-70HB2-000 |
— | ||
|
2
|
2
56111-75F00-000 BOLT,ACTUATOR MOUNT4WD; 2006-05-01~ |
56111-75F00-000 |
US $4.11 |
||
|
3
|
3
56112-75F00-000 DAMPER,ACTUATOR MOUNT4WD; 2006-05-01~ |
56112-75F00-000 |
from US $2.03 |
||
|
4
|
4
56113-59J00-000 BOLT,ACTUATOR LWR MOUNT4WD; 2006-05-01~ |
56113-59J00-000 |
from US $2.03 |
||
|
5
|
5
56161-70H10-000
BRACKET,ACTUATOR
4WD; 2006-05-01~ |
56161-70H10-000 |
— | ||
|
6
|
6
01551-0812A-000 Bolt4WD; 2006-05-01~ |
01551-0812A-000 |
US $13.20 |
||
|
7
|
7
56210-70H00-000 SENSOR,FR WHEEL,R4WD; 2006-05-01~ |
56210-70H00-000 |
US $139.84 |
||
|
8
|
8
56220-70H00-000 SENSOR,FR WHEEL,L4WD; 2006-05-01~ |
56220-70H00-000 |
US $139.84 |
||
|
9
|
9
02162-0616C-000 SCREW4WD; 2006-05-01~ |
02162-0616C-000 |
from US $0.80 |
||
| replacement | |||||
|
9
|
9
02162-0616B-000 SCREWBolt, adjust 4WD; 2006-05-01~ |
02162-0616B-000 |
from US $0.96 |
||
|
10
|
10
02162-0612A-000 SCREWBolt, bracket 4WD; 2006-05-01~ |
02162-0612A-000 |
from US $0.79 |
||
|
11
|
11
56310-70H11-000
SENSOR,RR WHEEL,R
4WD; 2006-05-01~ |
56310-70H11-000 |
— | ||
| replacement | |||||
|
11
|
11
56310-70H12-000 SENSOR,RR WHEEL,R4WD; 2006-05-01~ |
56310-70H12-000 |
US $171.86 |
||
|
12
|
12
56320-70H11-000
SENSOR,RR WHEEL,L
4WD; 2006-05-01~ |
56320-70H11-000 |
— | ||
| replacement | |||||
|
12
|
12
56320-70H12-000 SENSOR,RR WHEEL,L4WD; 2006-05-01~ |
56320-70H12-000 |
US $171.86 |
||
|
13
|
13
02162-0612A-000 SCREWBolt, bracket 4WD; 2006-05-01~ |
02162-0612A-000 |
from US $0.79 |
||
|
14
|
14
09132-05028-000 SCREW(5X8)4WD; 2006-05-01~ |
09132-05028-000 |
US $12.90 |
||
