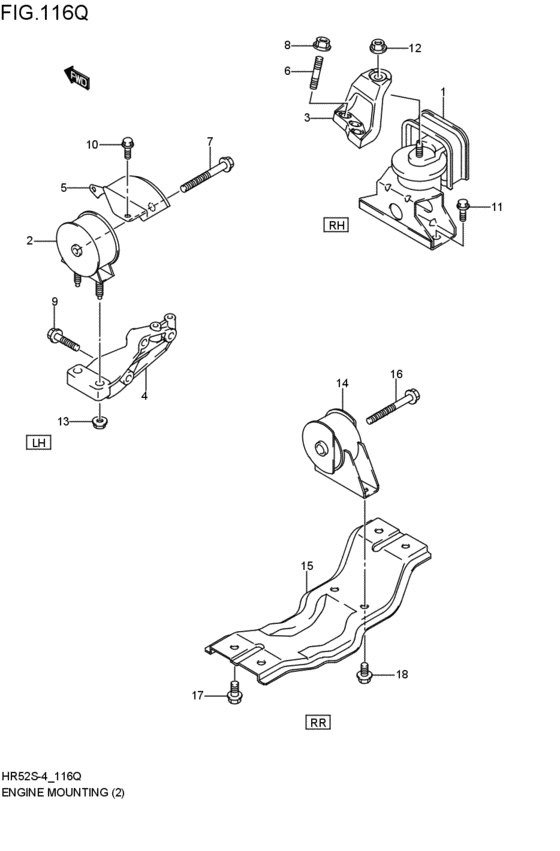

engine mounting (4WD; 2006-05-01~) Diagram Suzuki OTHER MODELS
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 4WD
- grade
- D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-70H00-000 MOUNTING,ENG,R4WD; 2006-05-01~ |
11610-70H00-000 |
from US $276.05 |
||
|
2
|
2
11620-70H00-000 MOUNTING,ENG,L4WD; 2006-05-01~ |
11620-70H00-000 |
US $203.20 |
||
|
3
|
3
11641-70H00-000 BRACKET,ENG MTG,R4WD; 2006-05-01~ |
11641-70H00-000 |
US $41.58 |
||
|
4
|
4
11651-79C00-000 BRACKET,ENG MTG,L4WD; 2006-05-01~ |
11651-79C00-000 |
US $67.34 |
||
|
5
|
5
11671-78F01-000 BRACKET,ENG MTG BODY,L4WD; 2006-05-01~ |
11671-78F01-000 |
US $23.37 |
||
|
6
|
6
09108-10136-000 BOLT,STUD(10X50)4WD; 2006-05-01~ |
09108-10136-000 |
US $2.40 |
||
|
7
|
7
09113-10005-000 BOLT(10X90)4WD; 2006-05-01~ |
09113-10005-000 |
from US $2.41 |
||
|
8
|
8
09159-10115-000 NUT4WD; 2006-05-01~ |
09159-10115-000 |
from US $2.58 |
||
|
9
|
9
01550-1045A-000 Bolt4WD; 2006-05-01~ |
01550-1045A-000 |
US $19.50 |
||
|
10
|
10
01551-0825A-000 Bolt4WD; 2006-05-01~ |
01551-0825A-000 |
from US $1.12 |
||
|
11
|
11
01551-1025A-000 Bolt4WD; 2006-05-01~ |
01551-1025A-000 |
US $1.12 |
||
|
12
|
12
09159-10115-000 NUT4WD; 2006-05-01~ |
09159-10115-000 |
from US $2.58 |
||
|
13
|
13
08316-1010A-000 NUTNut, kick starter 4WD; 2006-05-01~ |
08316-1010A-000 |
from US $0.76 |
||
|
14
|
14
11710-70H10-000
MOUNTING,ENG RR
4WD; 2006-05-01~ |
11710-70H10-000 |
— | ||
|
15
|
15
11730-70H00-000 MEMBER,ENG RR MTG4WD; 2006-05-01~ |
11730-70H00-000 |
US $86.11 |
||
|
16
|
16
09103-10341-000 BOLT(10X80)4WD; 2006-05-01~ |
09103-10341-000 |
US $2.72 |
||
|
17
|
17
01551-1030A-000 Bolt4WD; 2006-05-01~ |
01551-1030A-000 |
US $19.50 |
||
|
18
|
18
01551-1020A-000 Bolt4WD; 2006-05-01~ |
01551-1020A-000 |
US $17.30 |
