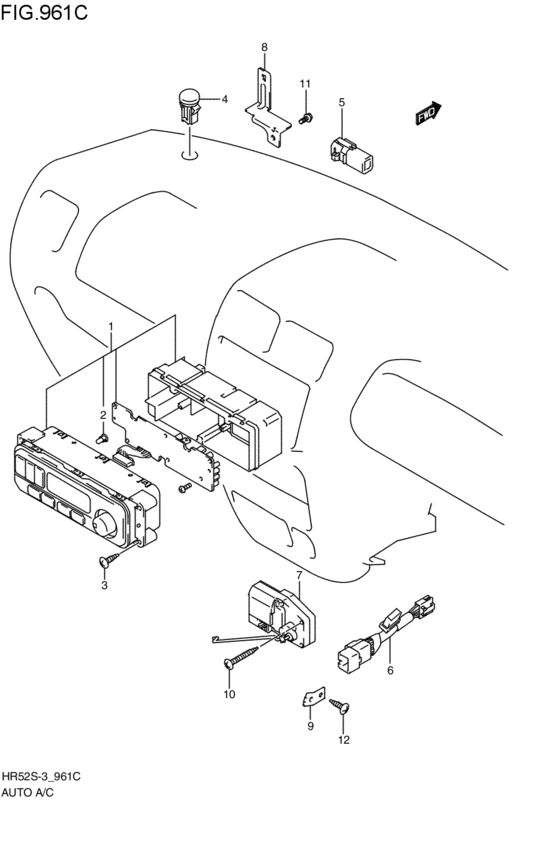

automatic air-conditioner (E,EX,L; 2005-04-01~2005-11-01) Diagram Suzuki OTHER MODELS
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- grade
- E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95610-70H50-ZH3 PANEL ASSY,AUTO A/Cシルバ-; E,L; 2005-04-01~2005-11-01 |
95610-70H50-ZH3 |
US $524.48 |
||
|
2
|
2
95614-83H00-000
バルブ
E,EX,L; 2005-04-01~2005-11-01 |
95614-83H00-000 |
— | ||
|
3
|
3
03541-05123-000
Screw
E,EX,L; 2005-04-01~2005-11-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
3
|
3
03541-0512B-000 SCREWE,EX,L; 2005-04-01~2005-11-01 |
03541-0512B-000 |
from US $0.76 |
||
|
4
|
4
95642-64G20-000 SENSOR,SUN LIGHTDENSO; E,EX,L; 2005-04-01~2005-11-01 |
95642-64G20-000 |
US $39.62 |
||
|
5
|
5
95643-65D00-000 SENSOR,OUTSIDE TEMPE,EX,L; 2005-04-01~2005-11-01 |
95643-65D00-000 |
from US $19.20 |
||
|
6
|
6
95633-78F80-000
ハーネス,アクチュエータジョイント
E,EX,L; 2005-04-01~2005-11-01 |
95633-78F80-000 |
— | ||
|
7
|
7
95652-78F80-000
アクチュエータ,フレッシュ/サーキュレーション
E,EX,L; 2005-04-01~2005-11-01 |
95652-78F80-000 |
— | ||
|
8
|
8
95671-70H00-000
ブラケット,アウトドアテンパレチャセンサ
E,EX,L; 2005-04-01~2005-11-01 |
95671-70H00-000 |
— | ||
|
9
|
9
95672-78F80-000
ブラケット,ジョイントハーネス
E,EX,L; 2005-04-01~2005-11-01 |
95672-78F80-000 |
— | ||
|
10
|
10
03541-04303-000
Screw,lower
E,EX,L; 2005-04-01~2005-11-01 |
03541-04303-000 |
— | ||
| replacement | |||||
|
10
|
10
03541-0430A-000 SCREWE,EX,L; 2005-04-01~2005-11-01 |
03541-0430A-000 |
US $10.30 |
||
|
11
|
11
02162-06123-000
Bolt (6x12)
E,EX,L; 2005-04-01~2005-11-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
11
|
11
02162-0612B-000 SCREWBolt E,EX,L; 2005-04-01~2005-11-01 |
02162-0612B-000 |
from US $0.80 |
||
|
11
|
11
02162-0612A-000 SCREWBolt, bracket E,EX,L; 2005-04-01~2005-11-01 |
02162-0612A-000 |
from US $0.79 |
||
|
12
|
12
03541-05123-000
Screw
E,EX,L; 2005-04-01~2005-11-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
12
|
12
03541-0512B-000 SCREWE,EX,L; 2005-04-01~2005-11-01 |
03541-0512B-000 |
from US $0.76 |
||
