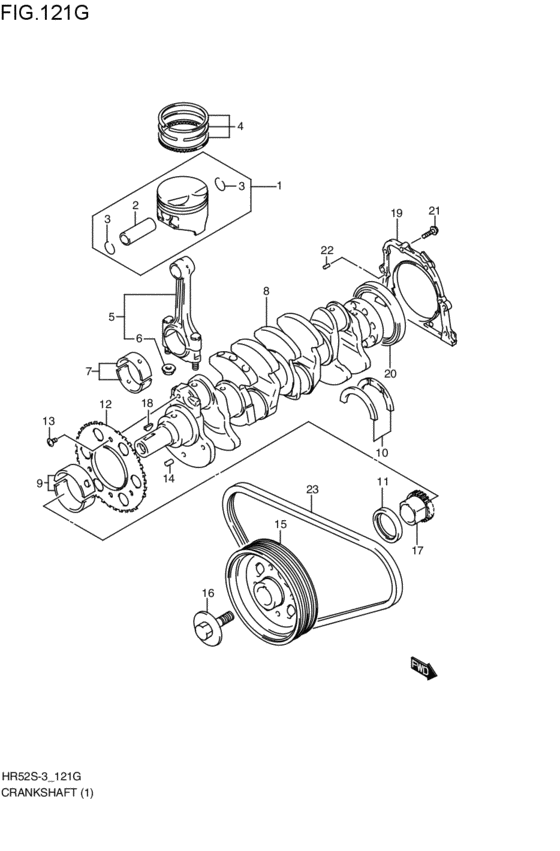

crankshaft (M13A; 2005-04-01~2005-11-01) Diagram Suzuki OTHER MODELS
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- grade
- E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-69811-000 PISTON SET,STDM13A; 2005-04-01~2005-11-01 |
12100-69811-000 |
from US $58.51 |
||
|
2
|
2
12151-85FA0-000 PIN,PISTONM13A; 2005-04-01~2005-11-01 |
12151-85FA0-000 |
from US $7.02 |
||
|
3
|
3
09381-20004-000 CIRCLIPSnap ring M13A; 2005-04-01~2005-11-01 |
09381-20004-000 |
from US $1.52 |
||
|
4
|
4
12140-54GA0-000 RING SET,PISTON STDM13A; 2005-04-01~2005-11-01 |
12140-54GA0-000 |
from US $49.59 |
||
|
5
|
5
12160-70H00-000 Connrod assyM13A; 2005-04-01~2005-11-01 |
12160-70H00-000 |
US $88.40 |
||
| replacement | |||||
|
5
|
5
12160-70H10-000 CONNROD ASSYM13A; 2005-04-01~2005-11-01 |
12160-70H10-000 |
from US $88.40 |
||
|
6
|
6
09159-08114-000 NUTM13A; 2005-04-01~2005-11-01 |
09159-08114-000 |
from US $1.71 |
||
|
7
|
7
12100-70880-0A0 BEARING SET,CONNROD GREENカラー:グリーン; M13A; 2005-04-01~2005-11-01 |
12100-70880-0A0 |
from US $15.64 |
||
|
7
|
7
12100-70880-0B0 BEARING SET,CONNROD BLACKカラー:ブラック; M13A; 2005-04-01~2005-11-01 |
12100-70880-0B0 |
from US $16.99 |
||
|
7
|
7
12100-70880-0C0 BEARING SET,CONNROD NONカラー:ナシ; M13A; 2005-04-01~2005-11-01 |
12100-70880-0C0 |
from US $19.08 |
||
|
7
|
7
12100-70880-0D0 BEARING SET,CONNROD YELLOWカラー:イエロー; M13A; 2005-04-01~2005-11-01 |
12100-70880-0D0 |
from US $12.94 |
||
|
7
|
7
12100-70880-0E0 BEARING SET,CONNROD BLUEカラー:ブルー; M13A; 2005-04-01~2005-11-01 |
12100-70880-0E0 |
US $15.46 |
||
|
7
|
7
12100-70880-025 BEARING SET,CONNROD RED (US 0.25, T1.625)カラー:レッド; M13A; 2005-04-01~2005-11-01 |
12100-70880-025 |
from US $17.10 |
||
|
8
|
8
12221-69G10-000 CRANKSHAFTM13A; 2005-04-01~2005-11-01 |
12221-69G10-000 |
from US $615.94 |
||
|
9
|
9
12340-69GA0-0A0 BEARING SET,CRANKSHAFT STD (PINK)カラー:ピンク; M13A; 2005-04-01~2005-11-01 |
12340-69GA0-0A0 |
from US $16.56 |
||
|
9
|
9
12340-69GA0-0B0 BEARING SET,CRANKSHAFT STD (PURPLE)カラー:パープル; M13A; 2005-04-01~2005-11-01 |
12340-69GA0-0B0 |
from US $16.38 |
||
|
9
|
9
12340-69GA0-0C0 BEARING SET,CRANKSHAFT STD (BROWN)カラー:ブラウン; M13A; 2005-04-01~2005-11-01 |
12340-69GA0-0C0 |
from US $13.86 |
||
|
9
|
9
12340-75FA0-0A0 BEARING SET,CRANKSHAFT STD (GREEN)カラー:グリーン; M13A; 2005-04-01~2005-11-01 |
12340-75FA0-0A0 |
from US $14.74 |
||
|
9
|
9
12340-75FA0-0B0 BEARING SET,CRANKSHAFT STD (BLACK)カラー:ブラック; M13A; 2005-04-01~2005-11-01 |
12340-75FA0-0B0 |
from US $15.44 |
||
|
9
|
9
12300-69850-0AA BEARING SET,CRANK RED/PINKカラー:レッド/ピンク; M13A; 2005-04-01~2005-11-01 |
12300-69850-0AA |
from US $15.62 |
||
|
9
|
9
12300-69850-0BA BEARING SET,CRANK RED/PURPLEカラー:レッド/パープル; M13A; 2005-04-01~2005-11-01 |
12300-69850-0BA |
from US $9.65 |
||
|
9
|
9
12300-69850-0CA BEARING SET,CRANK RED/BROWNカラー:レッド/ブラウン; M13A; 2005-04-01~2005-11-01 |
12300-69850-0CA |
US $31.20 |
||
|
9
|
9
12300-75840-0AA BEARING SET,CRANK RED/GREENカラー:レッド/グリーン; M13A; 2005-04-01~2005-11-01 |
12300-75840-0AA |
US $22.26 |
||
|
9
|
9
12300-75840-0BA BEARING SET,CRANK (RED/PINK)カラー:レッド/ブラック; M13A; 2005-04-01~2005-11-01 |
12300-75840-0BA |
from US $18.95 |
||
|
10
|
10
12300-60850-000
Bearing set, thrust
M13A; 2005-04-01~2005-11-01 |
12300-60850-000 |
— | ||
| replacement | |||||
|
10
|
10
12300-78890-000 BEARING SET,CRANK THRUSTM13A; 2005-04-01~2005-11-01 |
12300-78890-000 |
from US $14.36 |
||
|
11
|
11
09283-41001-000
Seal,oil,41x53x6
M13A; 2005-04-01~2005-11-01 |
09283-41001-000 |
— | ||
| replacement | |||||
|
11
|
11
09283-41003-000 SEAL,OIL(41X53X6)M13A; 2005-04-01~2005-11-01 |
09283-41003-000 |
from US $9.32 |
||
|
12
|
12
12222-69G00-000 PLATE,SENSORM13A; 2005-04-01~2005-11-01 |
12222-69G00-000 |
from US $7.34 |
||
|
13
|
13
09139-06051-000 SCREW(6X10)M13A; 2005-04-01~2005-11-01 |
09139-06051-000 |
from US $1.44 |
||
|
14
|
14
09205-05006-000 PIN,SPRING(5X12)M13A; 2005-04-01~2005-11-01 |
09205-05006-000 |
from US $1.69 |
||
|
15
|
15
12610-69G00-000 PULLEY,CRANKSHAFTM13A; 2005-04-01~2005-11-01 |
12610-69G00-000 |
from US $136.16 |
||
|
16
|
16
12619-69G01-000 ボルト,クランクプーリ,12X38.5M13A; 2005-04-01~2005-11-01 |
12619-69G01-000 |
US $9.88 |
||
| replacement | |||||
|
16
|
16
12619-69G10-000 BOLT,CRANK PULLEYM13A; 2005-04-01~2005-11-01 |
12619-69G10-000 |
from US $9.60 |
||
|
17
|
17
12631-54G00-000
Sprocket, Crankshaft Timing
M13A; 2005-04-01~2005-11-01 |
12631-54G00-000 |
— | ||
| replacement | |||||
|
17
|
17
12631-54G11-000 Sprocket, Crankshaft TimingM13A; 2005-04-01~2005-11-01 |
12631-54G11-000 |
from US $33.57 |
||
|
18
|
18
08341-31059-000 KEYKey M13A; 2005-04-01~2005-11-01 |
08341-31059-000 |
from US $1.60 |
||
|
19
|
19
11341-69G10-000 Housing,oil sealM13A; 2005-04-01~2005-11-01 |
11341-69G10-000 |
US $55.19 |
||
| replacements | |||||
|
19
|
19
09283-83002-000 SEAL,OIL(83X97X7)M13A; 2005-04-01~2005-11-01 |
09283-83002-000 |
from US $19.89 |
||
|
19
|
19
11341-69G20-000 HOUSING,OIL SEALM13A; 2005-04-01~2005-11-01 |
11341-69G20-000 |
from US $42.32 |
||
|
20
|
20
09283-83001-000 SEAL,OIL(83X103X8), REARM13A; 2005-04-01~2005-11-01 |
09283-83001-000 |
from US $45.83 |
||
|
21
|
21
09103-06084-000
Bolt
M13A; 2005-04-01~2005-07-01 |
09103-06084-000 |
— | ||
| replacement | |||||
|
21
|
21
09103-06282-000 BOLT(6X25)Bolt, shift cam (6x25) M13A; 2005-04-01~2005-07-01 |
09103-06282-000 |
from US $3.42 |
||
|
21
|
21
09103-06282-000 BOLT(6X25)Bolt, shift cam (6x25) M13A; 2005-07-01~2005-11-01 |
09103-06282-000 |
from US $3.42 |
||
|
22
|
22
09206-06005-000 PIN(4X6X11)M13A; 2005-04-01~2005-11-01 |
09206-06005-000 |
from US $0.99 |
||
|
23
|
23
95141-50F01-000 BELT,WATER PUMP 4PK835M13A; 2005-04-01~2005-11-01 |
95141-50F01-000 |
from US $33.39 |
||
