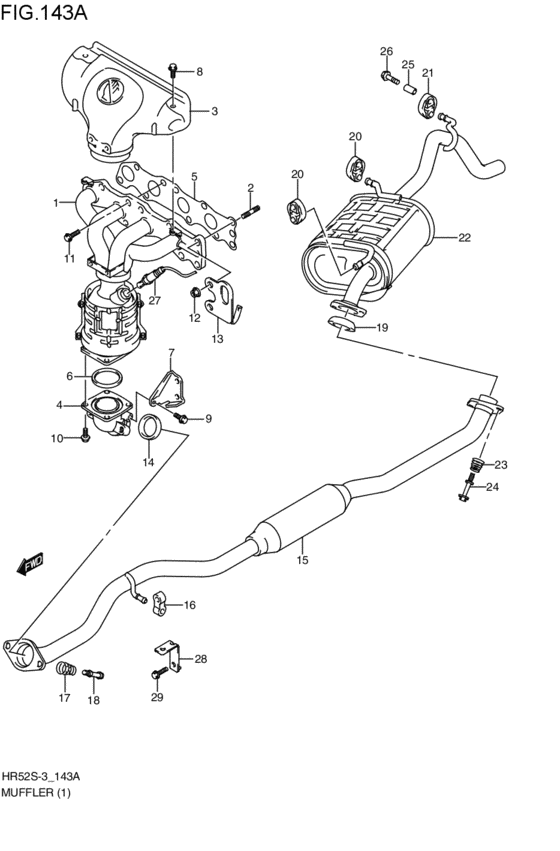

muffler (M13A:2WD; 2005-04-01~2005-11-01) Diagram Suzuki OTHER MODELS
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- grade
- E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14110-70H30-000
Manifold,exh
M13A:2WD; 2005-04-01~2005-11-01 |
14110-70H30-000 |
— | ||
| replacement | |||||
|
1
|
1
14110-70H31-000
MANIFOLD,EXH
M13A:2WD; 2005-04-01~2005-11-01 |
14110-70H31-000 |
— | ||
|
2
|
2
14118-63J00-000 STUD BOLT,EXH MANFM13A:2WD; 2005-04-01~2005-11-01 |
14118-63J00-000 |
from US $1.22 |
||
|
3
|
3
14120-70H02-000 COVER,EXH MANFM13A:2WD; 2005-04-01~2005-11-01 |
14120-70H02-000 |
US $89.60 |
||
|
4
|
4
14137-70H00-000 PIPE,CTLST OUTLETM13A:2WD; 2005-04-01~2005-11-01 |
14137-70H00-000 |
US $281.60 |
||
|
5
|
5
14140-69G01-000
GASKETEXH MANF
M13A:2WD; 2005-04-01~2005-11-01 |
14140-69G01-000 |
— | ||
| replacement | |||||
|
5
|
5
14140-69G02-000 GASKET,EXH MANFM13A:2WD; 2005-04-01~2005-11-01 |
14140-69G02-000 |
from US $13.07 |
||
|
6
|
6
14181-70H00-000 GASKET,EXH MANFM13A:2WD; 2005-04-01~2005-11-01 |
14181-70H00-000 |
from US $9.95 |
||
|
7
|
7
14271-70H00-000 STIFFENER,EXH MANFM13A:2WD; 2005-04-01~2005-11-01 |
14271-70H00-000 |
US $14.94 |
||
|
8
|
8
09103-06186-000
Bolt
M13A:2WD; 2005-04-01~2005-11-01 |
09103-06186-000 |
— | ||
| replacement | |||||
|
8
|
8
01550-06167-000 BoltM13A:2WD; 2005-04-01~2005-11-01 |
01550-06167-000 |
from US $0.68 |
||
|
9
|
9
09103-10324-000 BOLT(10X20)M13A:2WD; 2005-04-01~2005-11-01 |
09103-10324-000 |
from US $2.24 |
||
|
10
|
10
09103-10324-000 BOLT(10X20)M13A:2WD; 2005-04-01~2005-11-01 |
09103-10324-000 |
from US $2.24 |
||
|
11
|
11
09103-10209-000 BOLT(10X23)M13A:2WD; 2005-04-01~2005-11-01 |
09103-10209-000 |
US $2.72 |
||
|
12
|
12
08316-10103-000
Nut
M13A:2WD; 2005-04-01~2005-11-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-1010B-000 NUTM13A:2WD; 2005-04-01~2005-11-01 |
08316-1010B-000 |
from US $0.80 |
||
|
13
|
13
11851-70H01-000 HOOK,ENGINEM13A:2WD; 2005-04-01~2005-11-01 |
11851-70H01-000 |
from US $4.01 |
||
|
14
|
14
14183-65D00-000 RING,SEAL EXH PIPEM13A:2WD; 2005-04-01~2005-11-01 |
14183-65D00-000 |
from US $15.93 |
||
|
15
|
15
14250-70H00-000 PIPE,EXH NO.2M13A:2WD; 2005-04-01~2005-11-01 |
14250-70H00-000 |
US $432.96 |
||
|
16
|
16
14281-71C01-000 MOUNTING,MUFM13A:2WD; 2005-04-01~2005-11-01 |
14281-71C01-000 |
from US $9.63 |
||
|
17
|
17
14492-67D00-000 SPRING,EXH PIPEM13A:2WD; 2005-04-01~2005-11-01 |
14492-67D00-000 |
from US $6.21 |
||
|
18
|
18
09119-10073-000 BOLT(10X65)M13A:2WD; 2005-04-01~2005-11-01 |
09119-10073-000 |
from US $6.21 |
||
|
19
|
19
14183-76A00-000 RING,SEAL EXH PIPEM13A:2WD; 2005-04-01~2005-11-01 |
14183-76A00-000 |
from US $12.62 |
||
|
20
|
20
14281-75F00-000
Mounting
M13A:2WD; 2005-04-01~2005-11-01 |
14281-75F00-000 |
— | ||
| replacement | |||||
|
20
|
20
14281-75F01-000 MOUNTING,MUFM13A:2WD; 2005-04-01~2005-11-01 |
14281-75F01-000 |
from US $4.88 |
||
|
21
|
21
14281-80G00-000 MOUNTING,MUFM13A:2WD; 2005-04-01~2005-11-01 |
14281-80G00-000 |
from US $4.46 |
||
|
22
|
22
14300-70H10-000 マフラM13A:2WD; 2005-04-01~2005-11-01 |
14300-70H10-000 |
US $323.84 |
||
|
23
|
23
14492-67D00-000 SPRING,EXH PIPEM13A:2WD; 2005-04-01~2005-11-01 |
14492-67D00-000 |
from US $6.21 |
||
|
24
|
24
09119-10073-000 BOLT(10X65)M13A:2WD; 2005-04-01~2005-11-01 |
09119-10073-000 |
from US $6.21 |
||
|
25
|
25
09180-08057-000
Spacer
M13A:2WD; 2005-04-01~2005-11-01 |
09180-08057-000 |
— | ||
| replacement | |||||
|
25
|
25
09180-08227-000 SPACER(8.2X12.5X23.5)M13A:2WD; 2005-04-01~2005-11-01 |
09180-08227-000 |
from US $1.04 |
||
|
26
|
26
01551-08353-000
ボルト
M13A:2WD; 2005-04-01~2005-11-01 |
01551-08353-000 |
— | ||
| replacement | |||||
|
26
|
26
01551-0835A-000 BoltM13A:2WD; 2005-04-01~2005-11-01 |
01551-0835A-000 |
US $15.50 |
||
|
27
|
27
18213-57K00-000
センサ,オキシジェン
M13A:2WD; 2005-04-01~2005-11-01 |
18213-57K00-000 |
— | ||
| replacement | |||||
|
27
|
27
18213-57K01-000 SENSOR,OXYGENM13A:2WD; 2005-04-01~2005-11-01 |
18213-57K01-000 |
US $353.60 |
||
|
28
|
28
18214-60J00-000 BRACKET,OXYGEN SENSORM13A:2WD; 2005-04-01~2005-11-01 |
18214-60J00-000 |
US $2.65 |
||
|
29
|
29
01550-06123-000
Bolt
M13A:2WD; 2005-04-01~2005-11-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
29
|
29
01550-0612B-000 BoltBolt, clamp M13A:2WD; 2005-04-01~2005-11-01 |
01550-0612B-000 |
from US $0.76 |
||
|
29
|
29
01550-0612A-000 BoltM13A:2WD; 2005-04-01~2005-11-01 |
01550-0612A-000 |
from US $0.76 |
||
