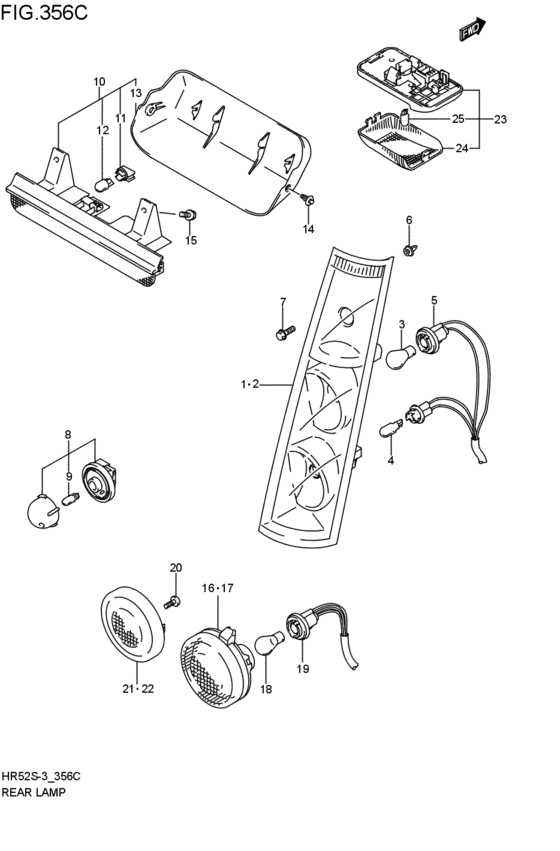

rear lamp (2005-04-01~2005-11-01) Diagram Suzuki OTHER MODELS
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- grade
- E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35650-70H10-000 LAMP UNIT,RR COMB,R2005-04-01~2005-11-01 |
35650-70H10-000 |
US $276 |
||
|
2
|
2
35670-70H10-000 LAMP UNIT,RR COMB,L2005-04-01~2005-11-01 |
35670-70H10-000 |
US $543.09 |
||
|
3
|
3
09471-12186-000 BULB(12V21W,AMBER)アンバー; 2005-04-01~2005-11-01 |
09471-12186-000 |
from US $7.40 |
||
|
4
|
4
09471-12146-000 BULB(12V16W)Bulb (12v18w) 2005-04-01~2005-11-01 |
09471-12146-000 |
from US $3.36 |
||
|
5
|
5
35658-70H00-000 SOCKET&CORD ASSY2005-04-01~2005-11-01 |
35658-70H00-000 |
US $35.33 |
||
|
6
|
6
71812-78F00-000 CLIP2005-04-01~2005-11-01 |
71812-78F00-000 |
from US $1.67 |
||
|
7
|
7
09122-76004-000 SCREW(6X16)2005-04-01~2005-11-01 |
09122-76004-000 |
US $0.96 |
||
|
8
|
8
35910-75F30-000
Lamp assy,license
2005-04-01~2005-11-01 |
35910-75F30-000 |
— | ||
| replacement | |||||
|
8
|
8
35910-75F31-000 Lamp assy,license2005-04-01~2005-11-01 |
35910-75F31-000 |
US $16.54 |
||
|
9
|
9
09471-12216-000 BULB(12V5W)Bulb (12v5w) 2005-04-01~2005-11-01 |
09471-12216-000 |
from US $3.02 |
||
|
10
|
10
35820-76F11-000 LAMP UNIT,HIGH MT STOPE,EX,L; 2005-04-01~2005-11-01 |
35820-76F11-000 |
US $104.51 |
||
|
11
|
11
35818-76F10-000 SOCKETE,EX,L; 2005-04-01~2005-11-01 |
35818-76F10-000 |
from US $7.92 |
||
|
12
|
12
09471-12146-000 BULB(12V16W)Bulb (12v18w) E,EX,L; 2005-04-01~2005-11-01 |
09471-12146-000 |
from US $3.36 |
||
|
13
|
13
35821-76F10-000 COVER,HM STOP LAMPE,EX,L; 2005-04-01~2005-11-01 |
35821-76F10-000 |
US $51.15 |
||
|
14
|
14
09409-06314-5PK CLIP(BLACK)2005-04-01~2005-11-01 |
09409-06314-5PK |
from US $1.52 |
||
|
15
|
15
02162-06123-000
Bolt (6x12)
2005-04-01~2005-11-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
02162-0612B-000 SCREWBolt 2005-04-01~2005-11-01 |
02162-0612B-000 |
from US $0.80 |
||
|
15
|
15
02162-0612A-000 SCREWBolt, bracket 2005-04-01~2005-11-01 |
02162-0612A-000 |
from US $0.79 |
||
|
16
|
16
35710-70H10-000 LAMP UNIT,RR TAIL/STOP,R2005-04-01~2005-11-01 |
35710-70H10-000 |
US $86.11 |
||
|
17
|
17
35750-70H10-000 LAMP UNIT,RR TAIL/STOP,L2005-04-01~2005-11-01 |
35750-70H10-000 |
US $86.11 |
||
|
18
|
18
09471-12083-000 BULB(12V21/5W)STANLEY,49641A; 2005-04-01~2005-11-01 |
09471-12083-000 |
from US $5 |
||
| replacement | |||||
|
18
|
18
09471-12128-000 BULB(12V21/5W,BF141-49642A)STANLEY,49641A; 2005-04-01~2005-11-01 |
09471-12128-000 |
from US $7.20 |
||
|
19
|
19
35718-70H00-000
ソケット/コードアッシ
2005-04-01~2005-11-01 |
35718-70H00-000 |
— | ||
| replacement | |||||
|
19
|
19
35718-70H02-000 SOCKET&CORD ASSY2005-04-01~2005-11-01 |
35718-70H02-000 |
US $34.78 |
||
|
20
|
20
03541-05123-000
Screw
2005-04-01~2005-11-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
20
|
20
03541-0512B-000 SCREW2005-04-01~2005-11-01 |
03541-0512B-000 |
from US $0.76 |
||
|
21
|
21
35950-70H01-000 REFLECTOR ASSY,REAR R2005-04-01~2005-11-01 |
35950-70H01-000 |
US $72.13 |
||
|
22
|
22
35970-70H01-000 REFLECTOR ASSY,REAR,L2005-04-01~2005-11-01 |
35970-70H01-000 |
US $72.13 |
||
|
23
|
23
36210-74F02-6GS LAMP ASSY,RR ROOMグレ-; 2005-04-01~2005-11-01 |
36210-74F02-6GS |
from US $25.25 |
||
|
24
|
24
36212-74F00-000 LENS,ROOM LAMP2005-04-01~2005-11-01 |
36212-74F00-000 |
from US $4.05 |
||
|
25
|
25
09471-12216-000 BULB(12V5W)Bulb (12v5w) 2005-04-01~2005-11-01 |
09471-12216-000 |
from US $3.02 |
||
