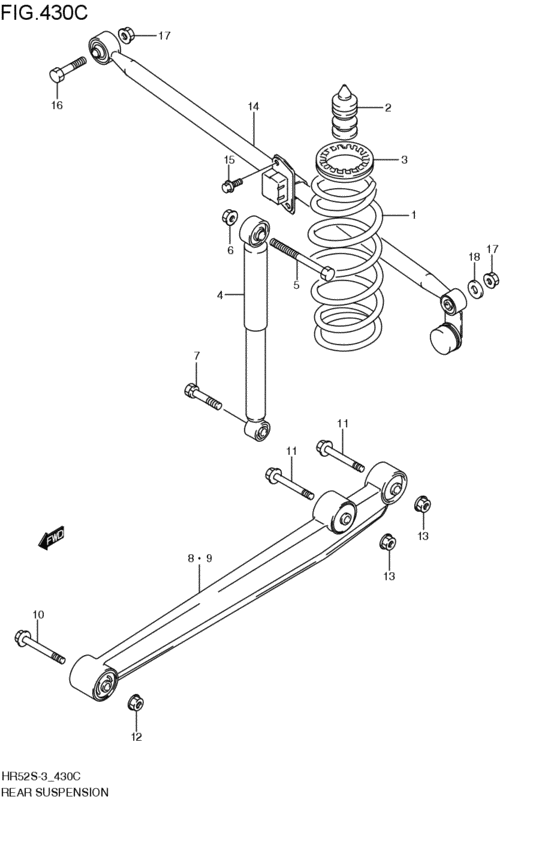

rear suspension (2005-04-01~2005-11-01) Diagram Suzuki OTHER MODELS
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- grade
- E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41311-70H20-000 SPRING,REAR COIL2WD; 2005-04-01~2005-11-01 |
41311-70H20-000 |
US $114.82 |
||
|
2
|
2
42250-60J00-000 STOPPER,RR BUMP2WD; 2005-04-01~2005-11-01 |
42250-60J00-000 |
from US $24.48 |
||
|
3
|
3
41341-79A00-000 SEAT,REAR SPRING UPPER2005-04-01~2005-11-01 |
41341-79A00-000 |
from US $6.10 |
||
|
4
|
4
41800-70H20-000 ABSORBER ASSY,REAR SHOCK2WD; 2005-04-01~2005-11-01 |
41800-70H20-000 |
US $126.59 |
||
|
5
|
5
41981-76G01-000 BOLT,RR SHK ABSORBER UPR2005-04-01~2005-11-01 |
41981-76G01-000 |
US $8.64 |
||
|
6
|
6
08316-10123-000
Nut
2005-04-01~2005-11-01 |
08316-10123-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1012A-000 NUT2005-04-01~2005-11-01 |
08316-1012A-000 |
from US $0.96 |
||
|
7
|
7
09117-12014-000 BOLT(12X57)2005-04-01~2005-11-01 |
09117-12014-000 |
US $37.20 |
||
|
8
|
8
46200-70H00-000 ARM ASSY,RR TRAILING2005-09-01~2005-11-01 |
46200-70H00-000 |
from US $104.92 |
||
|
8
|
8
46201-70H00-000 ARM ASSYREAR TRAILING2005-04-01~2005-08-01 |
46201-70H00-000 |
US $104.92 |
||
| replacements | |||||
|
8
|
8
02162-0620C-000 SCREW2005-04-01~2005-08-01 |
02162-0620C-000 |
from US $0.83 |
||
|
8
|
8
46200-70H00-000 ARM ASSY,RR TRAILING2005-04-01~2005-08-01 |
46200-70H00-000 |
from US $104.92 |
||
|
8
|
8
02162-06203-000
Bolt
2005-04-01~2005-08-01 |
02162-06203-000 |
— | ||
|
9
|
9
46200-70H00-000 ARM ASSY,RR TRAILING2005-09-01~2005-11-01 |
46200-70H00-000 |
from US $104.92 |
||
|
9
|
9
46202-70H00-000 ARM ASSYREAR TRAILING2005-04-01~2005-08-01 |
46202-70H00-000 |
US $104.92 |
||
| replacements | |||||
|
9
|
9
02162-0620C-000 SCREW2005-04-01~2005-08-01 |
02162-0620C-000 |
from US $0.83 |
||
|
9
|
9
46200-70H00-000 ARM ASSY,RR TRAILING2005-04-01~2005-08-01 |
46200-70H00-000 |
from US $104.92 |
||
|
9
|
9
02162-06203-000
Bolt
2005-04-01~2005-08-01 |
02162-06203-000 |
— | ||
|
10
|
10
09103-12044-000 BOLT(12X87)2005-04-01~2005-11-01 |
09103-12044-000 |
from US $3.02 |
||
|
11
|
11
09103-12044-000 BOLT(12X87)2005-04-01~2005-11-01 |
09103-12044-000 |
from US $3.02 |
||
|
12
|
12
08316-10123-000
Nut
2005-04-01~2005-11-01 |
08316-10123-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-1012A-000 NUT2005-04-01~2005-11-01 |
08316-1012A-000 |
from US $0.96 |
||
|
13
|
13
46292-60J00-000
ナット
2005-04-01~2005-11-01 |
46292-60J00-000 |
— | ||
| replacement | |||||
|
13
|
13
09159-12068-000 NUT2005-04-01~2005-11-01 |
09159-12068-000 |
from US $1.49 |
||
|
14
|
14
46300-83E00-000
Rod assy,lateral
2WD; 2005-04-01~2005-11-01 |
46300-83E00-000 |
— | ||
| replacement | |||||
|
14
|
14
46300-83E01-000 ROD ASSY,LATERAL2WD; 2005-04-01~2005-11-01 |
46300-83E01-000 |
US $92.37 |
||
|
16
|
16
09103-12051-000 BOLT(12X50)2005-04-01~2005-11-01 |
09103-12051-000 |
from US $2.56 |
||
|
17
|
17
08316-10123-000
Nut
2005-04-01~2005-11-01 |
08316-10123-000 |
— | ||
| replacement | |||||
|
17
|
17
08316-1012A-000 NUT2005-04-01~2005-11-01 |
08316-1012A-000 |
from US $0.96 |
||
|
18
|
18
09164-12017-000 WASHER2005-04-01~2005-11-01 |
09164-12017-000 |
from US $1.44 |
||
