Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 51410-70HB0-000 PIPE,MA PRI TO UNIT 2006-05-01~	51410-70HB0-000	—
2	2 51420-70HB0-000 PIPE,MA SEC TO UNIT 2006-05-01~	51420-70HB0-000	—
3	3 51430-70HB0-000 PIPE,UNIT TO FR BK HOSE R 2006-05-01~	51430-70HB0-000	—
4	4 51440-70HB0-000 PIPE,UNIT TO FR BK HOSE L 2006-05-01~	51440-70HB0-000	—
5	5 51450-70HB0-000 PIPE,UNIT TO JOINT R 2006-05-01~	51450-70HB0-000	—
6	6 51460-70HB0-000 PIPE,UNIT TO JOINT L 2006-05-01~	51460-70HB0-000	—
7	7 51550-70H00-000 HOSE,FR DISC FLEXIBLE 2006-05-01~	51550-70H00-000	US $48.21
8	8 51751-76G00-000 CLAMP,BK PIPE DASH 2006-05-01~	51751-76G00-000	from US $1.60
9	9 51752-70B00-000 CLAMP,BK PIPE 2006-05-01~	51752-70B00-000	US $1.60
10	10 51771-60B00-000 CLAMP,BRAKE PIPE 2006-05-01~	51771-60B00-000	US $1.60
11	11 09161-10009-000 WASHER(10X15X1.5) Lock washer 2006-05-01~	09161-10009-000	from US $1.06
12	12 09360-10026-000 Union bolt 2006-05-01~	09360-10026-000	from US $2.08
13	13 09383-13003-000 E-RING 2006-05-01~	09383-13003-000	from US $1.46
14	14 51630-82040-000 JOINT,4WAY BRAKE 2006-05-01~	51630-82040-000	from US $17.03
15	15 02162-0625A-000 SCREW 2006-05-01~	02162-0625A-000	from US $0.76
16	16 51470-80GA0-000 PIPE,JOINT TO RR BK HOSE R 2006-05-01~	51470-80GA0-000	US $11.11
17	17 51480-80GA0-000 PIPE,JOINT TO RR BK HOSE L 2006-05-01~	51480-80GA0-000	US $15.42
18	18 51510-70H00-000 PIPE,RR BK HOSE TO WHL CYL R 2006-05-01~	51510-70H00-000	—
19	19 51520-70H00-000 PIPE,RR BK HOSE TO WHL CYL L 2006-05-01~	51520-70H00-000	US $10.49
20	20 51570-76G00-000 HOSE,RR BRAKE FLEXIBLE 2006-05-01~	51570-76G00-000	from US $15.12

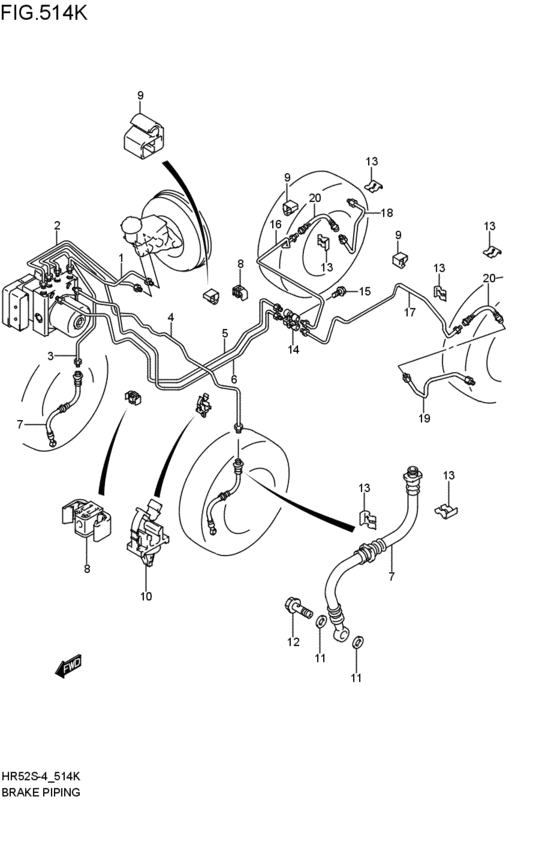

brakes piping (2006-05-01~) Diagram Suzuki OTHER MODELS Japan 485721-67921

brakes piping (2006-05-01~) Diagram Suzuki OTHER MODELS Japan 485721-67921
