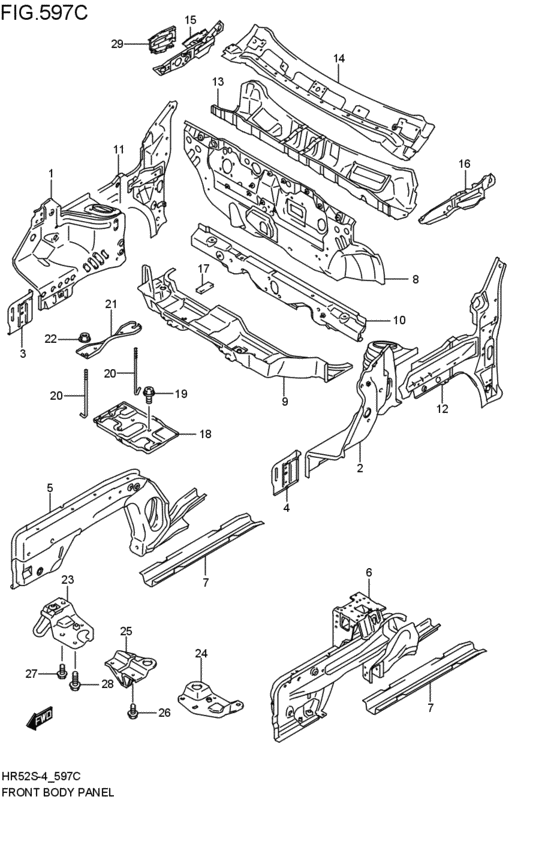

front body panel (2006-05-01~) Diagram Suzuki OTHER MODELS
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- grade
- E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58310-70H01-000
PANEL,FENDER APRON,R
2006-05-01~ |
58310-70H01-000 |
— | ||
|
2
|
2
58410-70H01-000
PANEL,FENDER APRON,L
2006-05-01~ |
58410-70H01-000 |
— | ||
|
3
|
3
58318-70H00-000 EXTENSION,APRON FR,R2006-05-01~ |
58318-70H00-000 |
US $17.81 |
||
|
4
|
4
58418-70H00-000 EXTENSION,APRON FR,L2006-05-01~ |
58418-70H00-000 |
US $17.81 |
||
|
5
|
5
58600-60J00-000
MEMBER,APRON SIDE,R
2006-05-01~ |
58600-60J00-000 |
— | ||
|
6
|
6
58700-60J00-000
MEMBER,APRON SIDE,L
2006-05-01~ |
58700-60J00-000 |
— | ||
|
7
|
7
58631-80G00-000
MEMBER,FL SIDE
2006-05-01~ |
58631-80G00-000 |
— | ||
|
8
|
8
59100-70H20-000
PANEL,DASH
2006-05-01~ |
59100-70H20-000 |
— | ||
|
9
|
9
59210-70H20-000
CROSSMEMBER,DASH LOWER
2006-05-01~ |
59210-70H20-000 |
— | ||
|
10
|
10
59221-80G00-000
CROSSMEMBER,DASH,UPPER
2006-05-01~ |
59221-80G00-000 |
— | ||
|
11
|
11
59230-70H00-000
PANEL,DASH SIDE,R
2006-05-01~ |
59230-70H00-000 |
— | ||
|
12
|
12
59280-70H00-000
PANEL,DASH SIDE,L
2006-05-01~ |
59280-70H00-000 |
— | ||
|
13
|
13
59300-80G00-000
PANEL,COWL UPPER
2006-05-01~ |
59300-80G00-000 |
— | ||
|
14
|
14
59710-80G01-000
PANEL,COWL TOP
2006-05-01~ |
59710-80G01-000 |
— | ||
|
15
|
15
59720-70H00-000
パネル,カウリングサイド,ライト
2006-05-01~ |
59720-70H00-000 |
— | ||
|
16
|
16
59771-80G01-000
PANEL,COWL SIDE,L
2006-05-01~ |
59771-80G01-000 |
— | ||
|
17
|
17
83921-82C00-000 PAD2006-05-01~ |
83921-82C00-000 |
US $4.16 |
||
|
18
|
18
72521-80G00-000 BRACKET,BATTERY2006-05-01~ |
72521-80G00-000 |
US $48.80 |
||
|
19
|
19
01550-0612A-000 Bolt2006-05-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
20
|
20
63461-80000-000 BOLT,BATTERY2006-05-01~ |
63461-80000-000 |
from US $2.72 |
||
|
21
|
21
72511-78000-000
Band, battery
2006-05-01~ |
72511-78000-000 |
— | ||
| replacement | |||||
|
21
|
21
72511-71L00-000 BAND,BATTERY2006-05-01~ |
72511-71L00-000 |
from US $5.81 |
||
|
22
|
22
08316-1005A-000 NUT2006-05-01~ |
08316-1005A-000 |
from US $0.96 |
||
|
23
|
23
72360-80G01-000 BRACKET,STABILIZER,R2006-05-01~ |
72360-80G01-000 |
US $65.87 |
||
|
24
|
24
72370-80G00-000 BRACKET,STABILIZER,L2006-05-01~ |
72370-80G00-000 |
US $55.94 |
||
|
25
|
25
72350-70H10-000 BRACKET,JACKING FR2006-05-01~ |
72350-70H10-000 |
US $32.38 |
||
|
26
|
26
01551-0816C-000 Bolt2006-05-01~ |
01551-0816C-000 |
from US $0.96 |
||
|
27
|
27
01551-0816C-000 Bolt2006-05-01~ |
01551-0816C-000 |
from US $0.96 |
||
|
28
|
28
01551-1025A-000 Bolt2006-05-01~ |
01551-1025A-000 |
US $1.12 |
||
|
29
|
29
59723-70H00-000
リンフォースメント,カウリングサイド,ライト
2006-05-01~ |
59723-70H00-000 |
— | ||
