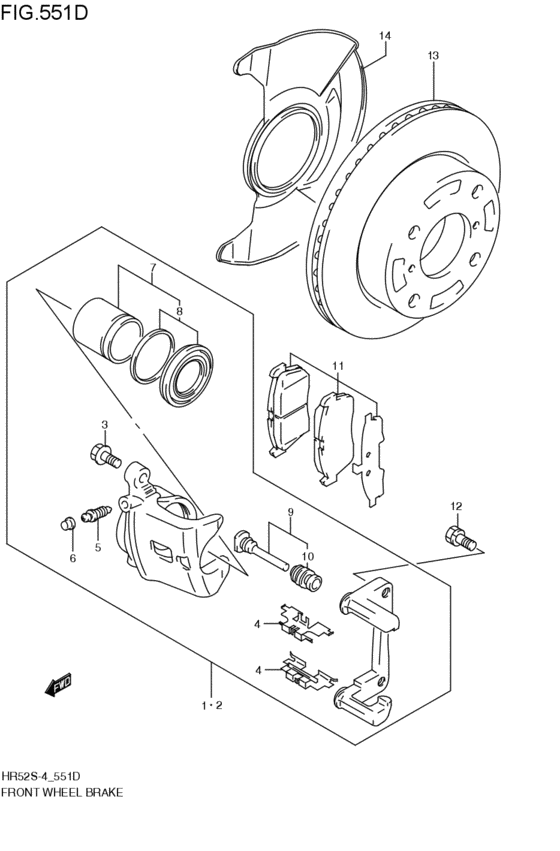

front wheel brakes (2006-05-01~) Diagram Suzuki OTHER MODELS
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- grade
- E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55101-80G04-999
キャリパ,フロントブレーキ,ライト
2006-05-01~ |
55101-80G04-999 |
— | ||
| replacement | |||||
|
1
|
1
55101-80G06-999 CALIPER,FR BRAKE,R2006-05-01~ |
55101-80G06-999 |
US $720.72 |
||
|
2
|
2
55102-80G04-999
キャリパ,フロントブレーキ,レフト
2006-05-01~ |
55102-80G04-999 |
— | ||
| replacement | |||||
|
2
|
2
55102-80G06-999 CALIPER,FR BRAKE,L2006-05-01~ |
55102-80G06-999 |
US $720.72 |
||
|
3
|
3
55206-78452-000 BOLT,PIN2006-05-01~ |
55206-78452-000 |
from US $3.13 |
||
|
4
|
4
55234-76G10-000 SPRING,PAD2006-05-01~ |
55234-76G10-000 |
from US $4.86 |
||
|
5
|
5
55151-78451-000 PLUG,BLEEDER2006-05-01~ |
55151-78451-000 |
from US $4.32 |
||
|
6
|
6
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug 2006-05-01~ |
55156-66310-000 |
from US $1.98 |
||
|
7
|
7
55840-76G00-000
PISTON / SEAL SET
2006-05-01~ |
55840-76G00-000 |
— | ||
| replacement | |||||
|
7
|
7
55840-76G01-000 PISTON / SEAL SET2006-05-01~ |
55840-76G01-000 |
from US $23.56 |
||
|
8
|
8
55830-76G00-000
SEAL SET,PISTON
2006-05-01~ |
55830-76G00-000 |
— | ||
| replacement | |||||
|
8
|
8
55830-76G01-000 SEAL SET,PISTON2006-05-01~ |
55830-76G01-000 |
from US $11.55 |
||
|
9
|
9
55850-76G00-000
PIN / BOOT SET
2006-05-01~ |
55850-76G00-000 |
— | ||
| replacement | |||||
|
9
|
9
55850-76G01-000 PIN / BOOT SET2006-05-01~ |
55850-76G01-000 |
from US $21.67 |
||
|
10
|
10
55201-60A00-000 BOOT,PIN2006-05-01~ |
55201-60A00-000 |
from US $2.56 |
||
|
11
|
11
55810-80G13-000 PAD SET,DISC BRAKE2006-05-01~ |
55810-80G13-000 |
from US $75.40 |
||
|
12
|
12
09117-12006-000 BOLT(12X27)2006-05-01~ |
09117-12006-000 |
from US $1.51 |
||
|
13
|
13
55311-80G02-000
DISC FRT BRAKE IGNIS
2006-05-01~ |
55311-80G02-000 |
— | ||
| replacement | |||||
|
13
|
13
55311-80G03-000 DISC,FR BRAKE2006-05-01~ |
55311-80G03-000 |
from US $71.30 |
||
|
14
|
14
55321-60B40-000 COVER,BRAKE DISC DUST2006-05-01~ |
55321-60B40-000 |
US $80.80 |
||
