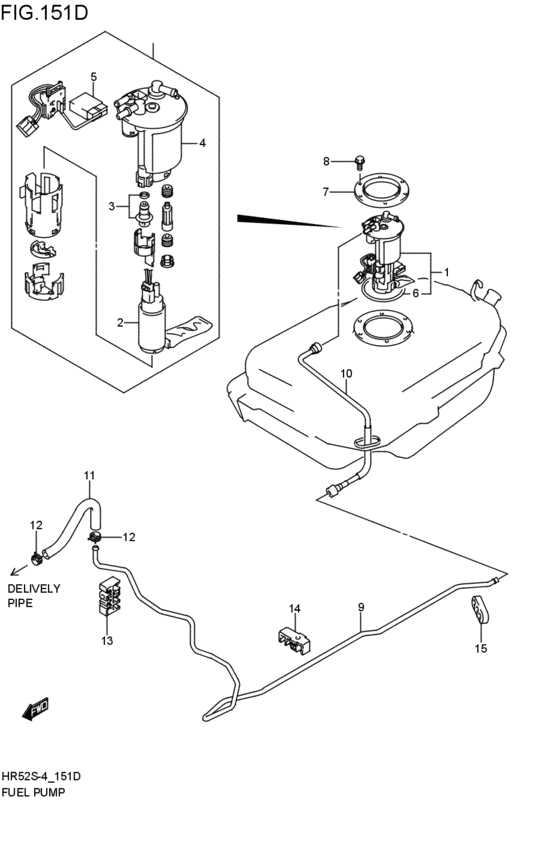

Fuel Pump (2006-05-01~) Diagram Suzuki OTHER MODELS
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- grade
- E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-78852-000 PUMP SET,FUEL2006-05-01~ |
15100-78852-000 |
from US $579.89 |
||
|
2
|
2
15110-65G00-000 PUMP ASSY,FUEL2006-05-01~ |
15110-65G00-000 |
from US $357.50 |
||
|
3
|
3
15610-76G50-000 REGULATOR ASSY,FUEL2006-05-01~ |
15610-76G50-000 |
from US $51.37 |
||
|
4
|
4
15310-78F01-000 FILTER ASSY,FUEL2006-05-01~ |
15310-78F01-000 |
from US $169 |
||
|
5
|
5
34810-78F00-000 GAUGE ASSY,LEVEL2006-05-01~ |
34810-78F00-000 |
from US $44.87 |
||
|
6
|
6
15111-50G01-000 GASKET,FUEL PUMP2006-05-01~ |
15111-50G01-000 |
US $4.82 |
||
|
7
|
7
15121-50G00-000 PLATE,FUEL PUMP2006-05-01~ |
15121-50G00-000 |
from US $6.26 |
||
|
8
|
8
02162-0610A-000 SCREW2006-05-01~ |
02162-0610A-000 |
from US $0.64 |
||
|
9
|
9
15811-80G00-000 PIPE,FUEL2006-05-01~ |
15811-80G00-000 |
US $39.38 |
||
|
10
|
10
15812-78F01-000 PIPE,FUEL PUMP TO PIPEポンプツーパイプ; 2006-05-01~ |
15812-78F01-000 |
US $84.80 |
||
|
11
|
11
15815-80G00-000 HOSE,FUEL PIPE TO ENGパイプツーエンジン; 2006-05-01~ |
15815-80G00-000 |
US $36.25 |
||
|
12
|
12
09401-13419-000 CLIP2006-05-01~ |
09401-13419-000 |
from US $1.76 |
||
|
13
|
13
15882-80G00-000 CLAMP,FUEL PIPE2006-05-01~ |
15882-80G00-000 |
US $3.09 |
||
|
14
|
14
15893-83G01-000 CLAMP,FUEL PIPE2006-05-01~ |
15893-83G01-000 |
US $1.52 |
||
|
15
|
15
15438-76G00-000 CUSHION,FUEL PIPE2006-05-01~ |
15438-76G00-000 |
US $6.69 |
