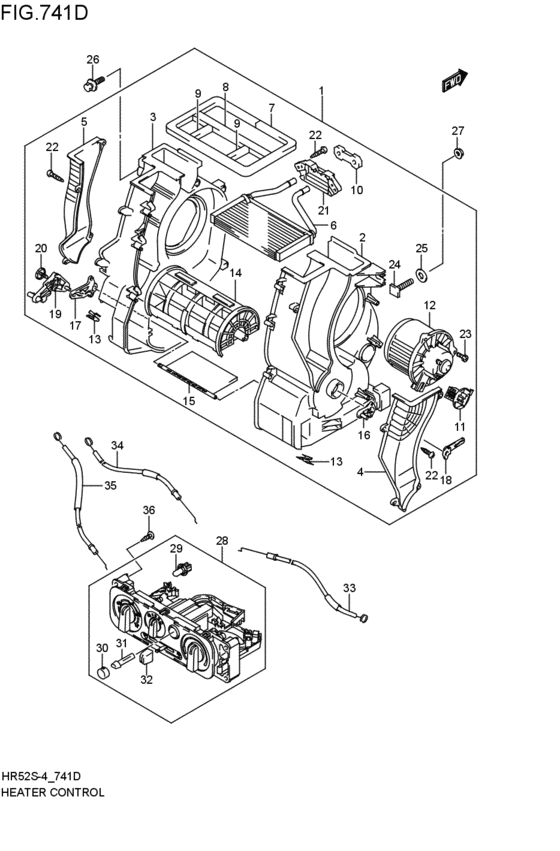

heater control (2006-05-01~) Diagram Suzuki OTHER MODELS
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M13A
- drive
- 2WD
- grade
- E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74100-80G90-000
ヒータユニット
E; 2006-05-01~ |
74100-80G90-000 |
— | ||
|
2
|
2
74111-80G21-000
CASE,HEATER,R
2006-05-01~ |
74111-80G21-000 |
— | ||
|
3
|
3
74112-80G21-000 CASE,HEATER,R2006-05-01~ |
74112-80G21-000 |
US $53.73 |
||
|
4
|
4
74113-80G20-000
COVER,R
2006-05-01~ |
74113-80G20-000 |
— | ||
|
5
|
5
74114-80G20-000
COVER,L
2006-05-01~ |
74114-80G20-000 |
— | ||
|
6
|
6
74120-80G00-000 CORE,HEATER2006-05-01~ |
74120-80G00-000 |
from US $404.80 |
||
|
7
|
7
74116-78F00-000 PACKING2006-05-01~ |
74116-78F00-000 |
US $7.51 |
||
|
8
|
8
74117-78F00-000 PACKING2006-05-01~ |
74117-78F00-000 |
US $6.96 |
||
|
9
|
9
74119-80G20-000 PACKING2006-05-01~ |
74119-80G20-000 |
US $8.24 |
||
|
10
|
10
74118-80G00-000 PACKING2006-05-01~ |
74118-80G00-000 |
US $6.96 |
||
|
12
|
12
74150-78F00-000 MOTOR ASSY,FAN2006-05-01~ |
74150-78F00-000 |
US $345.92 |
||
|
14
|
14
74171-80G20-000 DOOR ASSY,MODE2006-05-01~ |
74171-80G20-000 |
US $49.68 |
||
|
15
|
15
74172-80G90-000
ドアアッシ,エアミクスチャ
E; 2006-05-01~ |
74172-80G90-000 |
— | ||
|
18
|
18
74181-80G80-000
レバー,エアミクスチャ
E; 2006-05-01~ |
74181-80G80-000 |
— | ||
|
21
|
21
74191-78F00-000 BRACKET2006-05-01~ |
74191-78F00-000 |
US $8.24 |
||
|
22
|
22
03511-0416A-000 SCREW2006-05-01~ |
03511-0416A-000 |
from US $2.45 |
||
|
23
|
23
74135-82000-000 SCREW,MOTOR2006-05-01~ |
74135-82000-000 |
US $1.73 |
||
|
24
|
24
74115-65D00-000 Bolt2006-05-01~ |
74115-65D00-000 |
US $3.61 |
||
|
25
|
25
74119-78F00-000 WASHER,RBR2006-05-01~ |
74119-78F00-000 |
US $3.53 |
||
|
26
|
26
09113-06006-000 BOLT(6X20)2006-05-01~ |
09113-06006-000 |
US $12.50 |
||
| replacement | |||||
|
26
|
26
09113-06014-000 BOLT(6X20)2006-05-01~ |
09113-06014-000 |
US $14.40 |
||
|
27
|
27
08361-2506A-000 NUT2006-05-01~ |
08361-2506A-000 |
US $0.80 |
||
